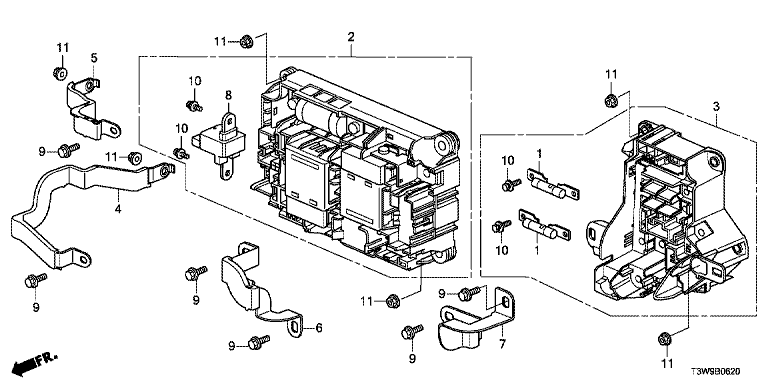

BUSBAR ASSY., JUNCTION BOARD INPUT (NEGATIVE)

【1】1C330RYXA01 FUSE, HIGH VOLTAGE

【2】1E1005Y3003 BOX ASSY-JUNCTION

【3】1E2005K1N01 BOARD ASSY., SUB JUNCTION

【4】1E4205K1N00 BUSBAR ASSY., JUNCTION BOARD INPUT (POSITIVE)

【8】1K5305Y3004 SENSOR ASSY, BATTERY CURRENT

【9】901205Y3000 BOLT,FLANGE,6X14

【10】934010501208 BOLT-WASHER,5X12

【11】9405006080 NUT,FLANGE,6MM
