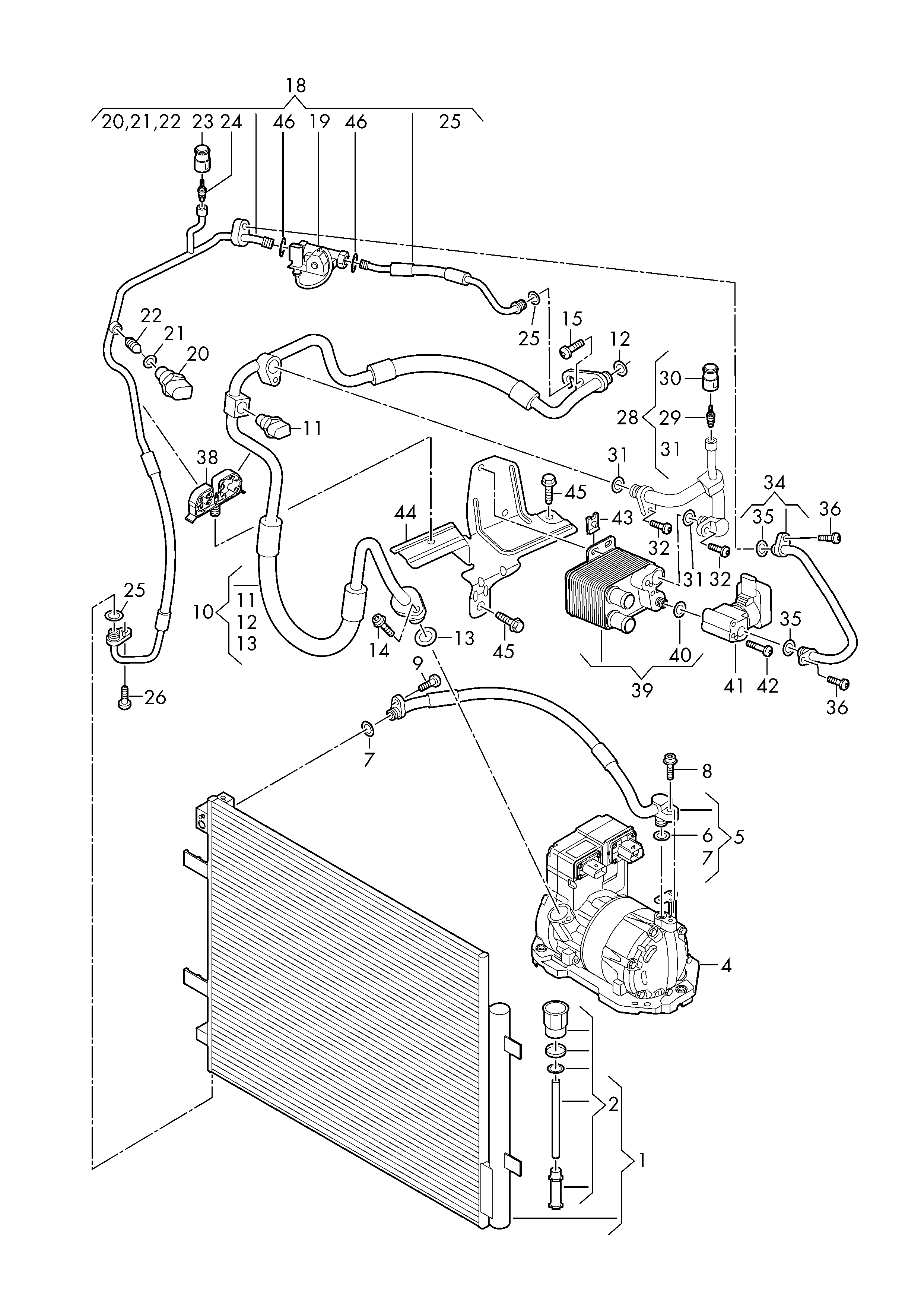

VALVE,EXPANSION

【38】1EA820317 CLAMP

【44】1ED816087 Bracket, heat exchanger

【5】1ED816721 Coolant hose Compressor-refrigerant Condenser)

【5】1ED816721A Coolant hose Compressor-refrigerant Condenser)

【34】1ED816732 Pipe-refrigerant

【28】1ED820739 Pipe-refrigerant

【18】1ED820741D COOLENT HOSE-FRONT-AUDI-Q7/Q8

【30】3C0820231 Cap, guard

【23】3C0820581 Cap, guard

【6】3D0260749C Seal ring

【29】3D0820855A Valve core

【40】4D0260749B SEAL 40X55X8 ASW LD ACM

【7】4E0260749A SEAL 40X55X8 ASW LD ACM

【31】4E0260749B SEAL 40X55X8 ASW LD ACM

【20】5QD959126 COOLENT HOSE-FRONT-AUDI-Q7/Q8

【46】8A0260749AK O RING

【22】8A0820855AA Valve high voltage switch safety switch

【13】8E0260749C SEAL 40X55X8 ASW LD ACM

【29】8E0820855 Valve core

【19】8RD260696 Valve, shutting down

【26】N10347103 Bolt (combination), hexagon

【36】N10347204 Bolt, self-locking

【14】N10414402 BOLT

【42】N10438202 Bolt, hexagon

【45】N10805001 BOLT

【15】N91096801 BOLT

【43】WHT008829 Nut-insert
