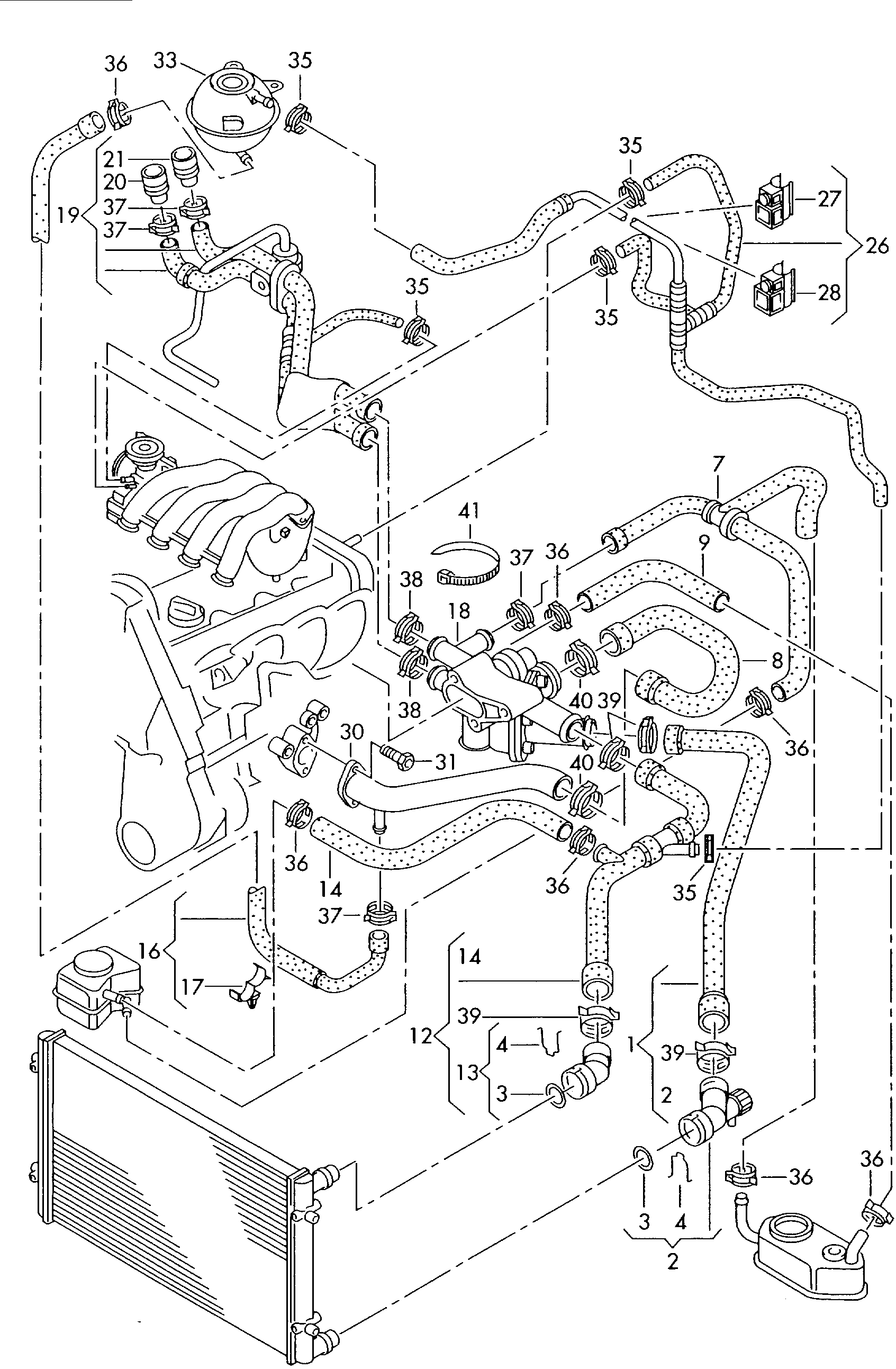

SCHLAUCH

【30】06A122481 Coolant pipe

【7】1J0121058G Coolant hose (Coolant regulator housing Oil cooler)

【8】1J0121063D Coolant hose (Coolant regulator housing Tube, cooling)

【17】1J0121093AR BRACKET-ENGINE SUPP*

【27】1J0121093G BRACKET-ENGINE SUPP*

【14】1J0121096S Coolant hose (Oil cooler attachment) Yes.

【4】1J0121142 Spring, detent

【1】1J0122051AL Coolant hose (Coolant regulator housing Cooler)

【16】1J0122109AJ Coolant hose Reservoir balancer Tube, coolant)

【13】1J0122291 COUPLPIECE

【20】1J0122291D RADIATOR HOSE CNCTNG CLIP

【21】3B0122291B RADIATOR HOSE CNCTNG CLIP

【2】6Q0122291F RADIATOR HOSE CNCTNG CLIP

【41】N0209022 Cable strap

【35】N10292201 Clip-band

【36】N90655501 Clip-band

【37】N90655601 Clip-band

【38】N90655701 Clip-band

【39】N90655801 Clip-band

【3】N90765301 SEAL

【31】N90945001 Bolt, hexagon shoulder w/insert
