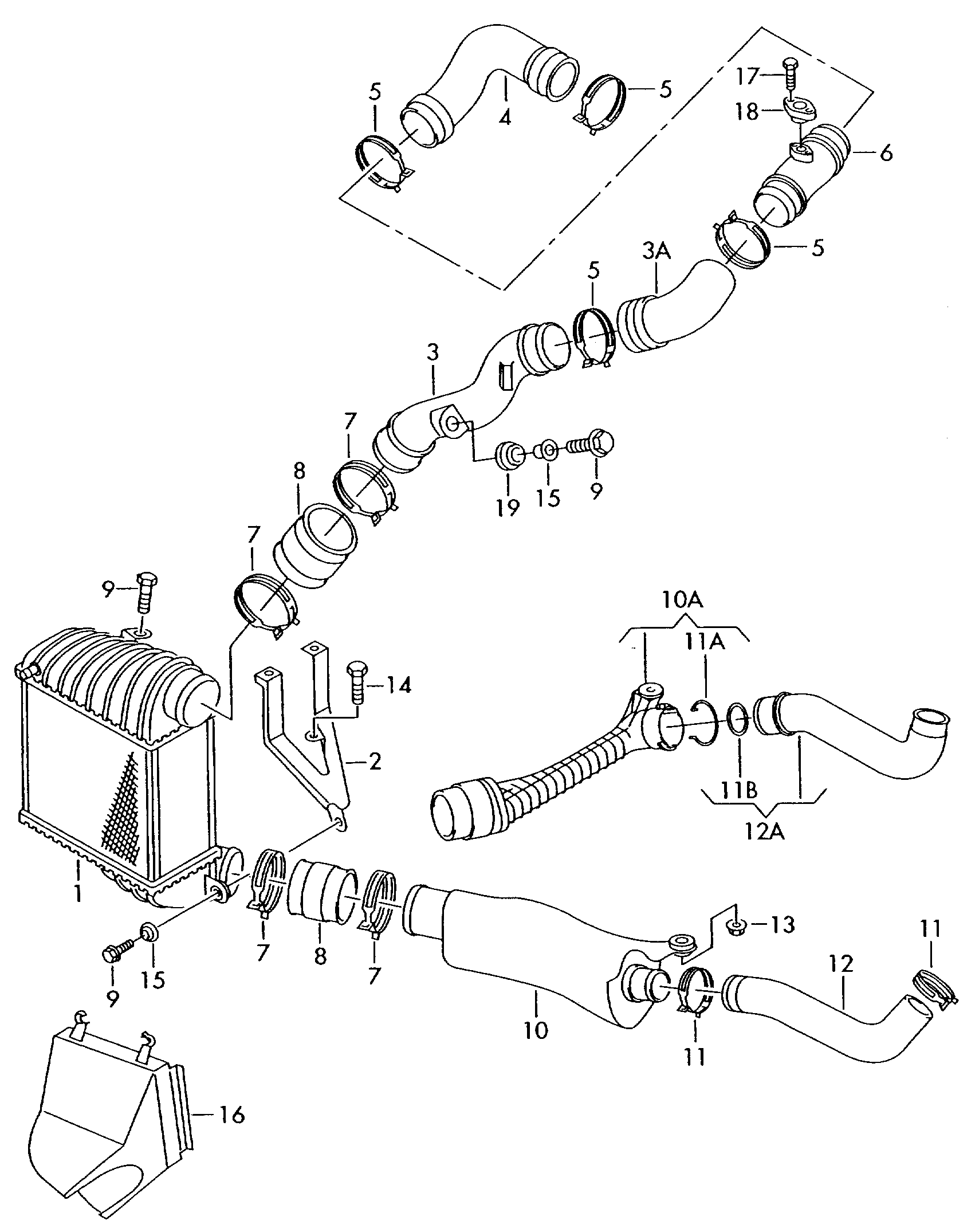

HOSE-CONNECTION

【18】038906051 SENSOR, MAP

【1】1C0145803A Intercooler-w204/w204 Cooperate as needed:

【2】1C0145808A Bracket Intercooler-w204/w204

【11】1H0145917A Clip-band

【11】1J0145769F Clip

【11】1J0145769G Clip

【8】1J0145834A HOSE

【18】1J0145863 SPARE PART

【5】3C0145117B SEAL 40X55X8 ASW LD ACM

【7】3C0145117F SEAL 40X55X8 ASW LD ACM

【19】6N0129734 Spacer

【15】867129669 GROMMET

【14】N10082912 Bolt, self-lock, hex

【17】N90172001 SCREW

【13】N90175205 NUT

【7】N90656201 Clip-band

【5】N90781601 Clip-band
