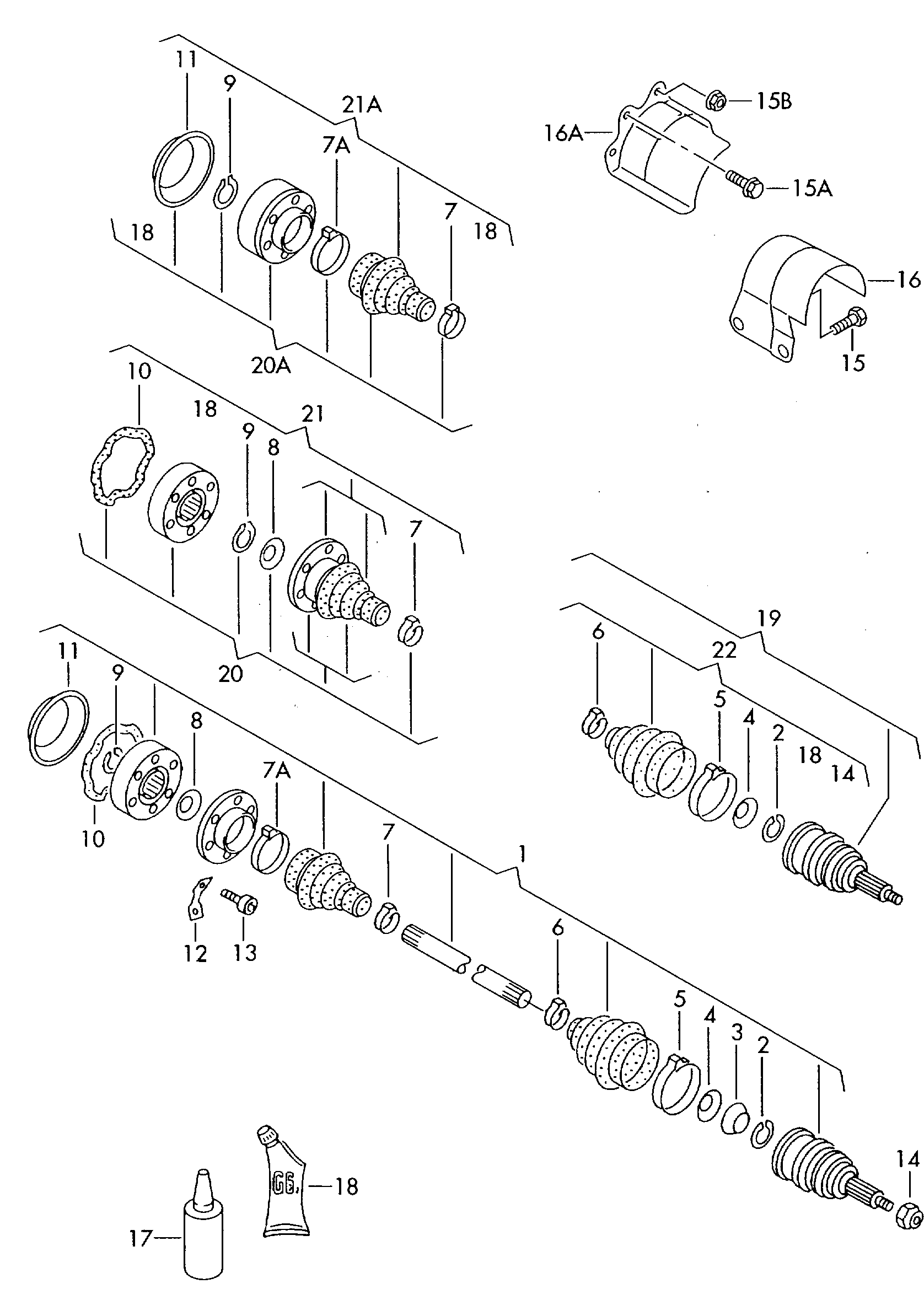

Swing shaft with cv joint

【8】113501327A WASHER

【9】113517279 Ring, snap

【2】171407297C Ring, snap

【10】1H0407309A WASHER, SEALING 20MM

【1】1J0407271FN Band f joint Shaft, half swing

【1】1J0407271Q Band f joint Shaft, half swing

【1】1J0407272 Band f joint Shaft, half swing

【1】1J0407272BL Band syncro Weight-built Shaft, half swing

【16】1J0407721C HEAT SHIELD

【19】1J0498099A C.V.JOINT KIT

【20】1J0498103A JOINT KIT/DRIVE SHFT/A3/SKD

【21】1J0498201 BELLOW SET DRIVE SHAFT-TOUAREG

【21】1J0498201A BELLOW SET DRIVE SHAFT-TOUAREG

【12】1K0407357B Spg plate

【12】1K0407357C Spg plate

【20】1K0498103 JOINT KIT/DRIVE SHFT/A3/SKD

【20A】1K0498103A JOINT KIT/DRIVE SHFT/A3/SKD

【20A】1K0498103AX JOINT KIT/DRIVE SHFT/A3/SKD

【20】1K0498103B Joint assy Protector, fitting & Grease

【20】1K0498103X JOINT KIT/DRIVE SHFT/A3/SKD

【21】1K0498201 BELLOW SET DRIVE SHAFT-TOUAREG

【21】1K0498201B Boot, band mounting Piece and grease Cooperate as needed:

【22】1K0498203 BELOW SET/DRIV SHAFTQ7/TOUREG

【22】1K0498203B BELLOW KIT/AUDI A3-TT/SEAT

【4】321407287 Spg, disc

【3】321407295A Ring, thrust

【1】357407271R Band f joint Shaft, half swing

【19】357498099E C.V.JOINT KIT

【20】357498104 Joint assy Protector, fitting & Grease

【22】3B0498203E BELLOW KIT/AUDI A3-TT/SEAT

【4】441407287 Spg, disc

【3】441407295 Ring, thrust

【2】441407297 RING-SNAP

【12】443407357B Spg plate

【10】8D0407309 WASHER, SEALING 20MM

【17】D454300A2 Sealant

【18】G052133A3 Grease, high temperature

【9】N0123741 RING-SNAP

【15】N10011103 Bolt, hex

【6】N10609101 BAND-BOOT,DRIVE SHAFT OUTER

【7】N90442501 BAND-BOOT,DRIVE SHAFT OUTER

【5】N90470601 BAND-BOOT,DRIVE SHAFT OUTER

【14】N90587602 Nut, self-locking

【5】N90630701 BAND-BOOT,DRIVE SHAFT OUTER

【5】N90772401 BAND-BOOT,DRIVE SHAFT OUTER

【13】N90991102 BOLT

【13】N91108201 BOLT
