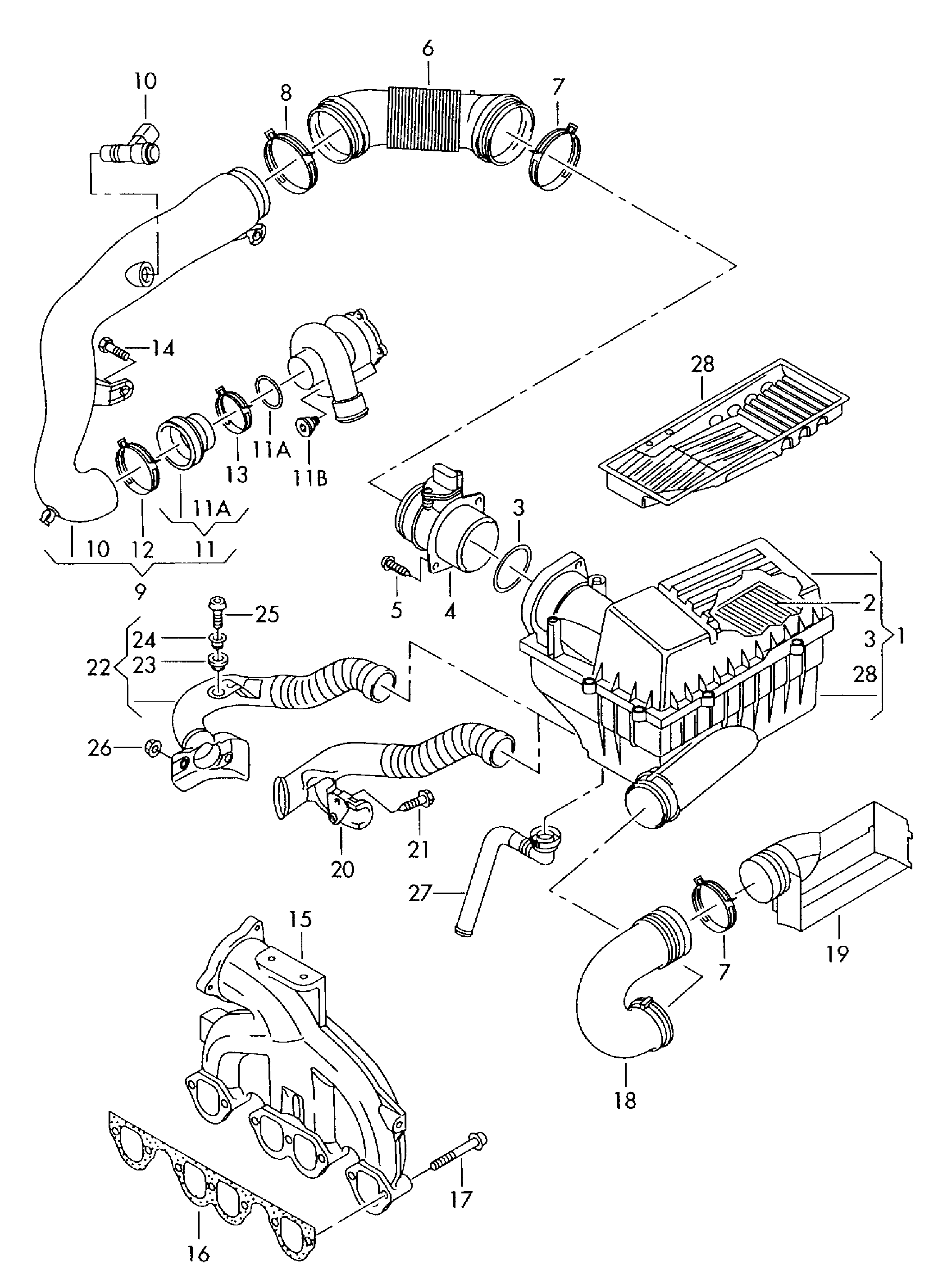

HOSE-FUEL FILTER TO FUEL PIPE

【3】028129646 SEALING RING

【16】028129717D Grommet

【4】038906461B Air meter

【2】1K0129620D Air cleaner:

【2】1K0129620E AIR FILTER ELMT-JEETA III

【11】1K0129627B HOSE-AIR INTAKE

【6】1K0129684B JOINT-HOSE

【19】1K0805962A DUCT-AIR INTAKE

【11】3C0129635 Nipple

【27】3C0129637B HOSE-DRAIN

【11A】3C0129646 SEAL

【9】3C0129654M HOSE-OIL RETURN UPR

【28】3C0129668 SPACER,COIL SPRING R/UP-CARRER

【28】3C0129668B SPACER,COIL SPRING R/UP-CARRER

【24】6N0129734 Spacer

【23】867129669 GROMMET

【21】N10157902 Bolt, hex

【14】N10189403 Six angle combined bolt

【12】N10296001 CLIP

【5】N90172004 SCREW

【13】N90656001 Clip-band

【12】N90656201 Clip-band

【7】N90656501 Clip-band

【26】N90894601 NUT

【25】N90993601 Bolt, self-locking
