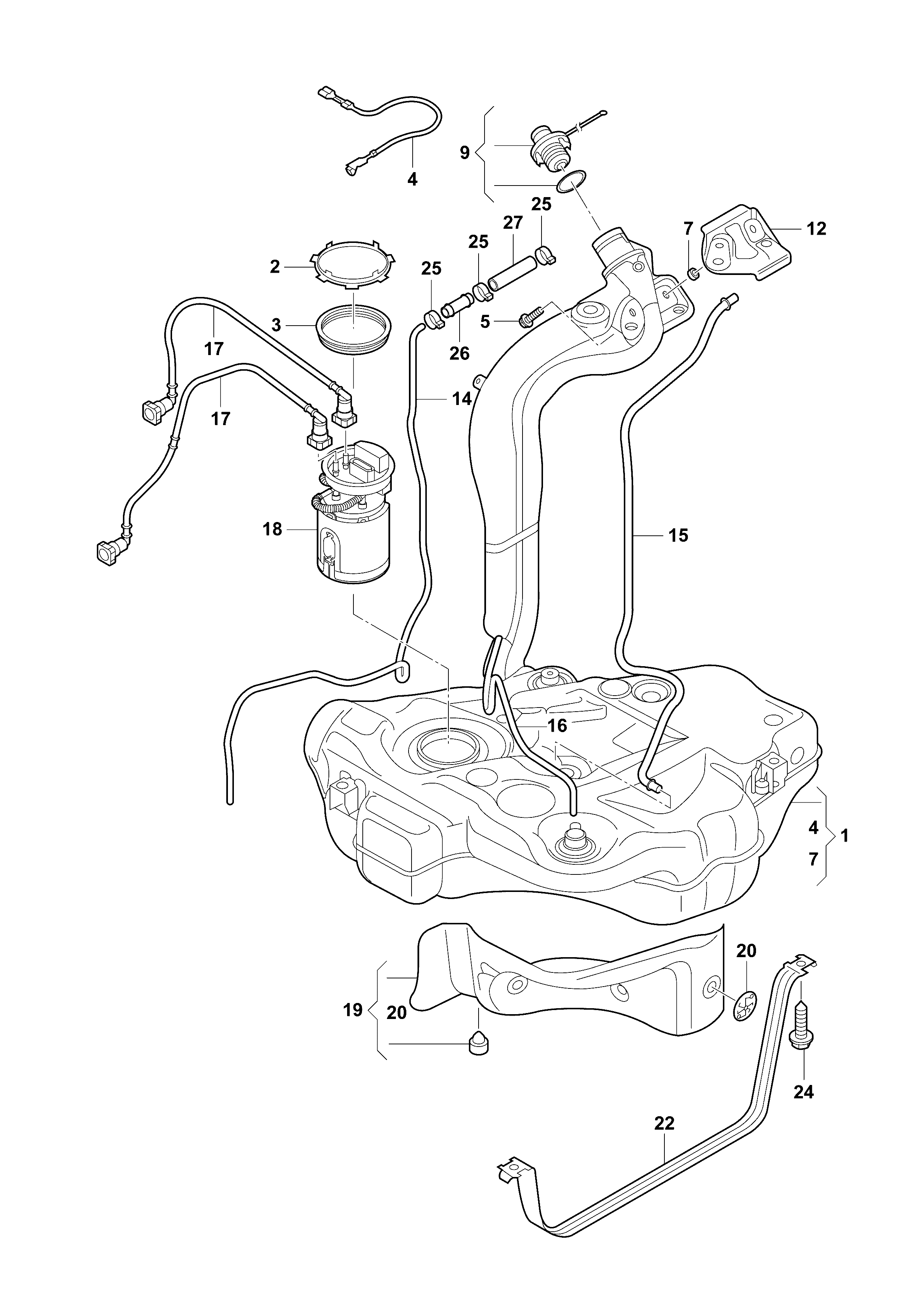

PIPE/TOUAREG/A3-2008

【26】191201316A GASKET WASHER FLUID TANK

【7】1J0201048C Spacer sleeve

【4】1J0201142A Earth wire

【19】1K0201307G HEAT SHIELD

【2】1K0201375 NUT

【9】1K0201550AF Fuel tank cap-w/belt

【22】1K0201656C Belt assy-tension

【1】1KD201060 Tank, fuel (22mm)

【15】1KD201993 PIPE/TOUAREG/A3-2008

【20】441863987B CLIP

【3】8E0919133G Seal ring:

【24】N0195307 BOLT

【25】N10199201 CLAMP

【27】N10303504 Hose, 5m per roll ordered in unit 5 shorter:

【20】N90796502 PROTECTOR
