WHEEL HOSE

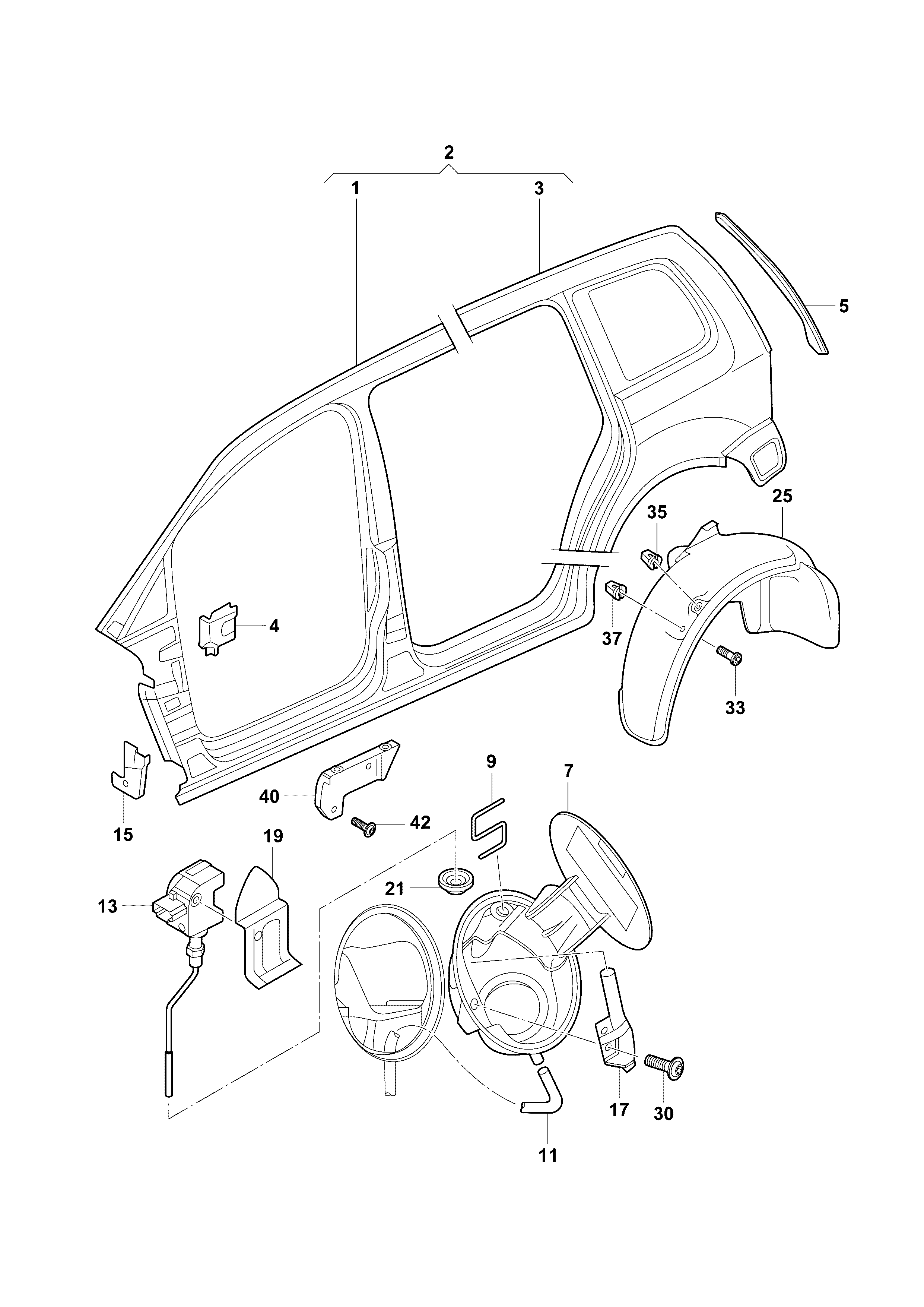

【2】1T0809606C Enclosure, side D -08.01.2008

【5】1T0809643A Seal pass

【5】1T0809644A Seal pass

【1】1T0809835A Trim assy-a/ B plr & lwr:

【1】1T0809836A Cut-a/ B plr & lwr

【3】1T0809843 Trim, quarter panel

【3】1T0809844A Trim, quarter panel

【7】1T0809857B Cap, fuel tank

【7】1T0809857BGRU Fuel cap

【4】1T0810209C Reinforcement, hinge

【4】1T0810210C Reinforcement, hinge

【40】1T0810333A Bracket, fender

【40】1T0810334A Bracket, fender

【13】1T0810773A Throttle control element

【15】1T0810843 Stopper assy-side sill

【15】1T0810844 Stopper assy-side sill

【17】1T0810899B Guide sleeve

【19】1T0810931 Bracket, actuator

【25】1T0810972F WHEEL HOSE

【2】1TD809605 Enclosure, side

【2】1TD809606 Enclosure, side

【21】3B0810911A SEALING RING

【11】3D0809937B Hose collection tank shortened:

【37】6N0809966A NUT

【33】N10354601 Bolt, hexagon no.1

【33】N10354602 Bolt, hexagon no.1

【35】N10516801 NUT

【30】N90918701 Bolt, hexagon no.1

【42】N90949201 Bolt (combination), hexagon
