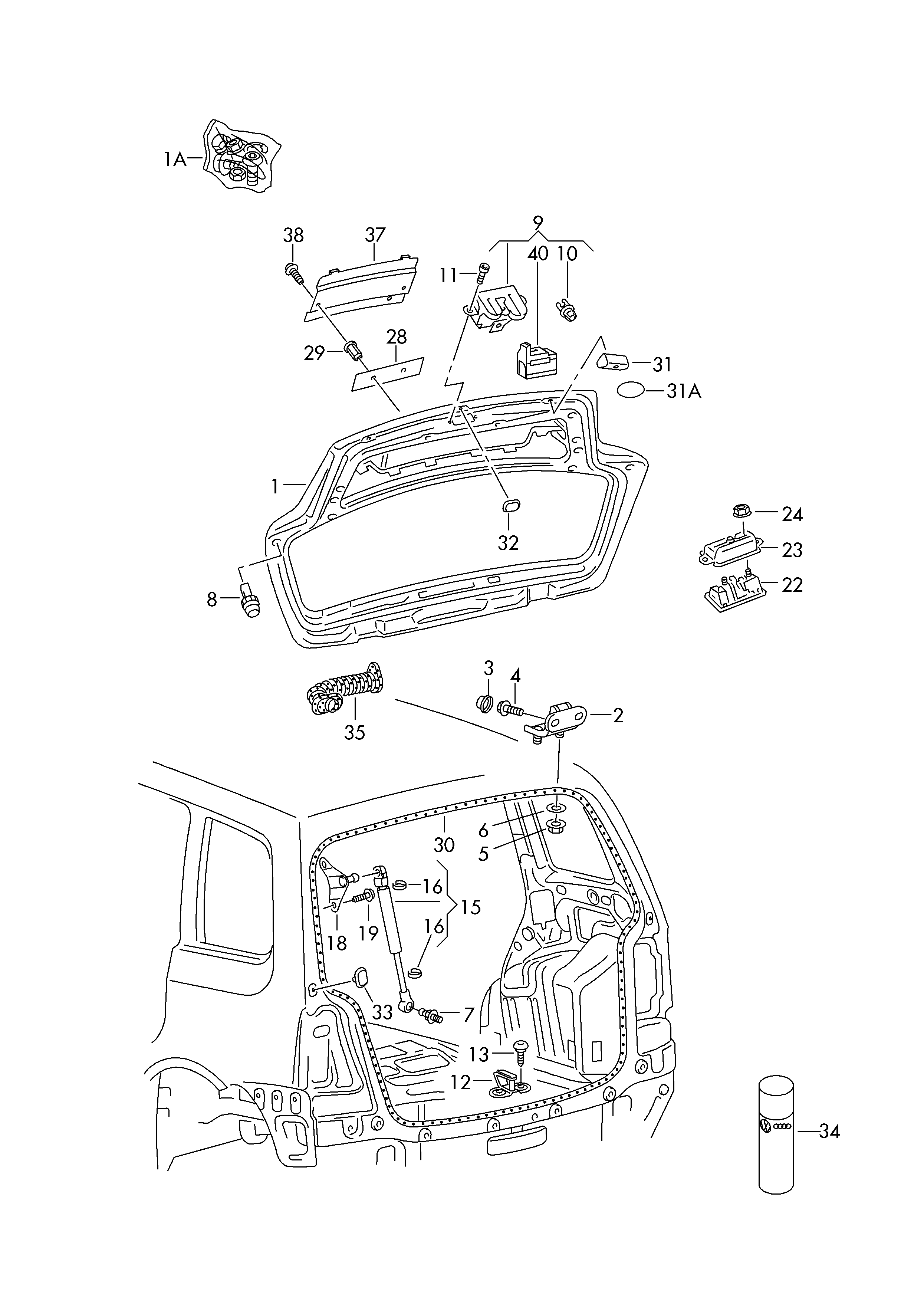

Lock-hatch

【10】191837199 CLIP

【2】1J9827301 LOCK ASSY, BONNET

【1】1T0827025Q Cover, rr. hatch

【37】1T0827211C Bracket, license plate

【23】1T0827229A Protector plate

【9】1T0827505H Lock-hatch

【9】1T0827505J Lock-hatch

【9】1T0827505J9B9 Lock-hatch

【12】1T0827517A Lock plate:

【30】1T0827705K Grommet

【40】3C9827645A9B9 Hood

【16】443823397 CLIP,CAP END

【22】5N0827566T Knob, for power hatch lock operation

【8】6X0827499F Stopper-buffer, adjustable

【28】8D0853419D Pad, self adhesive adjust with a tool

【32】8D5827713A SPARE PART

【31A】AKL44830004 Protective film transparent adhesive and sealing material see drawing

【34】G052778A2 Spray, lock cylinder grease

【5】N01100840 NUT,HEX 6MM

【24】N01508210 Nut, hexagon

【38】N10406504 Bolt, hexagon

【6】N90057701 WASHER

【4】N90732203 Bolt, cowl shoulder

【13】N90840603 Mldg bolt

【11】N90931602 BOLT

【19】N90969901 Bolt, hexagon insert

【7】WHT006579 Ball pin

【29】WHT007341 NUT
