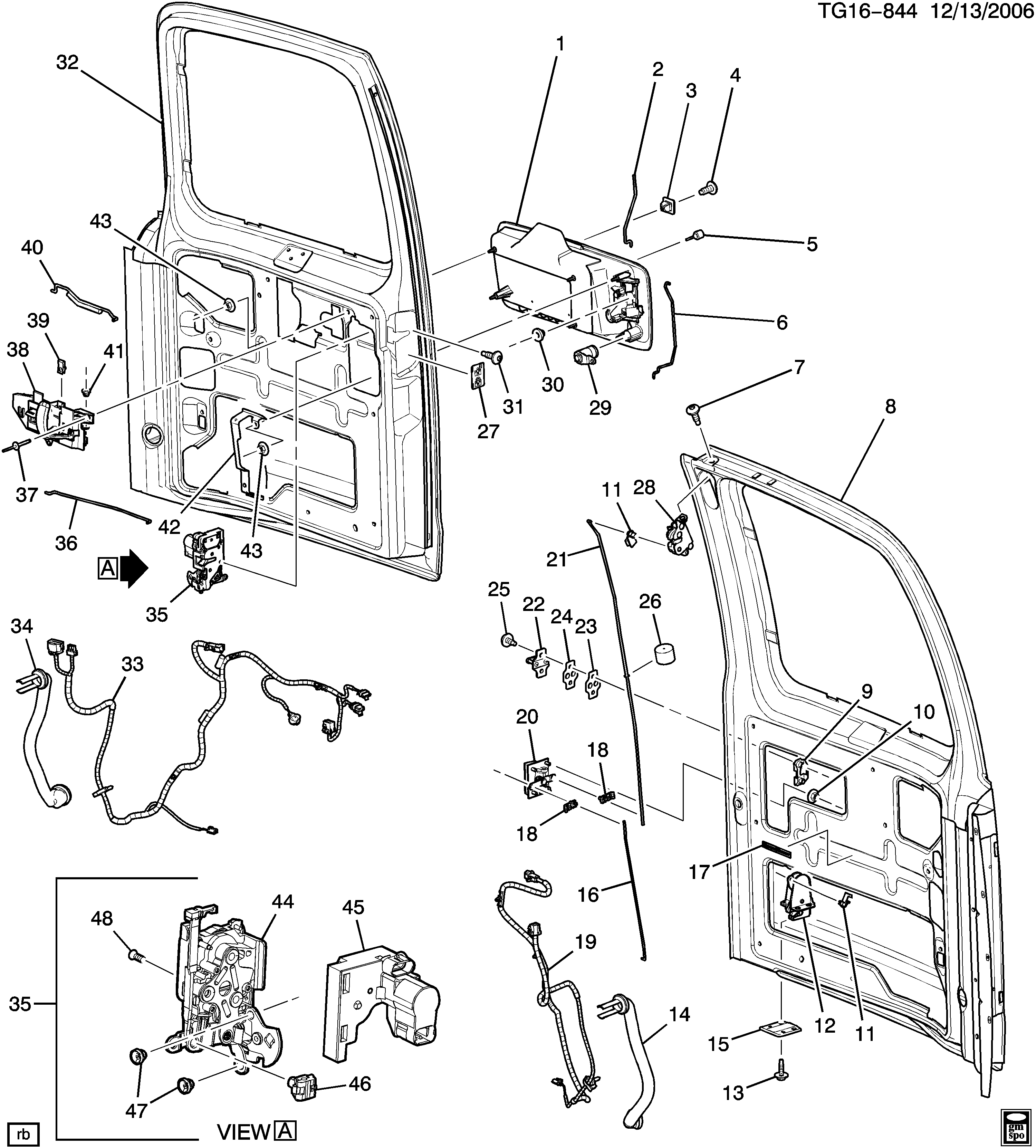

CONTROL,R/D LAT(INCLS 18)(INCLS THE INSIDE HANDLE)

【3】03907444 NUT,PUSH IN,SQUARE,UN THD,M9.5 SQ HOLE,NYLON(RR LIC PLT)

【4】09423101 SCREW,TAP,M6.3X1.81X16,14.55 O.D.,7114M,PZ0R(RR LIC PLT)

【25】11589019 SCREW,FLAT,CSK,M8X1.25X35,28 THD,15.4 OD,9.8,3044GMW,TORX, SILVER(FRT S/D LAT ST

【48】11609341 Bolt, rear door lock (M6X1.0X16 mm) (length 22.85)

【43】11609411 Nut (m6x1x5.7mm) (hexagon-non-plated GMW3200) (8.917)

【36】15955472 ROD,R/D LK(LWR RH)

【22】16629888 Striker (black) (incl

【46】16640343 CLIP,RR S/D O/S HDL(PART OF 35)(YELLOW)(W/ROD WITH (2) 90 DEGREE BENDS)(THREADED

【47】16643104 CLIP,INTER S/D LKG ROD(PART OF 35)(YELLOW)(PLASTIC)(8.083)

【12】20935252 LATCH,RR S/D(INCLS 21)(ACDelco #20935252)

【22】22721425 STRIKER,FRT S/D LK(BRIGHT)(INCLS STRIKER & PLATE)(10.569)

【35】22834667 LOCK,R/D(INCLS 44-48)(INCLS PLT,LVRS,HSG,BPRS,HDW)(DR AJAR SW BUILT INTO LOCK)

【1】25942275 HANDLE,R/D O/S(INCLS 5,30)(PAINT TO MATCH,INCLS BASE)
