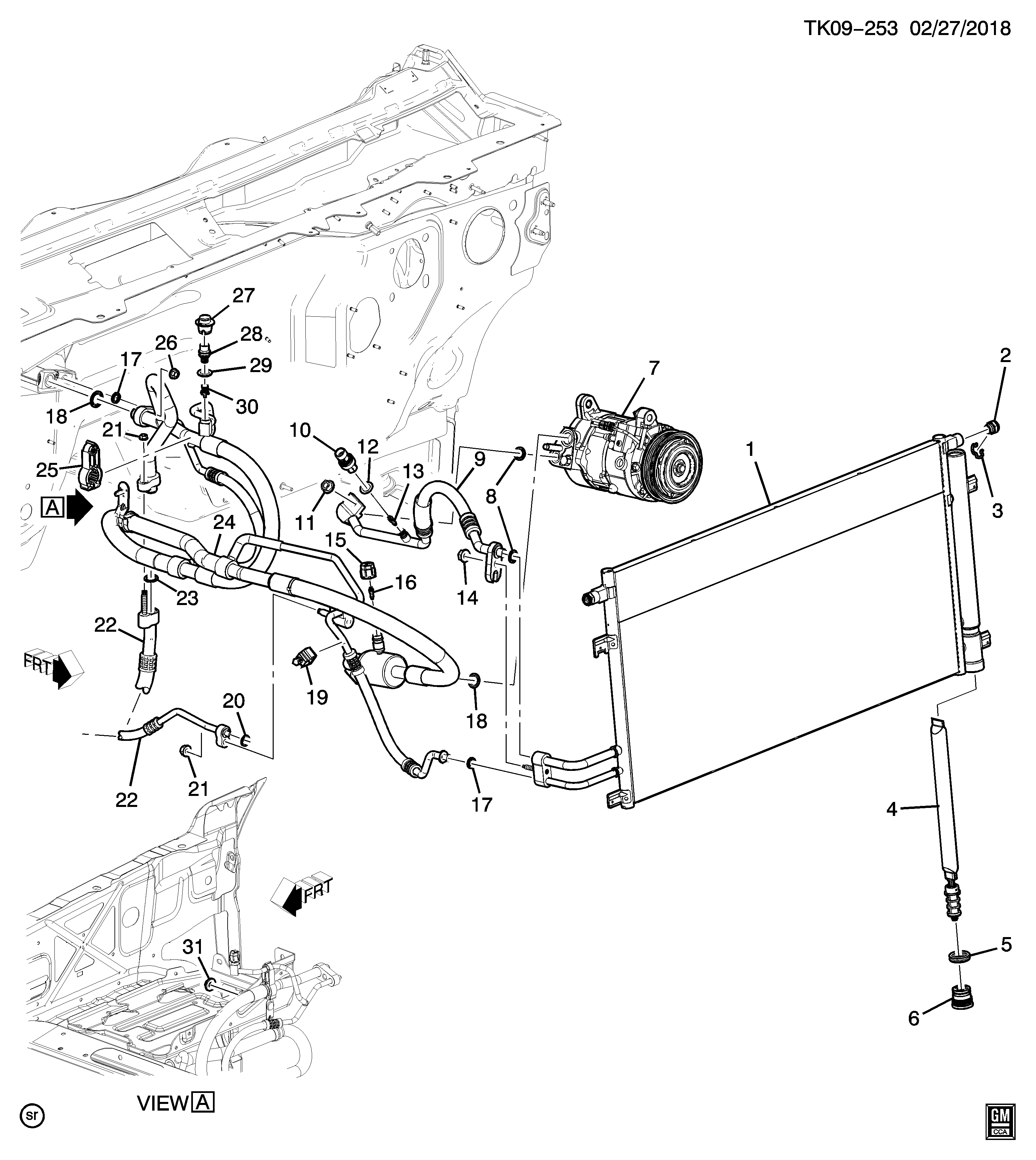

FITTING,A/C EVPR(PART OF 24)(INCLS SEAL)(9.177)(ACDelco #15-51312)

【18】02724966 SEAL,A/C ACCUM HOSE(O RING)(25MM OD X 17MM ID, 3/4IN DIA)(PART OF 23)(25MM OD X

【13】03041827 CORE,A/C REFRIG SERV VLV(INCLUDES SPRING, WITHOUT O-RING)(13/64-36 THD)(PART OF

【26】11546377 Nut a/c condenser hose (M8X1.25X8 mm) (without washer)

【31】11546449 Nut (M6X1X19 mm) (1.269)

【19】11547871 Clip (12 parts) (4.128)

【20】13418807 Packing, a/c evaporator inner tube

【18】13418808 O RING A/C COMPRESSOR

【23】13579646 Seal, air conditioner evaporator inlet pipe (27 parts) (3/4)

【8】13579648 SEAL,A/C CMPR & CNDSR HOSE(19MM OD X 11MM ID)(PART OF 10)(SLIMLINE WASHER,1/2)(

【17】13579649 Seal, a/c evap outlet pipe (3/8 in)

【10】13587668 SENSOR A/C REFRIG PRESS

【2】19210848 Connector (parts of 1) (including 2) (without beveling washer) (aluminum) (AC-DELCO #19210848)

【3】24205103 RETAINER

【1】84621302 CONDENSER,A/C(INCLS 2,4)(MAHLE)(W/TRANS CLR)(ACDelco #84621302)
