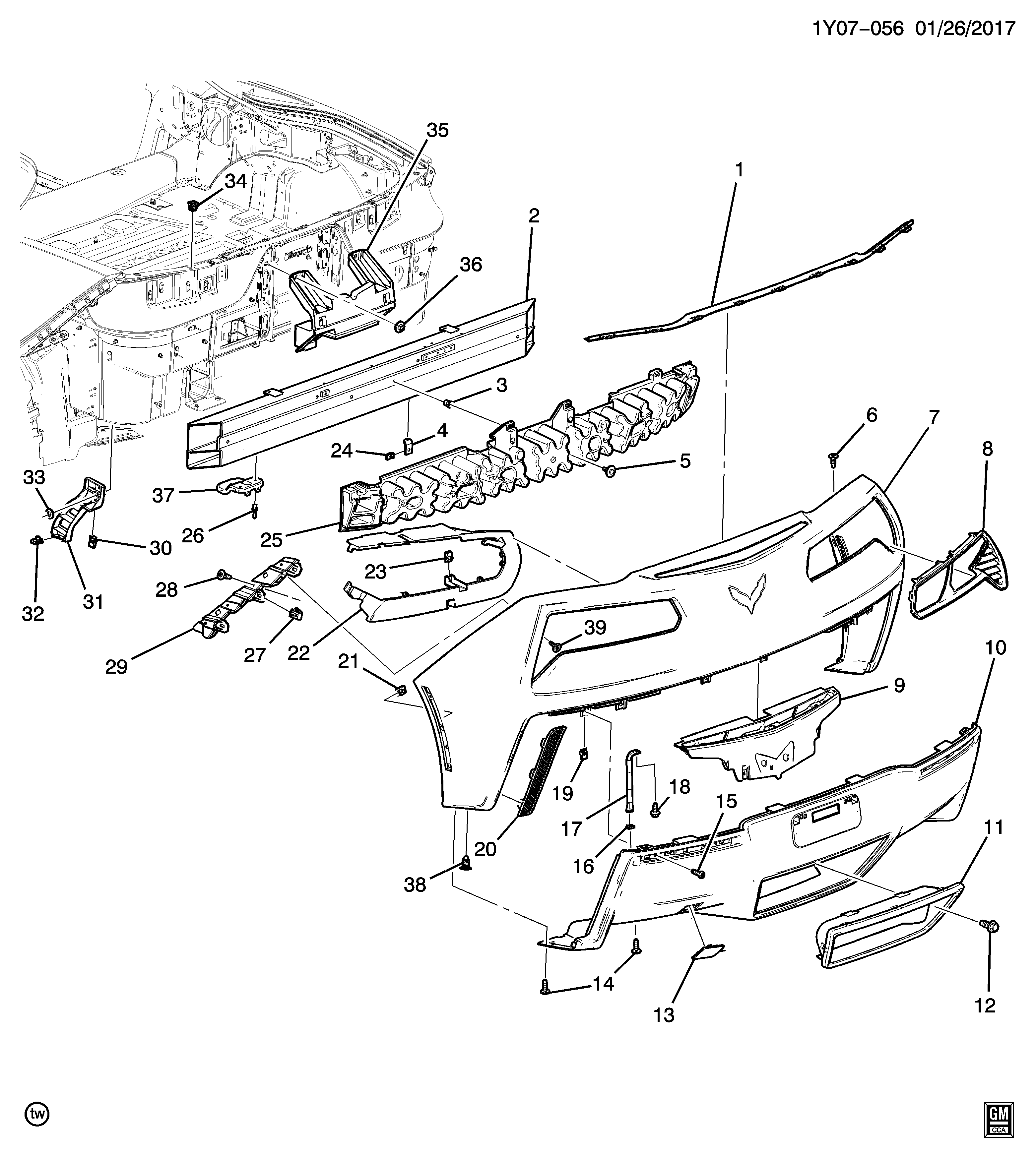

GRILLE,RR BPR FASCIA CTR

【19】11507067 Nut (M6X1.0) (6 ), radiator mounting plate

【32】11513599 NUT,U-TYPE,M4.2X1.41,0.65-3.80 PNL THK,PZ(HTR & A/C CONT)(ACDelco #11513599)

【3】11518908 Nut (2.726), upper

【36】11546437 Nut (M6X1.0MM) (10.186)

【33】11546449 Nut (M6X1X19 mm) (1.269)

【24】11570097 Nut (10.235), radiator mounting upper

【36】11570654 NUT,STRG COL DA CVR(M4.2X1.41)(PUSH-IN NUT)(FITS 8.75 SQ HOLE)(9.665)

【15】11609489 Bolt (with a diameter of 16.6 washer) (tapping screw) (8.977)

【18】11609982 Bolt, hexagon w/washer, M6X1X22, threaded 14.55, o/d 24, 8.8, GMW3359, M-PT (oil cooler carrier)

【12】11609989 BOLT,HEX W/FLAT WASHER,M6X1X25,15 THD,17 OD,6202M STL,GMW3200,TAPTITE(COOL RCVY

【34】11610157 NUT,PNL,M4.2X1.41,8.5X11.9,2.3-2.8 PNL,FITS 11.2X9.2 HOLE,1050,GMW33(PART OF 1)(

【38】20699808 Moulding set, r. rr. door spare (14.875)

【8】23406884 PANEL,RR FASCIA SIG LP TR(CARBON FLASH)

【27】92223721 Clip (part of 1) (7.831)
