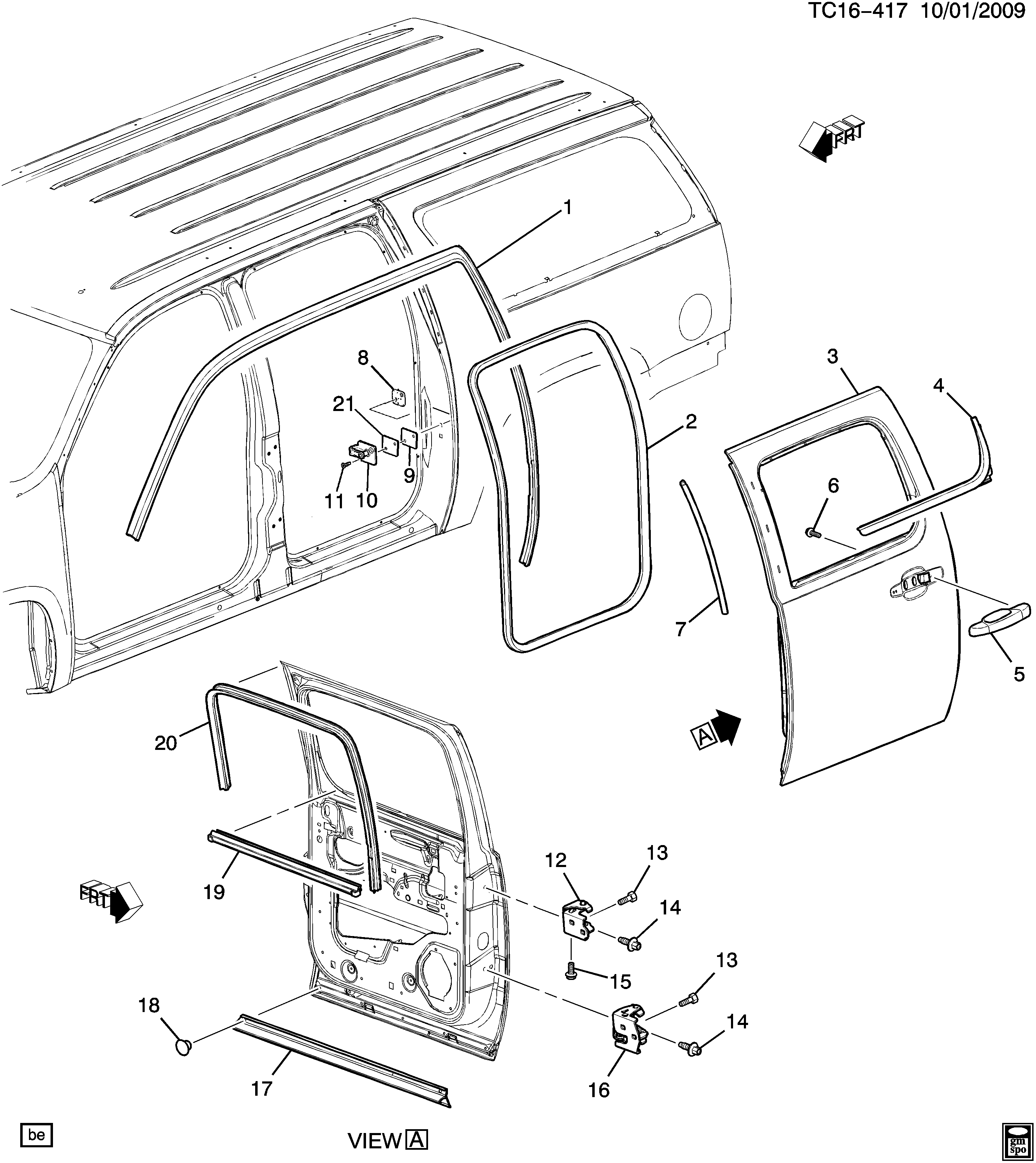

DOOR,RR SI(SEE GROUP 16.000 SHEET METAL/ BODYSIDE FOR DETAILED ILLUSTRATED VIE

【9】10387651 Grommet, r. fr. side door lock (10.571)

【6】11516421 Bolt, vacuum brake booster (08.900)

【11】11589019 SCREW,FLAT,CSK,M8X1.25X35,28 THD,15.4 OD,9.8,3044GMW,TORX, SILVER(FRT S/D LAT ST

【14】11609733 Bolt, taper washer, M8X1.25X30, threaded 20, o/s 24,10.9, gmw4, MAT POINT

【21】12451685 Spacer, front door latch striker (10.571)

【15】13307322 Hinge assy-fr dr

【16】20876300 Hinge (body & door side), lower

【10】20951578 Striker, front side door lock (10.569)

【3】22892603 DOOR,RR SI(SEE GROUP 16.000 SHEET METAL/ BODYSIDE FOR DETAILED ILLUSTRATED VIE

【12】25854397 Hinge (body & door side) (replace with 13307322 and adhesive 89021297)

【12】25854398 Hinge (body & door side) (replace with 13307322 and adhesive 89021297)

【5】25960522 Handle (chrome plated), outside (part of handle set) (ordered with snap 20828232)

【5】84053454 Handle, rr dr o/s (incl 28-30) (for use with snap 20828232) (black mould)

【5】84053456 Handle (black), rr dr (with 20828232)
