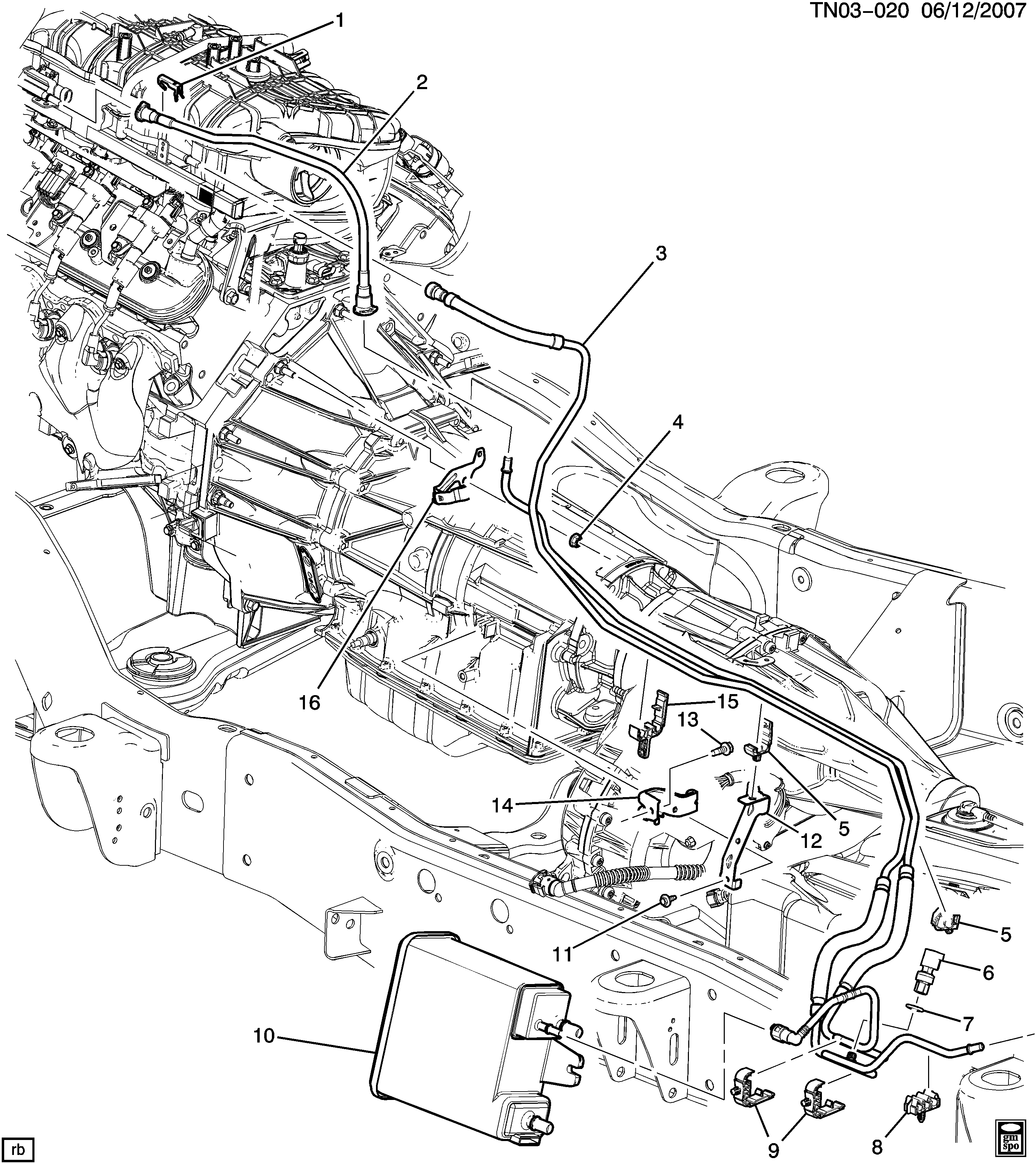

CANISTER,EVAP EMIS(SEE GROUP 03.000 VAPOR CANISTER & RELATED PARTS FOR DETAILE

【4】11514596 NUT,HFH,M8X1.25,17.9 OD,738 THK,13MM HEX,10, ZF(A/C CMPR & CNDSR HOSE)(8.915)(AC

【11】11561674 Bolt (bolt), brake pedal (washer radius is 11.77) (7.874)

【13】11570082 BOLT,HFH,M8X1.25X22,19 THD,18 OD,10.9,GMW3359(OIL FIL TUBE)(ACDelco #11570082)

【2】12658354 Tube, emission canister purifier

【6】13500744 Sensor, fuel pressure (in. 1) (in. fuel tube) (pair with lead link using 19168035) (AC-DELCO #135007

【7】15778699 Seal, fuel pressure sensor (o-ring) (for export) (AC-DELCO #15778699)

【3】25950020 HOSE,FUEL FEED & EVAP EMIS & RTN(INCLS 5-9,12,15,16)
