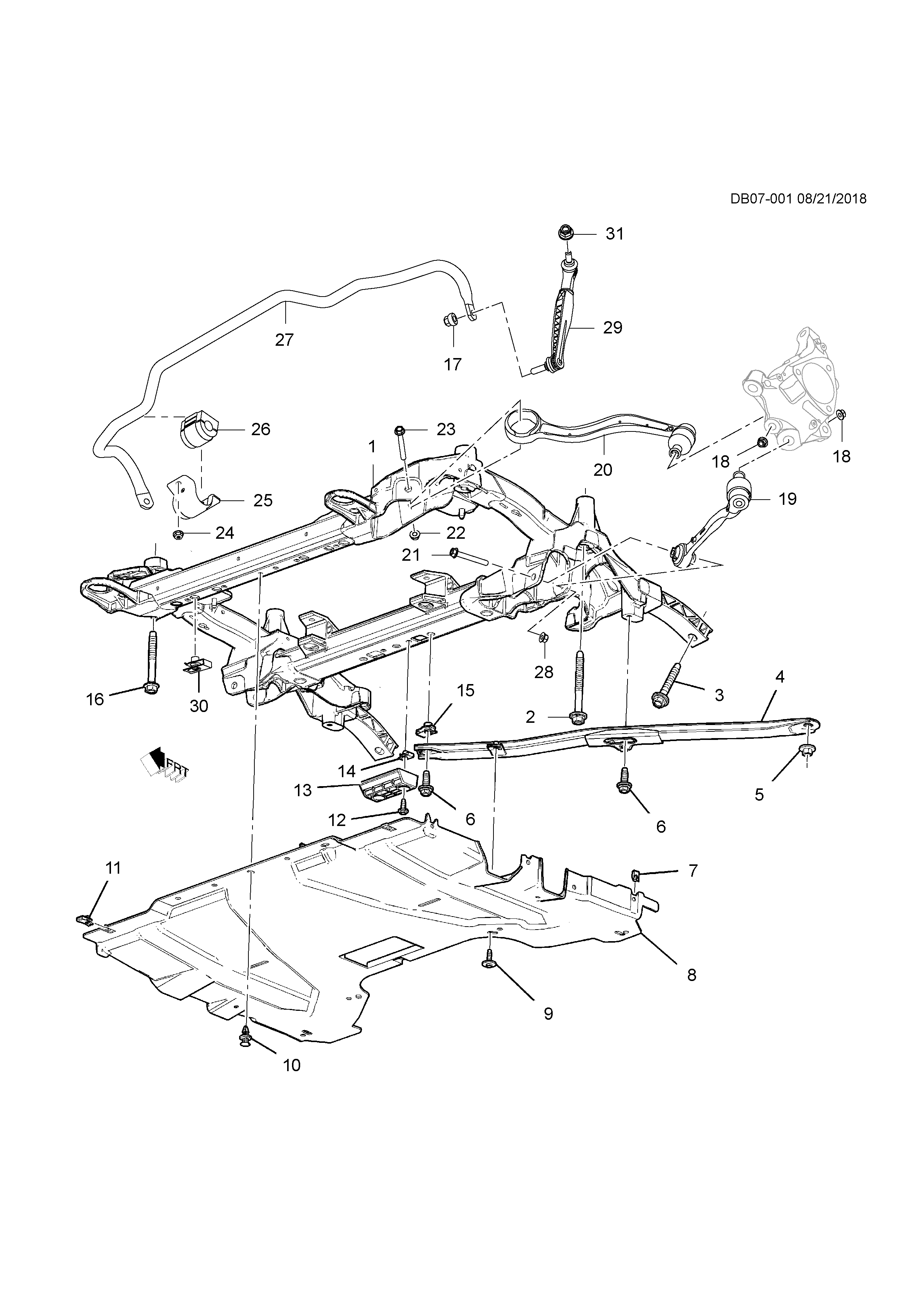

Transaxle frame

【030】11507067 Nut (M6X1.0) (6 ), radiator mounting plate

【028】11516078 Nut (M12X1.75 mm)

【018】11516382 Nut (23427528 is 84369476 and 11611841 and 11611709 and 11611696

【005】11516754 Nut (M10X1.5 mm) (hexagon, with conical spring washer) (washer outer diameter 27.2, for saic general

【012】11519383 Bolt, a/c evaporator tube (M6X1.0X23MM) (washer diameter 16.8) (8.900)

【016】11547921 Bolt (M12X1.75X130.65), front suspension bracket (washer o/d 27) (18 female) (7.039)

【031】11548382 Nut (at front suspension strut) (* see PERM note)

【007】11548579 Nut, exhaust tail pipe insulator (1.269)

【010】11561645 Nut (M6X1.0MM) (6 ), cowl

【016】11589281 Bolt (M12X1.75X105.9 mm)

【024】11609412 Nut, battery cable terminal (8mm)

【023】11610915 Bolt (M12X1.75X106, thread 75), lower control arm (od 26.6)

【003】11611261 Bolt (M12X1.75X65, threaded 51, otr 30)

【021】11611268 Bolt, lower control arm rr (B-bush to bracket bolt) (6.172)

【029】20761141 LINK, FRT STAB SHF

【029】20761142 LINK, FRT STAB SHF

【004】20907230 Arm comp., r. fr

【013】20933714 Pad, jack

【025】20936092 Clip-fr stabilizer

【015】22531616 Nut (7.039), rr. towing hook

【027】22882890 Bar, stabilizer (incl. 25,26)

【027】22882891 Bar, stabilizer (incl. 25,26)

【008】23209136 Insulator (incl. 7,11), lower

【020】23462000 Link lower

【020】23462001 Link lower

【019】23462008 Link lower

【019】23462009 Link lower

【027】26668165 Bar (for front stabilizer rear 20140625) (incl. 25,26)

【027】26668166 Bar (for front stabilizer rear 20140625) (incl. 25,26)

【001】84088024 Transaxle frame
