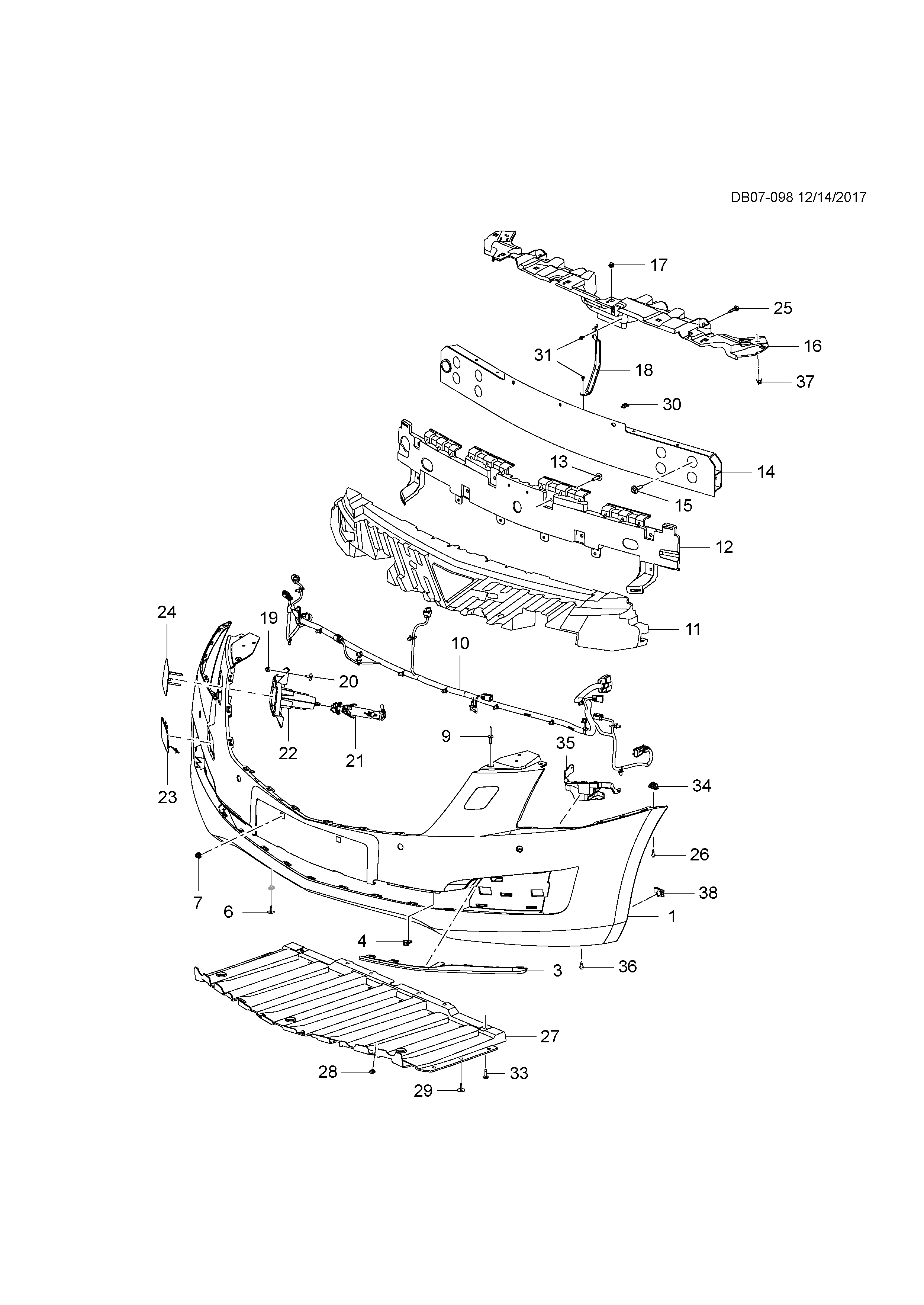

Guard assy, front bumper

【009】11516807 POP rivet, diameter 4.8, length 19.9, outer diameter 16, hole 5-5.25, clamping range 1-9, aluminum,

【033】11519383 Bolt, a/c evaporator tube (M6X1.0X23MM) (washer diameter 16.8) (8.900)

【036】11548270 Bolt, rear wheel house patch (with a washer of 19.78 diameter)

【038】11548579 Nut, exhaust tail pipe insulator (1.269)

【015】11561763 Hinge assy-fr dr

【017】11569960 RIVET, RR BPR BAR

【037】11570015 Deck tray rr otr

【007】11570215 Nut, fr bumper skin

【025】11570298 Bolt, radiator reserve tank (M6X1X23 mm) (washer 24mm in diameter) (10.154)

【031】11570498 BOLT, HX HD W/FLAT

【034】11611523 Nut (U) (push) (insert 8.75 hole) (nut) (9.675)

【030】11611806 Air base, outer rear

【021】20908664 Nozzle l

【021】20908667 Nozzle l

【014】23484208 GUARD FR BUMPER

【004】25606274 Retainer, r. push (7.840)

【013】25631448 Retainer, front bumper rivet

【010】26203489 Wiring assy-front object warning sensor

【010】26275004 Wiring assy-front object warning sensor

【035】26670913 Bracket, front bumper rivet

【035】26670914 Bracket, front bumper rivet

【010】26681273 Harness, forward warning sensor

【010】26681274 Harness, forward warning sensor

【010】26681275 Harness, forward warning sensor

【010】26692249 Harness, forward warning sensor

【010】26692250 Harness, forward warning sensor

【018】90767625 Brace, r. fr. upper

【012】90800014 Cowl top fr bpr

【011】90800015 Cowl top fr bpr

【016】90871223 Bracket (including 17), center

【003】90871232 Mldg l, fr bpr lwr

【003】90871233 Mldg l, fr bpr lwr

【022】90871235 Bracket, h/l washer nozzle

【022】90871236 Bracket, h/l washer nozzle

【027】90871478 Deflector, front bumper rivet (incl 28)

【001】90925085 Rivet, fr bumper

【001】90925086 Rivet, fr bumper

【001】90925087 Skin, fr bumper

【024】90925088 Cover, h/l washer nozzle hole

【024】90925089 Cover, h/l washer nozzle hole

【023】90925090 Coverfr bumper
