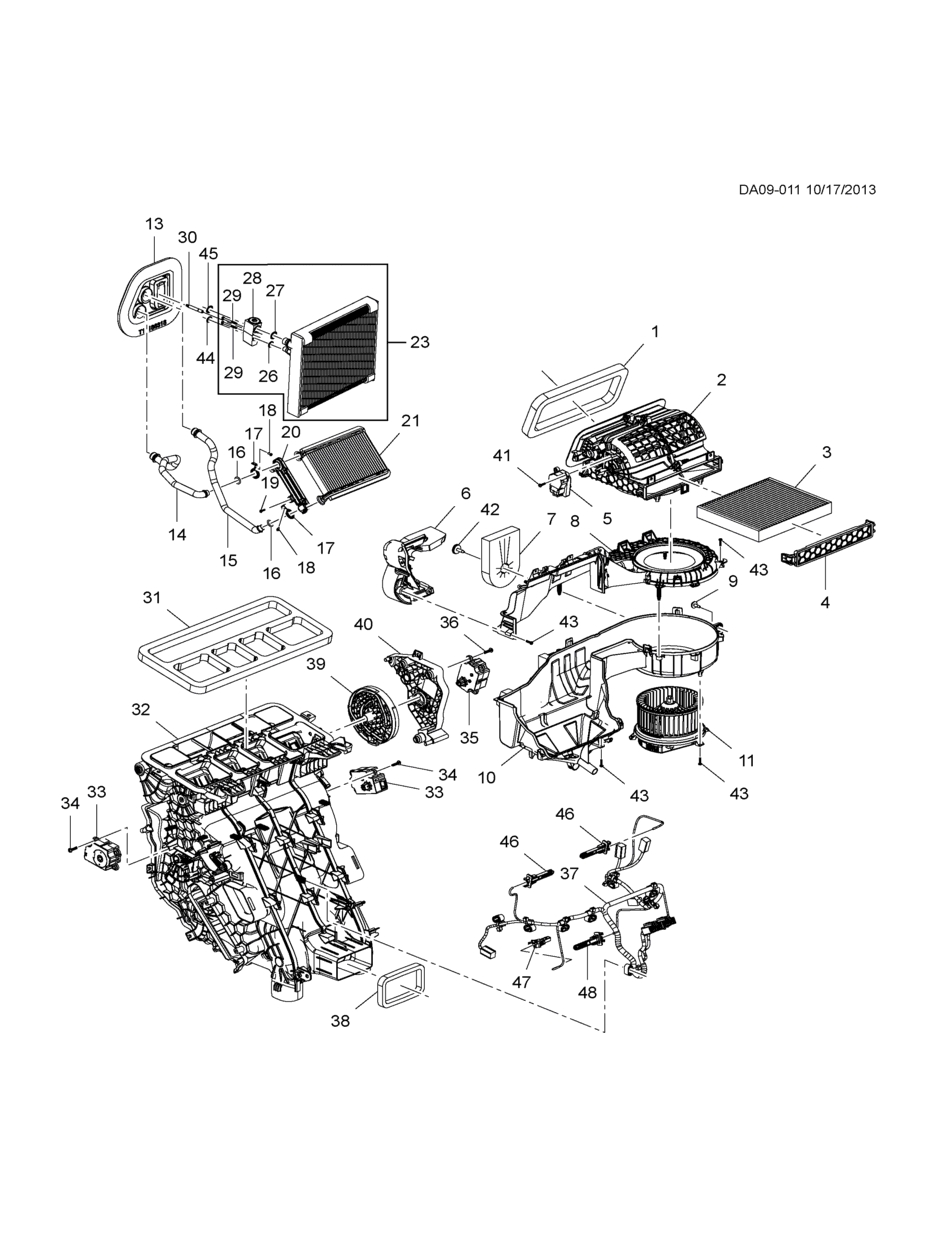

WIRE HARN A/C SUB

【009】11561674 Bolt (bolt), brake pedal (washer radius is 11.77) (7.874)

【043】11562121 Bolt, heater & a/c evaporator & blower module (parts of 51) (M4X1.79X16) (9.215)

【029】13263309 Bolt, a/c evaporator thermo expansion valve

【003】13356914 FILTER ASM-PASS COMPT AIR

【008】22743875 Case, heater, a/c evaporator & blower upr

【003】22743911 Filter assy-passenger compartment air

【005】22743920 Actuator-air inlet valve

【002】22743922 Case-intake

【020】22743924 Cover, heater & a/c evaporator module

【006】22743925 Cover, heater & a/c evaporator module

【010】22743927 Case, a/c evaporator & blower lwr

【032】22743929 Case, heater & a/c evaporator (incl. 39,40)

【004】22743930 Cover, passenger room air cleaner housing

【035】22743933 Actuator-thermo

【048】22932728 Sensor, in

【047】22932729 Sensor, in

【046】22932730 Sensor, in

【032】23416452 Case, heater & a/c evaporator (incl. 39,40)

【032】23458166 Case, heater & a/c evaporator (incl. 39,40)

【044】24436644 Seal, a/c evaporator inlet tube (outer diameter = 9.190, inner diameter = 8) (* p

【045】24436645 Packing, a/c evaporator outlet tube (17MM id-25.2MM od) (* package 1)

【030】26352539 Stud (for air conditioner compressor & condenser hose) (9.214)

【011】84493340 Motor, blower unit

【003】93720481 Filter, passenger compartment air conditioner

【003】93724954 Filter, passenger compartment air (PM2.5 combination filter (conventional option: K6L)) (47 parts)
