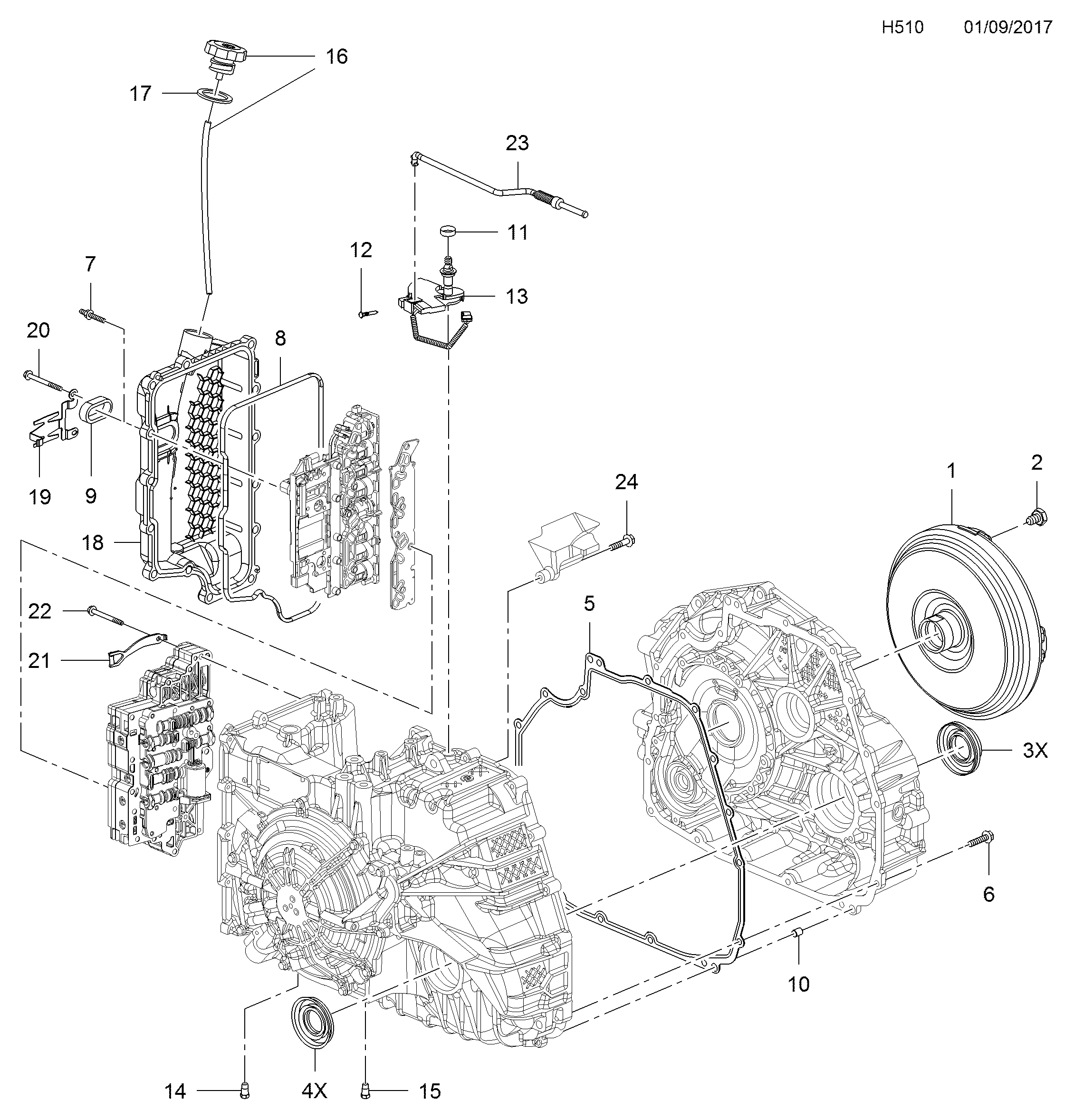

BOLT - LWR ARM

【20】11515286 Bolt (M6X1.0X80)

【16】24225190 Indicator assy-transmission oil level

【8】24229593 Gasket, valve body cover (* package 1, package 2) (AC-DELCO #24229593)

【7】24232800 Bolt, stud-body cover AC-DELCO #24232800

【22】24233409 Bolt (M6X1.0X42) (AC-DELCO #24233409)

【17】24238738 Grommet, transmission oil level indicator (* package 1)

【9】24240184 Seal, valve body lid wiring connector hole (* package 1, package 2) (AC-DELCO #24240184)

【11】24256576 Seal, manual shift shaft

【18】24265264 Cover, control valve (incl. Gasket) (AC-DELCO #24265264)

【10】8644685 Pin, transmission housing dowel (08644685*24241991) (4.265)

【15】8654382 Plug, automatic transmission reservoir oil drain (08654382*24241990) (4.104)

【24】8680884 Case, front differential

【12】8685700 Pin, manual shift shaft
