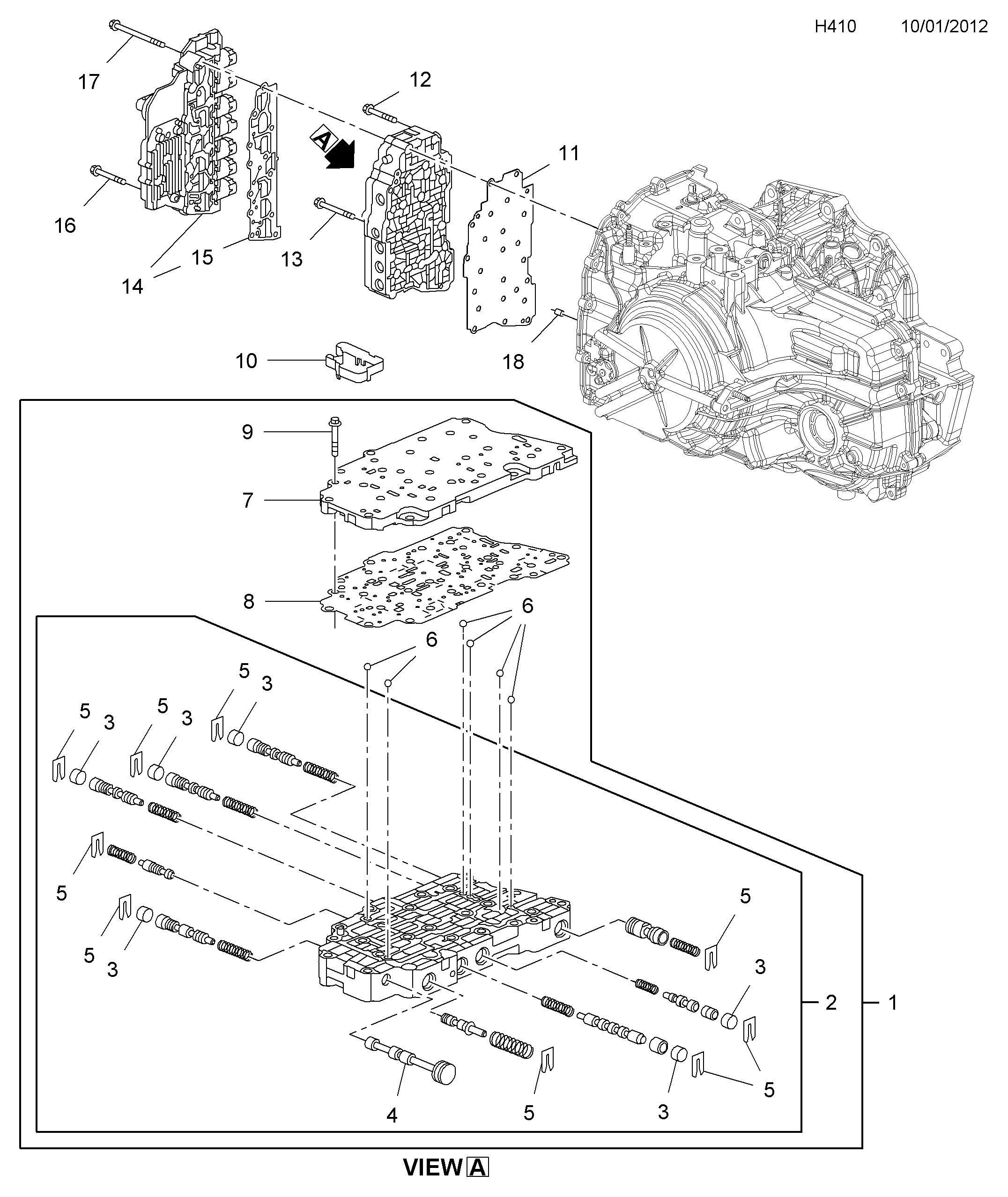

BOLT - LWR ARM

【17】11549308 Bolt, body (from ecu to oil pan) (24230927*11549308)

【18】24227105 Pin, control valve body

【7】24230839 Plate (413 of parts) (machining) (plate only), control valve

【12】24230924 Bolt (24230924*11547479), (M6X1.0X53 mm) (from ecu to body)

【13】24230926 Bolt (24230926*3), (M6X1.0X60 mm) (from ecu to body)

【17】24230927 Bolt (24230927*11547478), valve body

【16】24230931 Bolt (M5X0.8X40.5 mm) (* package 1)

【5】24234262 Plug, 2-6 clutch regulating valve hole (24 parts) (without pin)

【10】24238780 BOLT - LWR ARM

【15】24242274 Filter plate (1st generation), control solenoid (13 OP port & filter)

【6】24245060 Ball, control body check (24245060*00147485)

【11】24248227 Plate, control valve body (24248925 and 24248228 replace 24230865 & 24230861 together) (between cont

【8】24248228 Plate (7 parts), control valve body (between control valve plate and control valve body)

【5】24249339 Spring set, 1-2-3-4 clutch booster (24 parts) (with pin)

【14】24256524 BOLT - LWR ARM

【1】24261744 Body, control valve (including 12) (1st generation) (w/oil pan)

【15】24263196 Filter plate (2nd generation), control solenoid (2op port & strainer)

【14】24265367 Solenoid (w/valve body and transmission control module) (used before 20130415) (2nd design see 24287

【1】24265971 Body, valve (24249346*24265971) (including 1, 5, 12) (2nd generation) (with oil passage plate)

【11】24267597 Plate, control valve body
