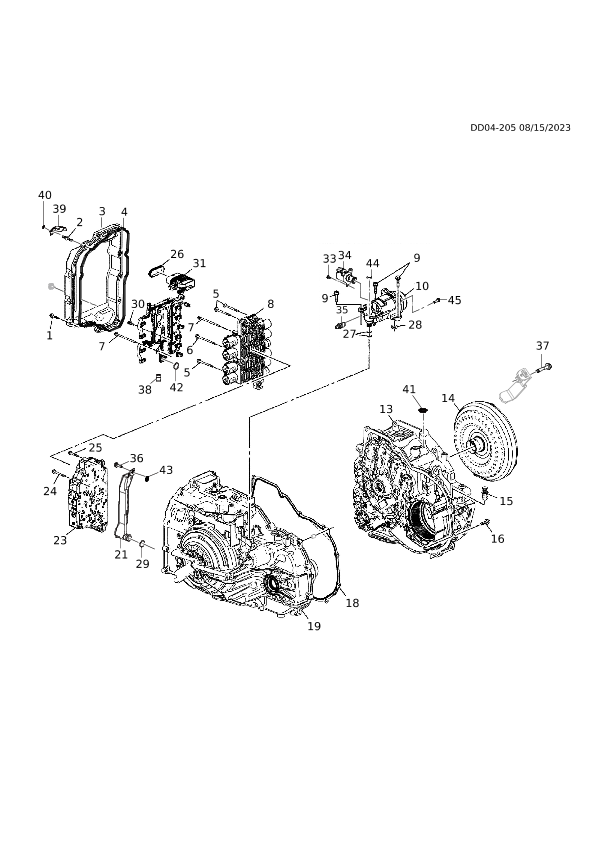

Torque converter

【009】11516337 Bolt, torque converter & differential carrier (24241897*11516337*11588724) (M8X1.25X30 mm) (8.900)

【040】11546389 Nut, battery carrier (M6X1 mm) (6.602)

【005】11547173 Bolt, valve body

【006】11547174 Bolt (M5 X 85), valve

【007】11547175 Bolt, valve body

【036】11547183 Bolt (21 parts) (5.505)

【024】11547377 Bolt (35 long), body (M5 X 55)

【030】11547422 Bolt (430 parts), valve solenoid valve

【025】11549098 Bolt (35 l), valve

【033】11549332 Bolt (10 parts), accumulator valve body

【016】11588724 Bolt-oil pump sprocket

【037】11588743 Bolt, transaxle (POS 1, 8) (m10x1.5x55.3,4) (4.081)

【004】24044908 Gasket, valve body cover

【015】24226020 Plug, oil transfer tube

【002】24232800 Bolt, stud-body cover AC-DELCO #24232800

【009】24241897 Bolt, torque converter & differential carrier (24241897*11516337*11588724) (M8X1.25X30 mm)

【001】24241898 Bolt, valve body cover (M6X1X30 mm)

【041】24243755 Plug (30mm)

【038】24249853 Valve oil line one way ball spring

【035】24266056 Reservoir, auto assist

【026】24280824 Seal, body side harness opening (part 31) (* package 3, package 4, package 5)

【018】24281635 Gasket, torque converter housing (metal support: aluminum alloy 5754 H38) (* service kit 2)

【019】24284345 Housing, automatic. Vehicles with parking release cable) (2nd design see 24044529) (including 54-56,

【042】24285336 Seal, atf (O-ring) (* package 2, package 3)

【044】24288114 Grommet (10 parts) (accumulator solenoid body to accumulator body) (* package 1, package 2)

【021】24288355 Control valve (incl. 36,43) (incl. Thermostat)

【034】24293181 Solenoid valve (10 parts) (repair kit) (w/solenoid valve cap) (4.265)

【003】24296549 Cover, control valve (* repair kit 2)

【023】24297659 Body, valve (incl 431-451,453-481) (service kit)
