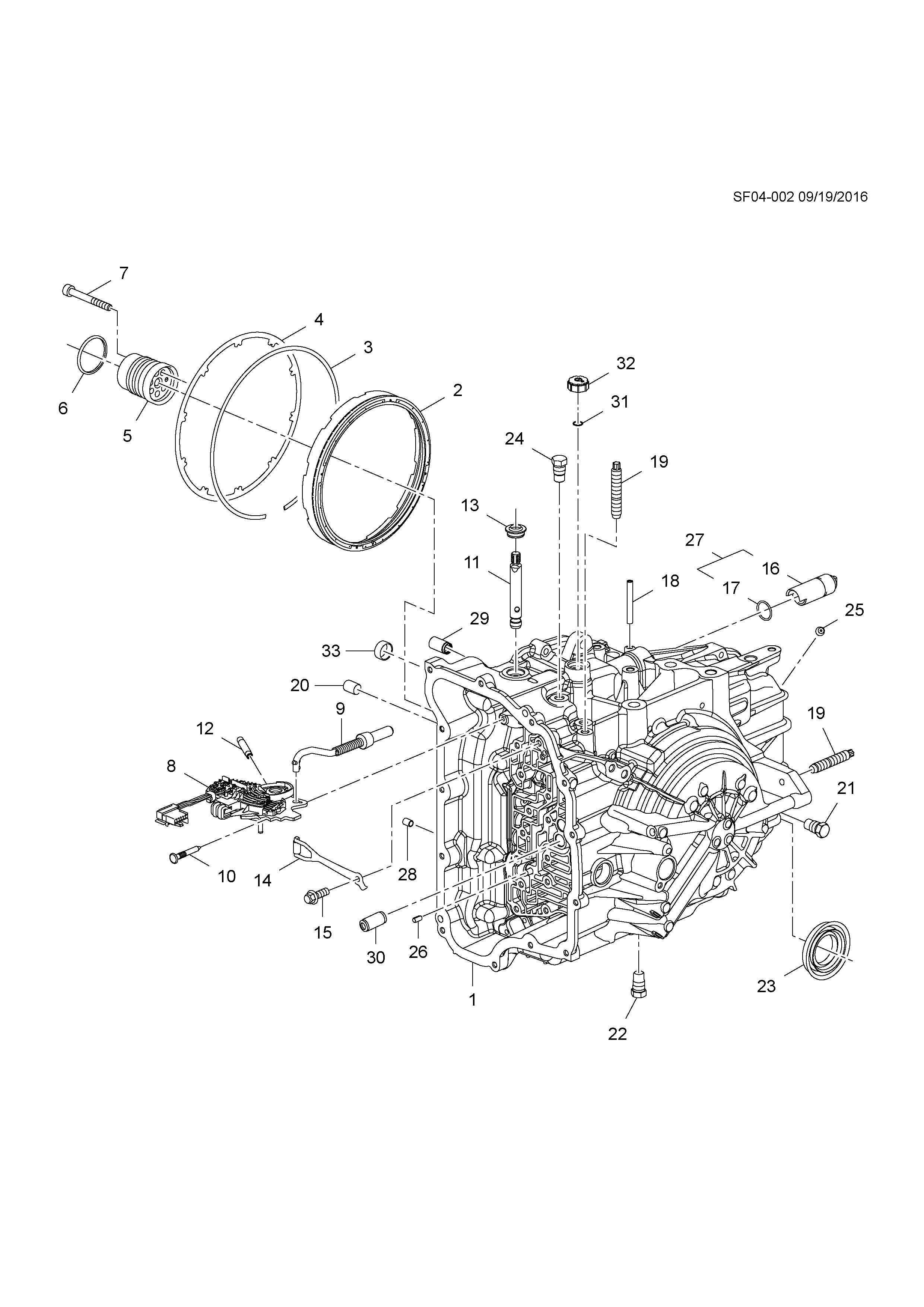

Housing (full SD) (incl. 2-15,18,20-23,25-29,33) (w/accumulator)

【032】24050078 Cap, oil

【015】24211635 Bolt, mnl shift stop (24211635*24241923)

【012】24227077 Pin, manual shift stop lever

【026】24227105 Pin, control valve body

【008】24230719 Lever, manual shift stop (with shift shaft position switch)

【009】24230720 Actuator assy-parking

【002】24230727 Piston, 2-6 clutch (24230727*24257000*24257108)

【003】24230730 Ring, 2-6 clutch spring snap

【011】24231168 Shaft (part of 1), manual shift stop lever

【014】24231174 Spring, manual shift stopper lever

【027】24231179 Parking pawl actuator

【007】24231201 Bolt, input shaft support (M6X1.0X50 mm)

【017】24236411 Parking pawl actuator

【030】24237339 Seal, 1-2-3-4 low & reverse clutch fluid

【006】24237428 Ring, 3-5 & 4-5-6 clutch oil

【019】24238097 Bolt, stud-oil cooler tube

【018】24241895 Parking pawl actuator

【015】24241923 Case, front differential

【024】24241990 Plug (24241990*08654382), automatic transmission oil pressure test hole

【020】24241991 Pin, transmission housing dowel (24241991*08644685)

【032】24243519 Cover, t/m oil filler (w/vent) (24243519*24222255.) (incl. 23) (M8X1.25X40.7 mm)

【031】24247757 Seal (o-ring) (22 parts)

【005】24249634 Bracket, input shaft (2nd generation)

【013】24256576 Seal, manual shift shaft

【002】24257108 Piston, 2-6 clutch (24257108*24257000*24230727)

【004】24258649 Spring 2-6th clutch

【023】24273971 Oil seal (l) (64 parts) (to 61MM outer) (to the housing) (to the axle) (* package 1, package 5)

【020】8644685 Pin, transmission housing dowel (08644685*24241991) (4.265)

【024】8654382 Plug, automatic transmission reservoir oil drain (08654382*24241990) (4.104)

【010】8685700 Pin, manual shift shaft
