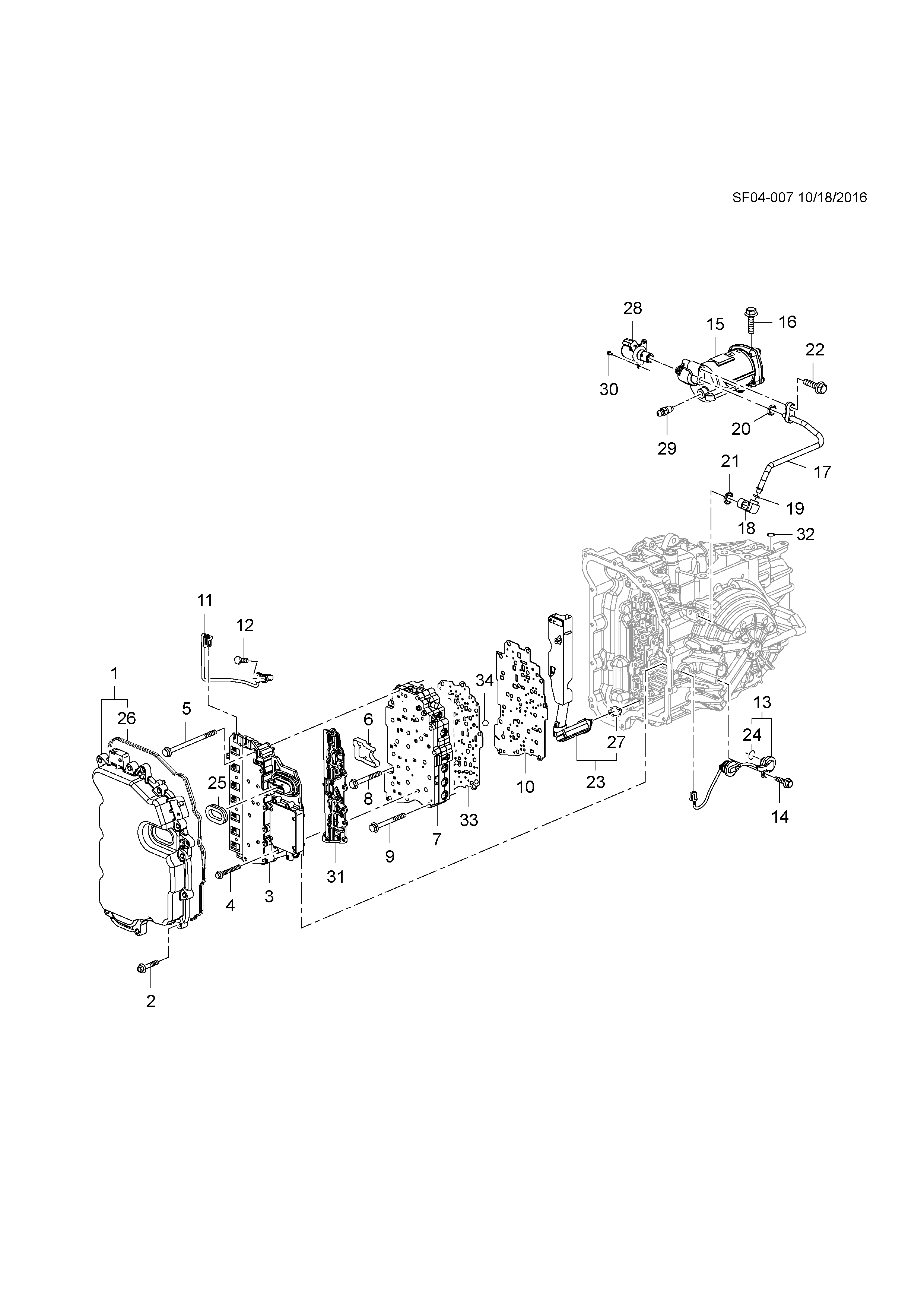

Pipe, automatic transmission oil accumulator (incl. 18-21) (incl. Cyl no. 24288212 and 25874797)

【022】11516337 Bolt, torque converter & differential carrier (24241897*11516337*11588724) (M8X1.25X30 mm) (8.900)

【008】11547479 Bolt (11547479*24230924), (M6X1.0X53 mm) (from ecu to body)

【009】11547480 Bolt (11547480*3), (M6X1.0X60 mm) (from ecu to body)

【005】11549308 Bolt, body (from ecu to oil pan) (24230927*11549308)

【030】11549332 Bolt (10 parts), accumulator valve body

【022】11588724 Bolt-oil pump sprocket

【034】147485 Valve body check ball valve (00147485*24245060) (24 parts)

【015】24045605 Accumulator, a/t auxiliary oil (incl 28,30-32) (service kit) (w/solenoid valve cap) (4.265)

【028】24045845 Solenoid, a/t auxiliary oil accumulator (fr. s.)

【012】24230724 Bolt, atm (M6X1X17.65 mm)

【008】24230924 Bolt (24230924*11547479), (M6X1.0X53 mm) (from ecu to body)

【009】24230926 Bolt (24230926*3), (M6X1.0X60 mm) (from ecu to body)

【005】24230927 Bolt (24230927*11547478), valve body

【004】24230931 Bolt (M5X0.8X40.5 mm) (* package 1)

【026】24234281 Gasket, control valve body cover

【027】24239319 Gasket, a/t oil level control valve

【014】24239923 Bolt (M6X1X23)

【022】24241897 Bolt, torque converter & differential carrier (24241897*11516337*11588724) (M8X1.25X30 mm)

【002】24241898 Bolt, valve body cover (M6X1X30 mm)

【025】24242273 Seal, contl connector hole

【024】24242676 Seal (o-ring), automatic transmission input speed sensor (19 parts) (20mm inner diameter) (* service

【023】24243351 Control valve

【007】24249345 Body, control valve (2nd generation) (without oil plate) (* package 1)

【011】24253027 Sensor, automatic transmission speed (24253027*24259852)

【013】24253028 Sensor, automatic transmission input speed (24259853*24253028) (including 20)

【001】24253434 Cap, t/m valve body

【006】24257696 Stay, control solenoid

【011】24259852 Sensor, automatic transmission speed (24259852*24253027)

【031】24263196 Filter plate (2nd generation), control solenoid (2op port & strainer)

【033】24263736 Plate, 12 control valve body

【007】24265971 Body, valve (24249346*24265971) (including 1, 5, 12) (2nd generation) (with oil passage plate)

【032】24265972 Reservoir

【029】24266056 Reservoir, auto assist

【021】24266918 Reservoir assy-ata

【010】24267597 Plate, control valve body

【003】24291306 Module assy-t/m

【001】24295088 Cap, t/m valve body

【020】25874797 Seal, oil cooler tube (O-ring) (10 parts)
