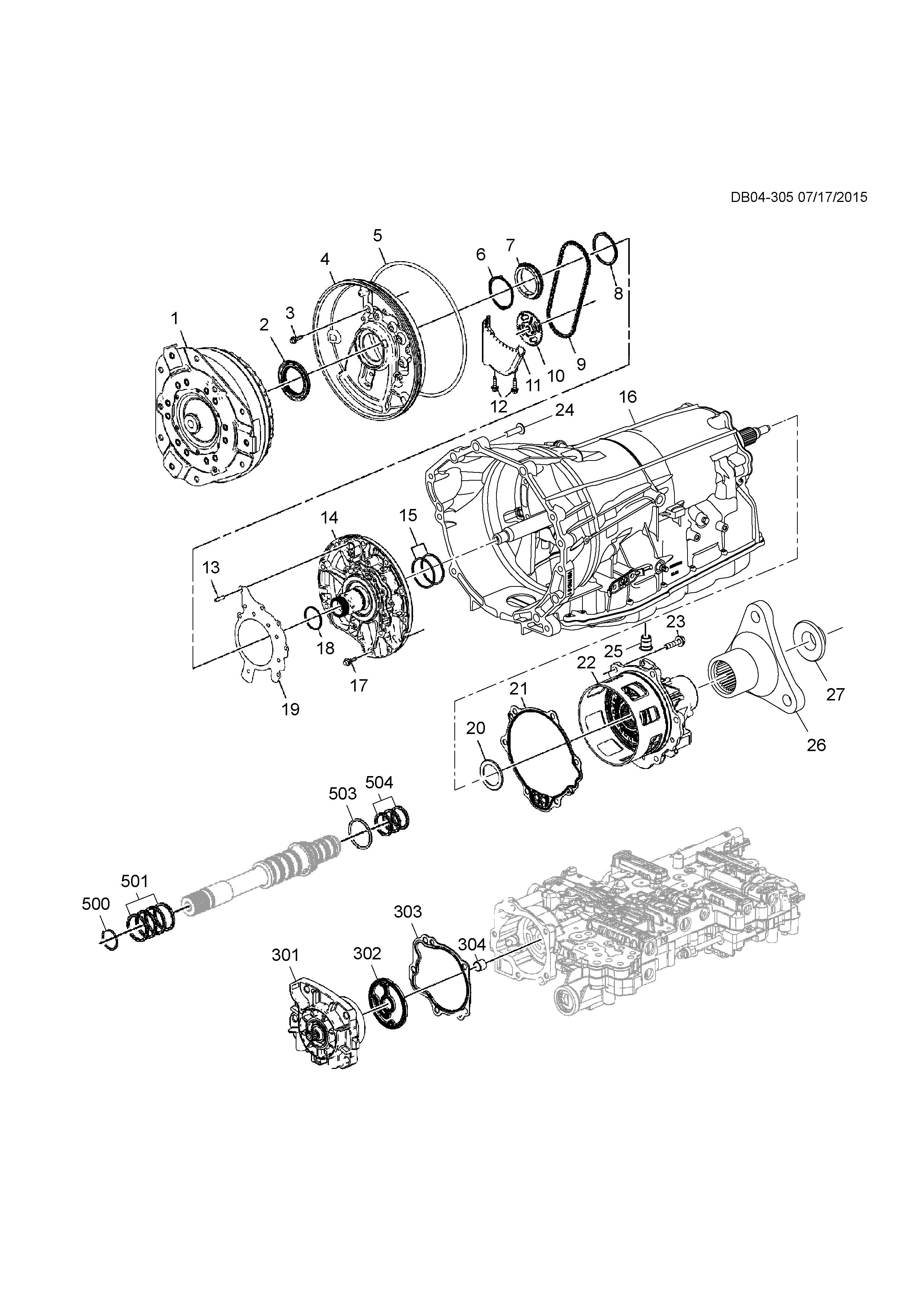

Converter B

【024】11515767 Bolt, rr. a/c compressor carrier (M10X1.5X35.8 mm) (0.004)

【023】11546404 Bolt (part of 1) (M10X1.5X40MM) (4.085)

【017】11547864 Bolt, stator shaft bracket (4.226)

【003】11548201 Bolt (11588714*11548201.) (4.105)

【024】11588740 Bolt (M10X1.5X40.65MM), (for drive motor battery assy) (2.042)

【024】11588741 BOLT/SCREW-TURBO BR-BLS-0

【011】24044915 Deflector, atm oil

【005】24251906 Seal, a/t housing fr cover

【025】24259218 Seal, clutch housing body fluid (* package 1, package 2)

【021】24260919 Seal, automatic transmission housing extension (AC-DELCO #24260919)

【025】24262438 Seal, clutch housing gallery (AC-DELCO #24262438)

【002】24266709 Oil seal, torque converter (AC-DELCO #24266709)

【014】24275616 Bracket, stator shaft (24275616*24282888) (24277230 replaces 24282888) (including 13)

【019】24284849 Gasket, a/t cover (AC-DELCO #24284849)

【503】8662686 Seal, turboshaft (o-ring)
