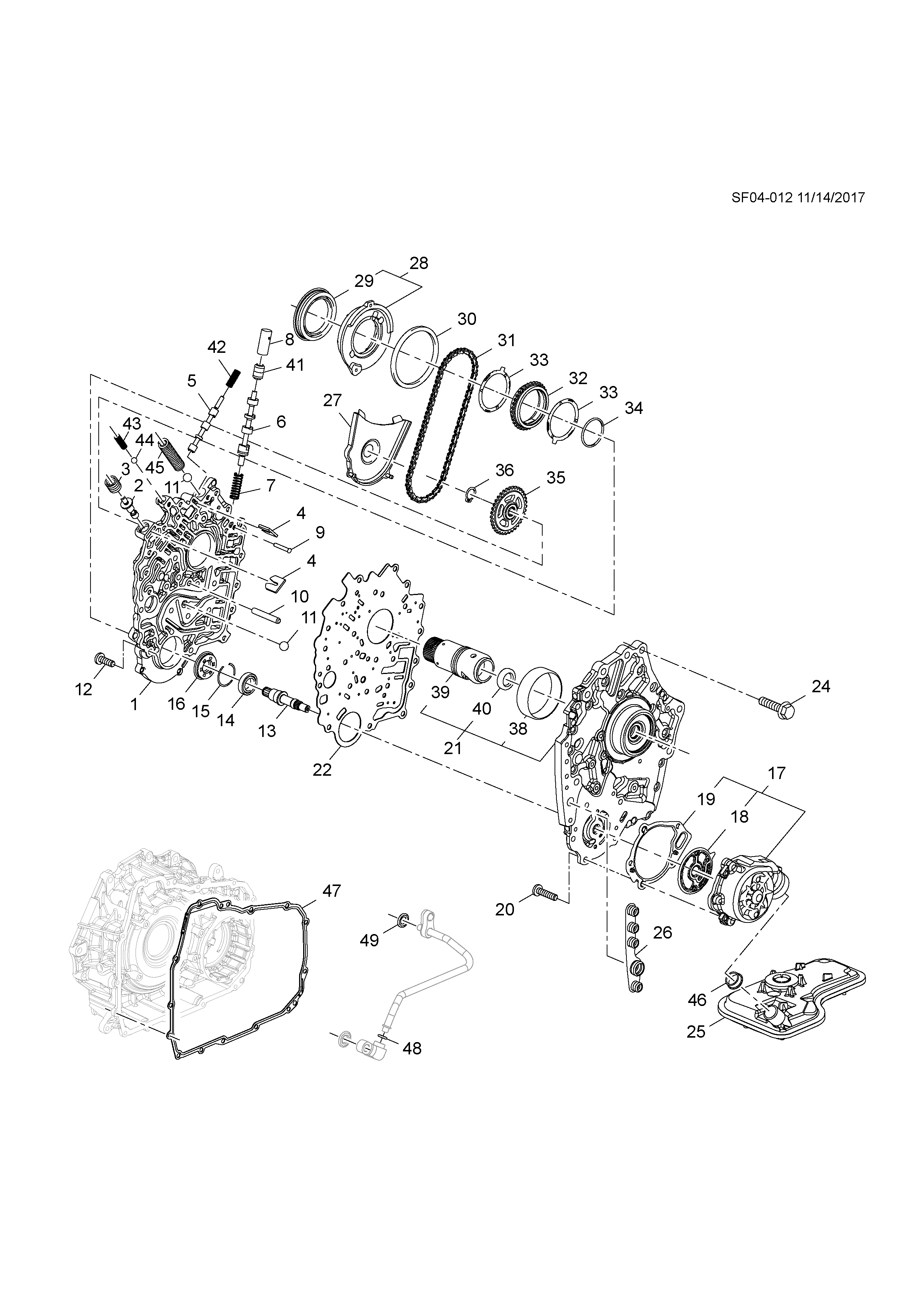

Deflector, transmission

【020】24230699 Bolt (21 parts) (M6X1.0X25.5 mm) (through the cover to the body)

【024】24230707 Bolt, a/t oil pump (M8X1.25X33)

【026】24231193 Grommet, a/t oil pump (for transaxle housing)

【047】24261853 Gasket, tccase (24261853*24266166*24266842) (* service kit 1)

【030】24262090 Seal, converter & differential housing (* service kit 1)

【034】24262272 Ring, torque converter oil seal (24262272 thick) (1.976 thick) (* package 1)

【013】24262274 Shaft assy

【036】24263598 Driven

【047】24266166 Gasket, tccase (24266166*24266842*24261853) (* service kit 1)

【029】24266190 Seal, torque converter (24266190*24262294) (* service kit 1)

【047】24266842 Gasket, tccase (24266842*24261853*24266166) (* service kit 1)

【048】24266918 Reservoir assy-ata

【016】24271146 Grommet (339 of parts) (* package 1, package 2, package 3)

【025】24274649 Oil filter

【034】24274857 Ring, torque converter oil seal (24274857 thick) (1.88 thick) (* package 1)

【001】24287538 Oil pump assy-ata (incl 2-17,20-22,41-46)

【049】25874797 Seal, oil cooler tube (O-ring) (10 parts)
