TURBO LUBRICATION PIPE

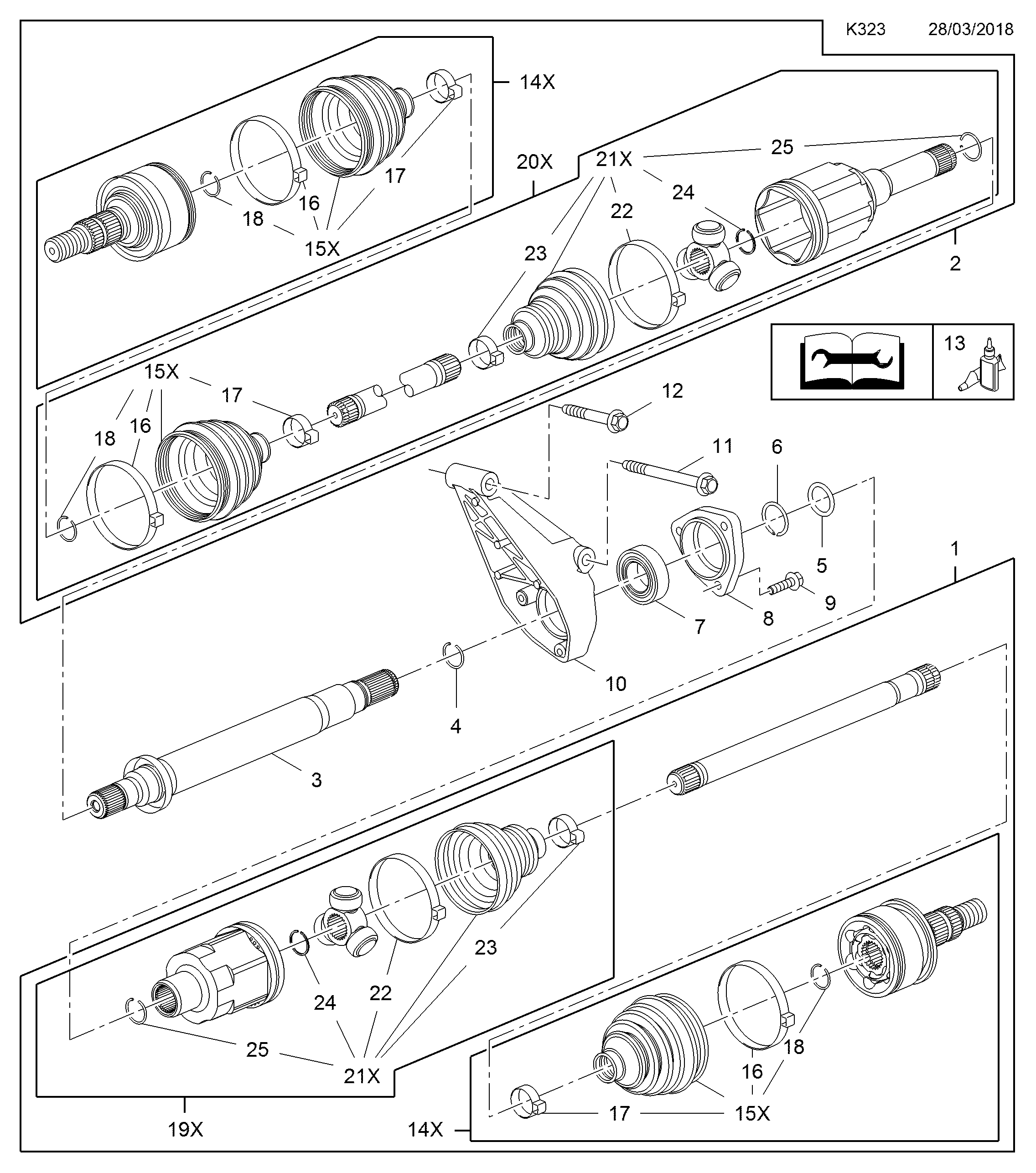

【9】11588725 RADIATOR ASSY

【12】11588746 WASHER

【11】11588754 Bolt, hex flange, M10X1.5X105, 28 threaded, 5 o/d, 4mm P-PT, all boltbody

【10】13248689 Bracket comp., frt axle

【15X】13291734 Kit, front wheel drive shaft cv joint outer boot repair (incl. 2-5) (14,15 parts)

【21X】13291740 Kit, front wheel drive shaft cv joint inner boot repair (including 8-10,12, 25) (r)

【16】13291762 Clamp, front wheel drive shaft cv joint outer boot outer part (1,13) (87) (* package 1, package 2)

【14X】13296184 Kit, front wheel drive outer cv joint (14,15 parts)

【25】13296468 Ring, front wheel drive shaft snap (14,15 parts)

【2】13335122 Shaft, front drive half

【7】13365070 Bearing, front wheel drive intermediate shaft (part 1) (30mm inner diameter, 55mm outer diameter, 16

【8】13365071 Shaft set-fr drive ctr

【3】13369659 Shaft (1 part), drive intermediate (shaft only)

【24】90121202 Ring, front wheel drive shaft snap (18 parts) (27.3 outer diameter) (with lubricant) (circlip B)

【18】9201827 Ring, front wheel drive shaft snap (* package 1, package 3)

【22】9201828 Clip (14,15 parts), front wheel drive shaft cv joint inner boot inner outer

【23】93170250 Clamp, front wheel drive shaft cv joint outer boot inner (3 parts) (1,13) (* package 1, package 2)
