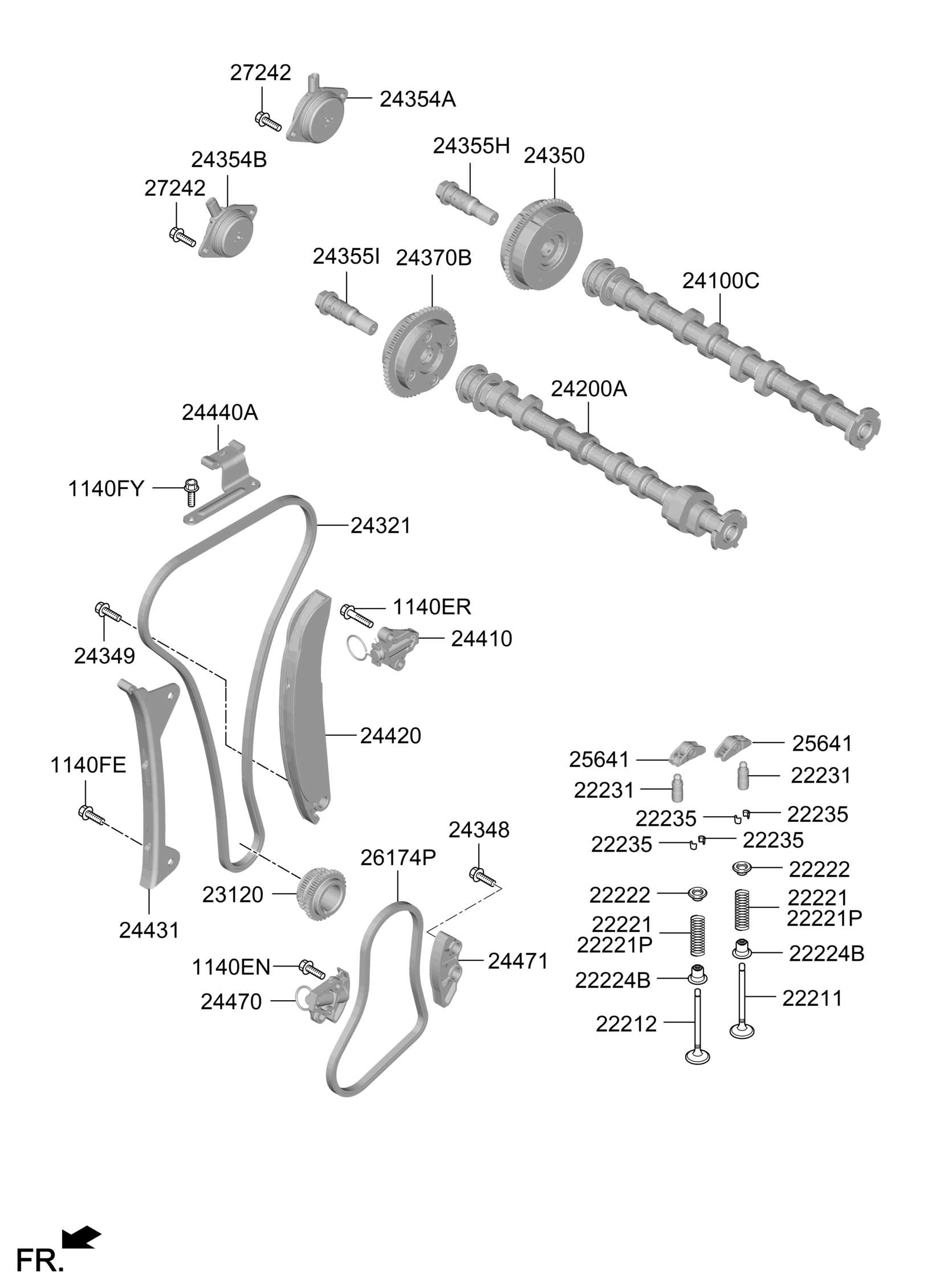

Guide-oil pump
Part number: 24471-2JTA1
Brand: Kia
Related parts
【1140FY】1140306146K BOLT
【1140EN】1140306203 BOLT
【1140ER】1140306253 BOLT
【1140FE】1140308186K BOLT
【22211】222112J000 VALVE, INTAKE
【22212】222122JTA0 VALVE, EXHAUST
【22221】222212J000 SPRING-VALVE
【22221P】222212JTA0 SPRING-VALVE
【22222】222222J100 RETAINER-VALVE SPRING
【22235】222232A800 LOCK-VALVE SPRING RETAINER
【22224B】222242G000 SEAL-VALVE STEM INLET
【23120】231212JTA0 SPROCKET-CRANKSHAFT
【24100C】241002JTA0 Camshaft assy-intake
【24200A】242002JTA0 Camshaft assy-exhaust
【24321】243212JTA0 CHAIN-TIMING
【26174P】243222JTA0 Chain-oil pump
【24348】2434825001 Bolt-timing
【24349】243492E000 Bolt, t/chain
【24350】243502JTA0 CVVT ASSY
【24354A】243542J000 SOLENOID ASSY-INLET
【24355H】243552J000 CENTER BOLT ASSY,IN
【27242】243622E700 BOLT-HEXAGON
【24370B】243702JTA0 Cvvt assy-exhaust
【24354B】243742J000 SOLENOID ASSY-EXHAUST
【24355I】243752J000 CENTER BOLT ASSY,EX
【24410】244102JTA0 Tensioner assy-vlv timing belt
【24410】244102JTA2 Tensioner assy-vlv timing belt
【24420】244202JTA0 TENSIONER ARM ASSY
【24431】244302J000 Guide-chain
【24440A】244402JTA0 GUIDE
【24470】244702JTA0 TENSIONER SET, HYDRA
【25641】245512J000 ARM-SWING
