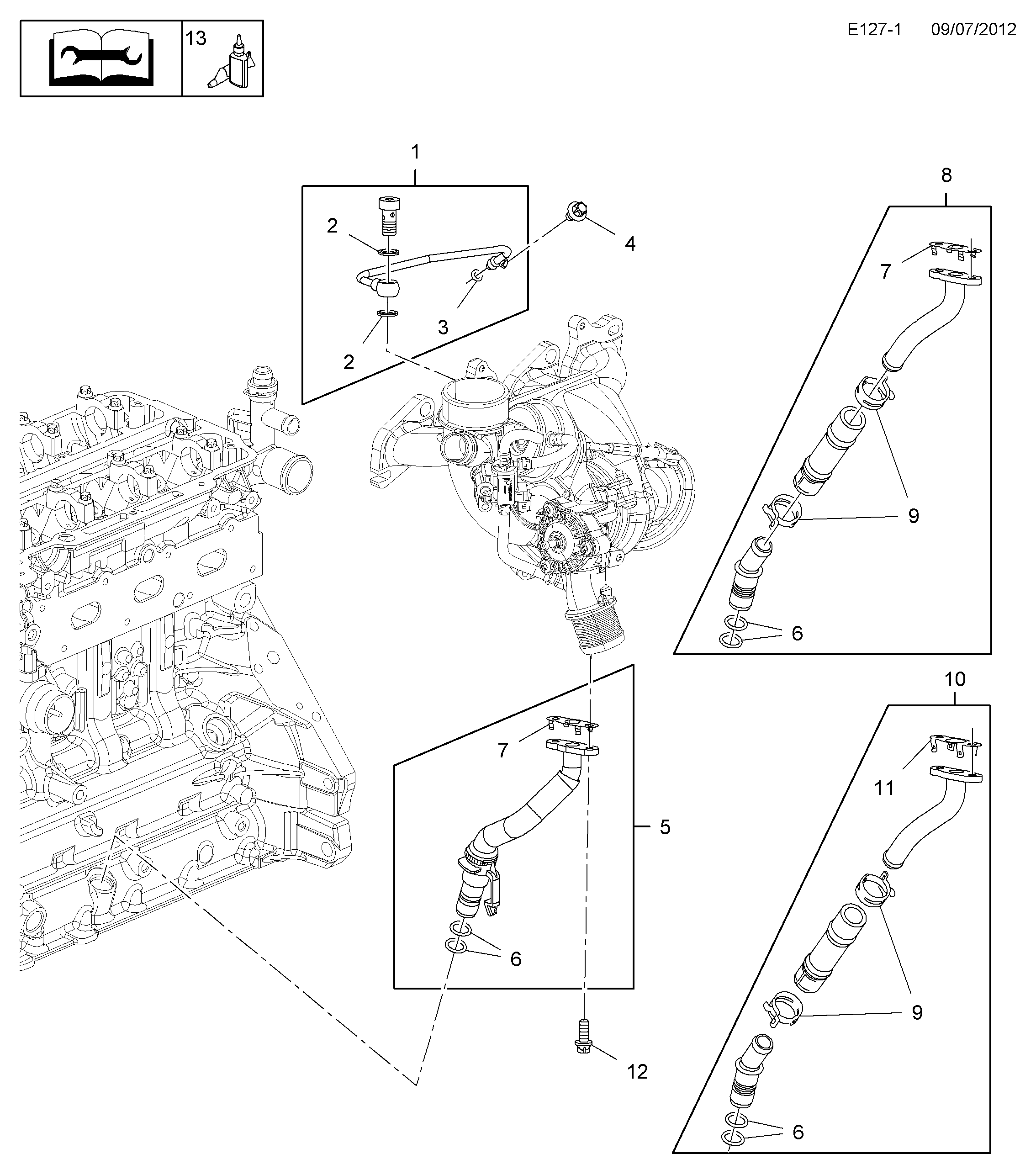

SEAL, ENGINE UNDER

【12】11097981 Bolt, t/ B fr cov head

【4】11101291 Bolt, eng oil cooler mouth pipe (M6X10 mm) (3.265)

【3】55558112 Gasket, turbo oil feed pipe (o-ring) (ex 28) (5.7) (to oil filter)

【2】55567827 Grommet, turbo tube (o-ring) (* comp 1)

【5】55569839 SEAL, ENGINE UNDER

【6】55569840 Seal, turbine oil return pipe (o-ring) (5 parts)

【8】55582042 SEAL, ENGINE UNDER

【11】55585155 Gasket, turbine return pipe (* comp 1)

【10】55587853 SEAL, ENGINE UNDER

【1】55592600 Pipe, turbocharger oil feed (incl. 2, 3, 9) (w/apron)

【9】90572590 Clip (23mm), radiator reserve hose
