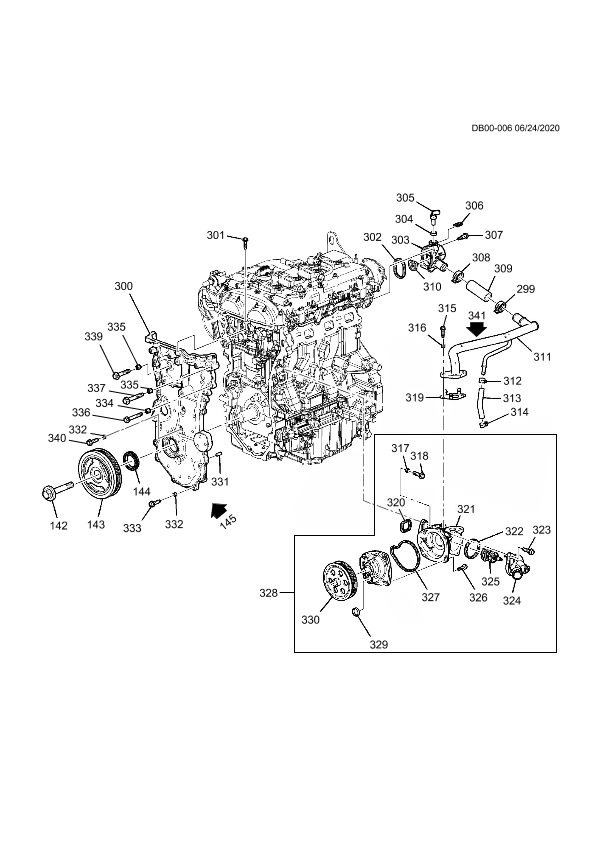

Water outlet (rr drive) (incl. 302,305-307,309,310)

【332】11518792 Retainer, c

【301】11519038 Bolt, oil pan (part of 1) (M6X1X30) (0.724)

【339】11547903 Bolt, engine fr cover (qtr parts) (M10X1.5X45, 15th sleeve-5 outer, jagged)

【337】11547904 Bolt M10X1.5X52

【334】11588327 Bush-bolt, timing chain tensioner

【333】11588714 Bolt/screw-eng harn

【340】11588715 Bolt, water pump (11 parts) (M6X1.0X35 mm)

【336】11588724 Bolt-oil pump sprocket

【307】11611106 Bolt/screw-eng water outlet

【142】12557840 Bolt M16X2X103

【329】12593249 Plug (328 water pump part) (25.68 outer diameter, 10 thickness) (0.293)

【144】12626923 SEAL-OIL,CRANKS

【309】12627054 Hose, thermostat by-pass

【319】12627055 Gasket, thermostat by-pass pipe (part of 311)

【322】12630780 Gasket (324 parts), engine coolant thermostat housing

【304】12639042 Seal, eng coolant temp o-ring (27 parts)

【305】12656444 Sensor, eng coolant temp (ex 25 part) (incl 26) (with 1 seal)

【143】12657638 Damper, crankshaft torsion

【302】12664202 Gasket, eng water outlet

【331】12668731 Pin (part of 33) (diameter 6mm) (0.137)

【313】12683114 Hose, thermostat by-pass (including 312,314) (311 parts)

【311】12683115 Pipe, thermostat by-pass (incl. 313,315,316,319)

【324】25201447 Housing, engine coolant thermostat

【327】25201453 Gasket, water pump inlet (part of 328)

【320】25201460 Gasket (328 parts)

【306】55555982 Sensor assy-coolant temperature

【314】90530642 Clip, water outlet

【312】90572587 Clip, water outlet

【145】93737600 Sealant, pcv (150g) (8.800)

【299】97380237 Clamp, thermostat by-pass hose (309 parts) (1.762)

【341】9985406 Lubricant, pcv 3 parts
