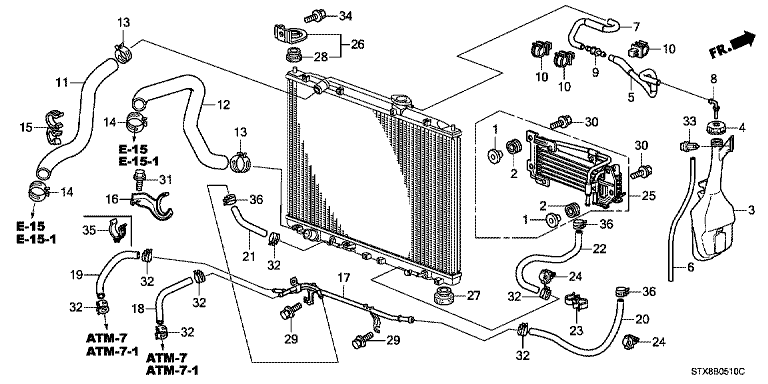

PIPE COMP C,ATF

【1】17259PG6000 Bush mounting

【2】17260PE0670 Rubber mounting

【3】19101RYEA00 Tank, reserve

【4】19102RNAA00 Cap, reserve tank

【5】19103RYEA00 TUBEB,RESERVETA

【6】19104RYEA00 HOSE A,RESERVE TA

【7】19105RYEA00 Tube C, reserve ta

【8】19106RSAG00 JOINT,RESERVE TAN

【9】19107RYEA00 Joint, tube

【10】19108PM0003 CLAMP,RESERVE TAN

【11】19501RYEA00 Hose, water upper

【11】19501RYEA10 HOSE,WATER UPPER

【12】19502RYEA00 Hose, water lower

【12】19502RYEA10 HOSE WATER LOWER

【14】19511PAHT01 CLIP,WATERHOSE

【13】19511PH7003 CLIP,WATER HOSE

【15】19519PR3003 Clamp, water hose

【18】25211RYE006 HOSE,200MM ATF

【18】25211RYEA01 Tube, radiator

【19】25212RYE006 HOSE,235MM ATF

【19】25213RYE007 HOSE-OIL RETURN PIPE

【20】25214RYE006 Hose 470, ATF

【21】25215RAA006 Hose, ATF 155

【22】25215RYE013 HOSE,ATF

【24】25216P72003 CLIP,ATF HOSE

【23】25216PR3000 CLIP,ATF HOSE

【25】25510RYE003 Cooler comp., ATF

【25】25510RYE013 ATF oil cooler

【26】74171SHJA00 Bracket, radiator mounting, upper

【27】74172S87A00 Cushion, radiator mounting, lower

【28】74173SJ4000 Cushion, radiator mounting, lower

【30】90105RYE000 Bolt wash 6X25

【31】90139S2R000 Bolt 6X16, flange

【36】90635PT0802 Clip comp, oil pip

【36】90635RV0003 Clip comp, oil pip

【33】91503SZ3003 CLIP,BPRA

【34】934050601604 BOLT-WASH,6X16
