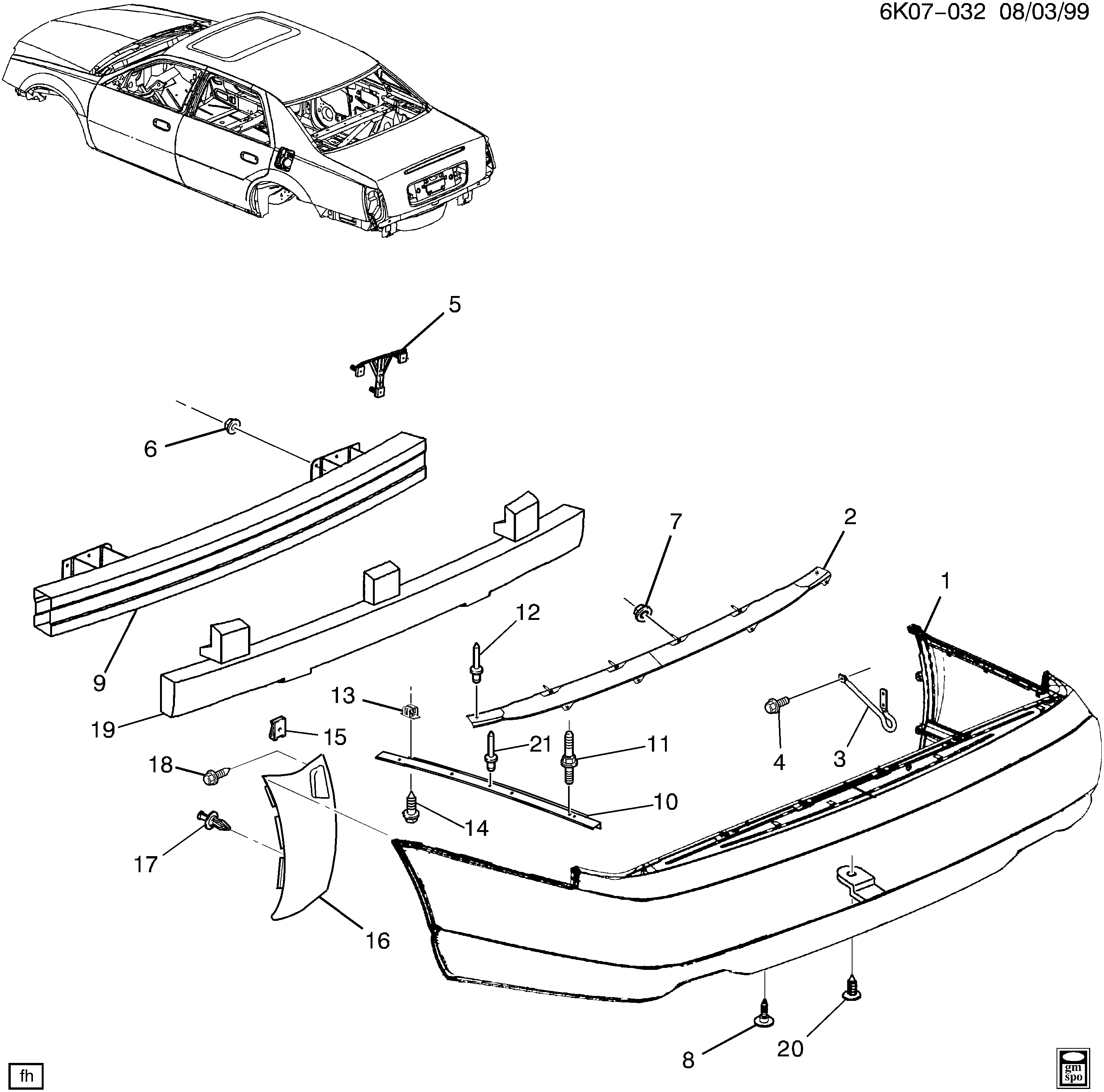

EXTENSION,RR BPR FASCIA

【20】10121502 Cap set, intake manifold (2 pieces, pull up to 41.22) (1 piece) (black) (for 6.25 hole) (5.8 outer d

【15】11513599 NUT,U-TYPE,M4.2X1.41,0.65-3.80 PNL THK,PZ(HTR & A/C CONT)(ACDelco #11513599)

【6】11514596 NUT,HFH,M8X1.25,17.9 OD,738 THK,13MM HEX,10, ZF(A/C CMPR & CNDSR HOSE)(8.915)(AC

【17】11518017 RETAINER,25 LG,20.5 OD,8.0 HOLE,6.2-8.2 PNL,NYLON,6/6,BLK(FRT FOG LP)

【4】11570082 BOLT,HFH,M8X1.25X22,19 THD,18 OD,10.9,GMW3359(OIL FIL TUBE)(ACDelco #11570082)

【13】11570654 NUT,STRG COL DA CVR(M4.2X1.41)(PUSH-IN NUT)(FITS 8.75 SQ HOLE)(9.665)

【14】11589015 BOLT,HWH W/FL WA M4.2X1.41X20,12.5 O.D.,DOG PT,6010M,7253M(STRG COL WRG HARN CON

【7】11609411 Nut (m6x1x5.7mm) (hexagon-non-plated GMW3200) (8.917)

【18】11611881 Screw, pan, M4.2X1.41X13 otr.11, ISO 2702, GMW18730, tapping

【13】20733729 Hinge assy-rr dr

【12】21030249 Packing, expansion, length 21, o/d 20, 8.0 hole, 3.0-5.0 plate, nylon 6/6, black (rear wheel house l

【8】25631448 Retainer, front bumper rivet
