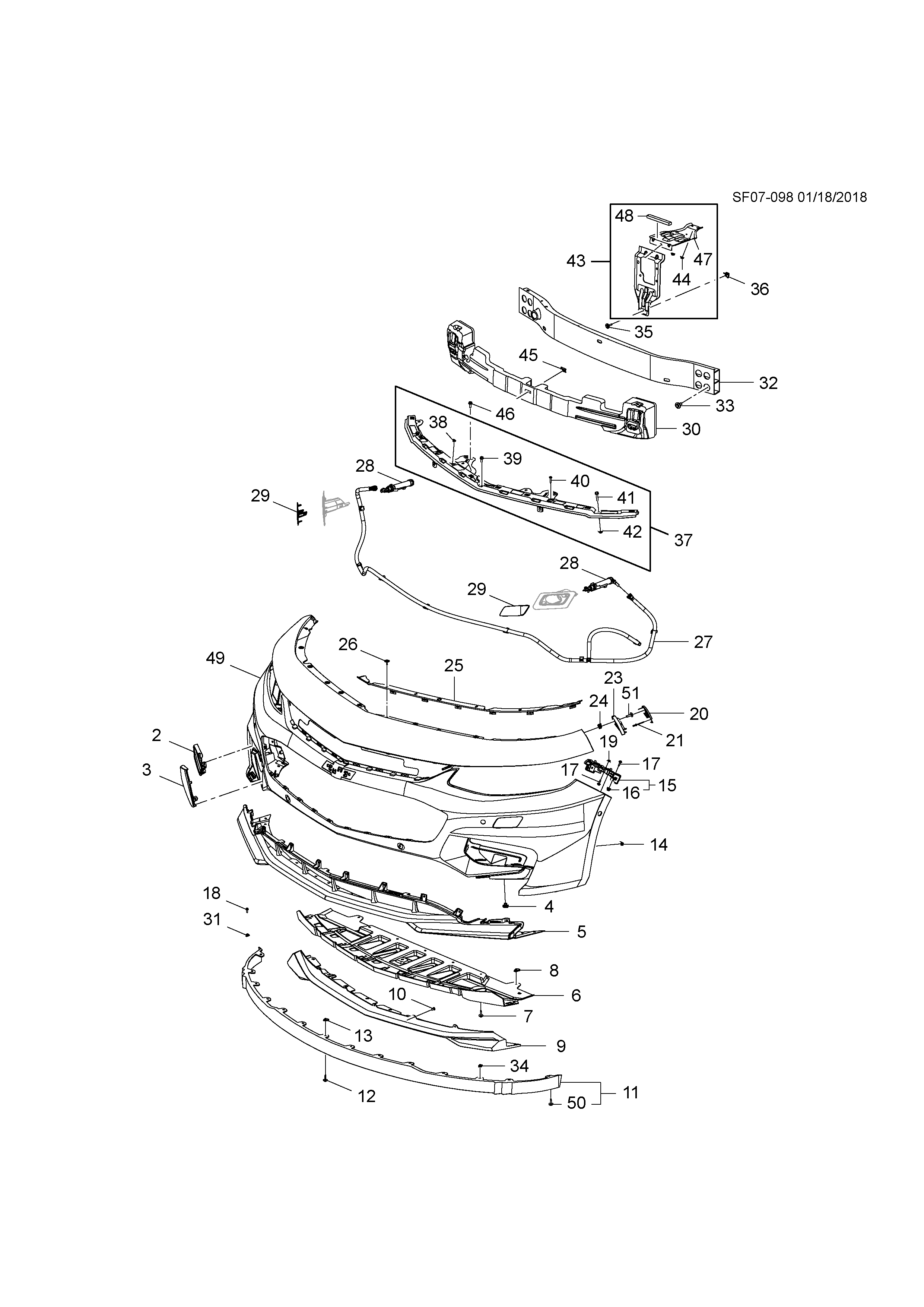

Bumper upper fr

【034】11515638 NUT, U-TYPE (M4.2X1.41X10.5)

【051】11519383 Bolt, a/c evaporator tube (M6X1.0X23MM) (washer diameter 16.8) (8.900)

【040】11547283 Bolt (49 parts) (10.772)

【004】11547341 Clip (plastic), rr. bumper (1.269)

【026】11548270 Bolt, rear wheel house patch (with a washer of 19.78 diameter)

【014】11548579 Nut, exhaust tail pipe insulator (1.269)

【036】11548673 Radiator air lwr

【039】11549088 Bolt, front bumper skin support, center (l) (37 piece) (bracket only)

【041】11549089 Bolt, front bumper skin support, center (l) (37 piece) (bracket only)

【033】11549423 Bolt (POA stay stud bolt) (maximum diameter: 23.74) (14 parts) (0.659)

【016】11569960 RIVET, RR BPR BAR

【017】11570498 BOLT, HX HD W/FLAT

【050】11570499 Bolt (M4.2X1.41X25.8MM), (long 29) (2)

【010】11602560 Bolt, radio control (M5 * 1.80*14.0) (11.500)

【024】11610544 Panel-fr

【044】11611523 Nut (U) (push) (insert 8.75 hole) (nut) (9.675)

【028】22994318 Nozzle l

【028】22994319 Nozzle l

【043】23328043 Arm fr bumper

【015】23352078 Rivet, fr bpr bar

【015】23352079 Rivet, fr bpr bar

【011】23397792 Air, fr bumper

【020】23424576 Rivet, fr bpr bar

【020】23424577 Rivet, fr bpr bar

【003】23478373 Panel-fr

【003】23478374 Panel-fr

【023】23478387 Reinforcement, front bumper skin (

【023】23478388 Reinforcement, front bumper skin (

【002】23478393 Panel-fr

【002】23478394 Panel-fr

【025】26210375 Mldg (r), cowl top

【025】26210376 Mldg assy, fr bpr upr (l)

【029】26688590 Cover, headlamp washer nozzle hole

【029】26688591 Cover, headlamp washer nozzle hole

【030】26691683 Cowl top fr bpr

【005】26694691 Rivet, fr bpr lwr

【009】26694692 Reinf-fr bumper

【006】26694693 Reinforce, front bumper skin, lower (PED RPO under cover)

【049】26694695 Rivet, fr bpr (incl 2-6, 8-11, 13, 18, 21, 23, 25, 27-30, 49)

【027】84053864 Hose l

【037】84338029 Bracket (including 38-42), center

【045】9053395 Nut, rr. bumper lower mldg

【046】90765173 Bolt, telephone control module (2.812)

【021】92139150 Rivet, fr bumper
