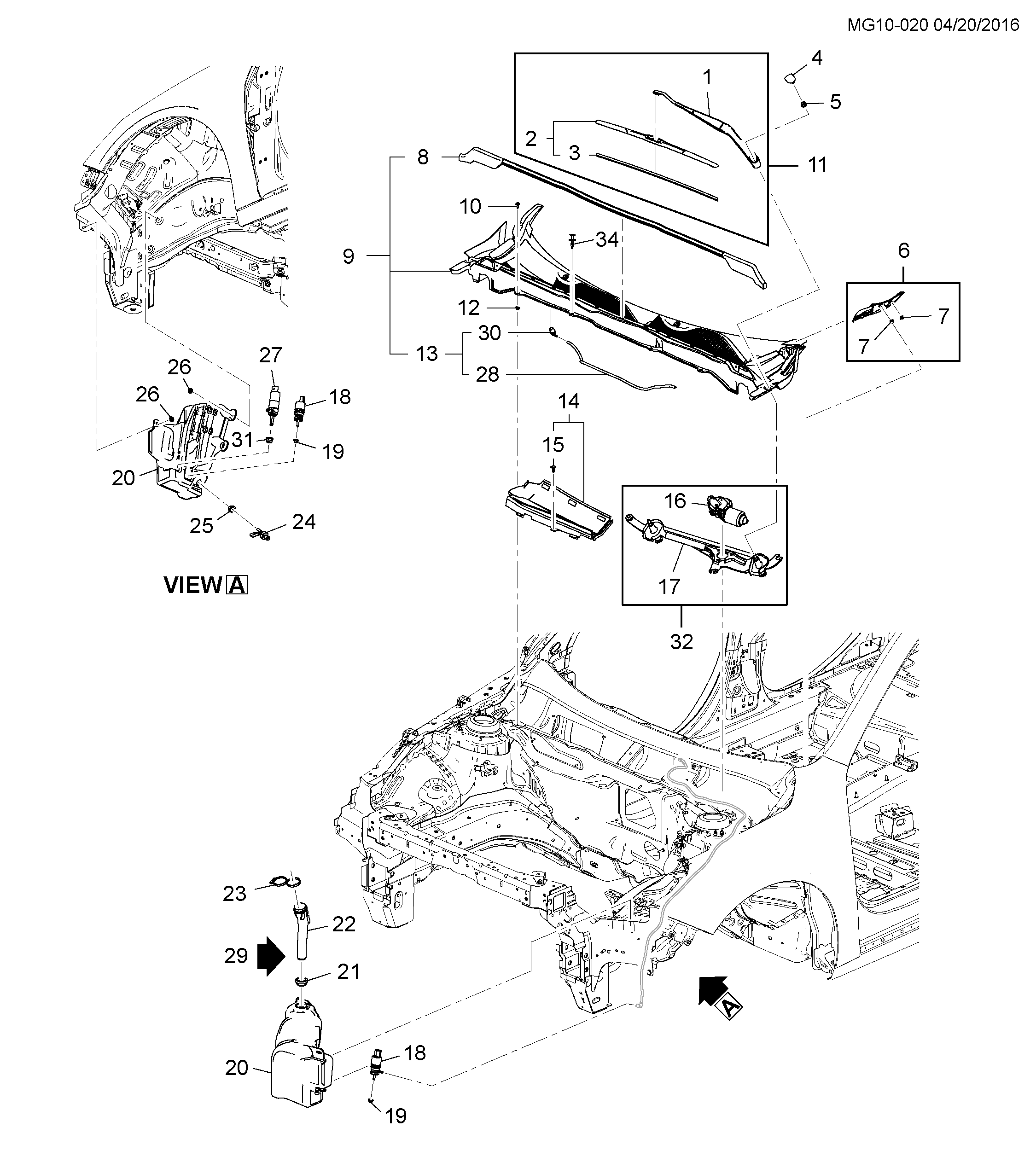

Module assy-windshield wiper system (incl. 16,17)
Part number: 26228610
Brand: Chevrolet
Related parts
【026】11561645 Nut (M6X1.0MM) (6 ), cowl
【015】11589181 Plate set, air intake (part of 30) (nylon) (2.383)
【034】11589291 Clamp, eng harness (press) (black) (34.8) (6 )
【005】11609634 Nut (M10X1.25 mm)
【012】11611523 Nut (U) (push) (insert 8.75 hole) (nut) (9.675)
【023】13227300 CAP, WSWA SOLV CNTNR
【024】13248197 Sensor, windshield washer tank level
【031】13250288 Grommet, h/l washer pump
【020】13313664 Tank, windshield washer washer
【022】13315610 TUBE
【018】13593730 Pump-w/shld washer
【006】20833525 Extension, air intake grille (incl. 7)
【006】20833526 Extension, air intake grille (incl. 7)
【013】20910500 Hose (9 parts) (including 28,30) (with nozzle)
【017】20980561 Gear, windshield wiper (32 piece)
【016】20980563 Motor wiper
【019】22039457 GROMMET, WINDSHIELD WASH
【001】22744376 Arm wiper
【004】22793593 CAP, WSW ARM NUT
【007】22797808 Ring, intake grille extension
【001】22846939 Arm wiper
【009】22937516 Plate, air inlet (add sponge) (including 8,13)
【014】23158711 Plate, air intake
【002】23365874 Blade, windshield wiper (incl 24)
【002】23365875 Blade, windshield wiper (part of 11)
【008】25911885 Wthstp (9 parts), hood rr
【018】84978194 Pump assy-windshield washer
【025】90276310 Grommet, w/shld washer liquid level switch
【021】9114703 Protector, windshield washer tank (inner diameter 32mm)
【002】93734148 FRONT WIPER BLADE RH
