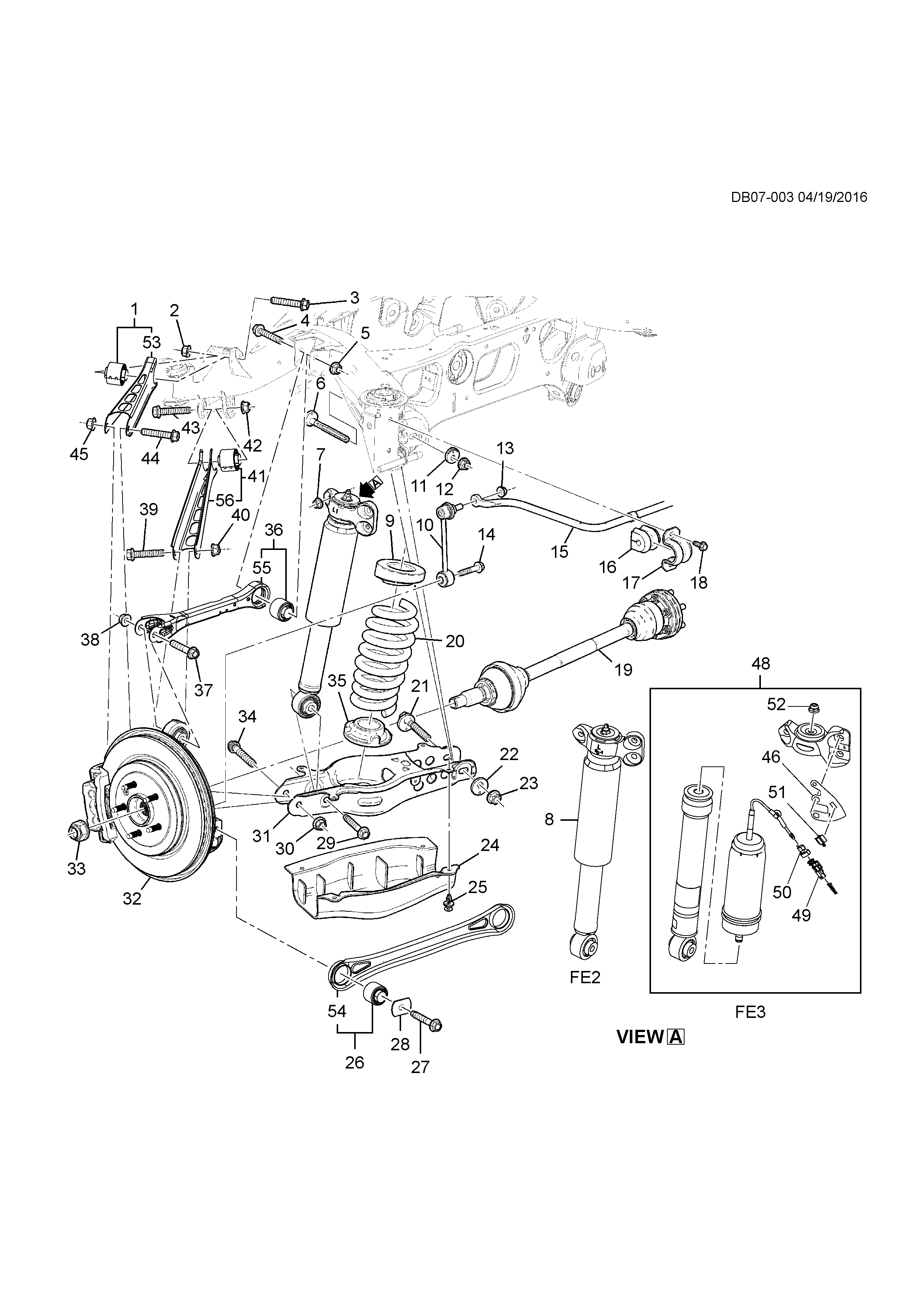

Shaft (09064273 replaced by 26239979 and 13217120) (r)

【013】11516077 Nut (M10X1.5MM) (6.05)

【045】11516078 Nut (M12X1.75 mm)

【023】11516382 Nut (23427528 is 84369476 and 11611841 and 11611709 and 11611696

【021】11547215 Bolt, lower cam

【022】11547262 Washer, lower control arm, inner (lower transverse cam)

【025】11561645 Nut (M6X1.0MM) (6 ), cowl

【018】11570172 Bolt, rr stabilizer (1.060)

【025】11571109 Pin (2 pieces, pull length 33.58 maximum) (12.944)

【018】11588738 Bolt, hex flange, M10X1.5X30.4, threaded 22.5, o/d 22.3, 10.9, GMW3359, M-POINT

【014】11588744 Bolt, transmission (M10X1.5X60.75 mm) (2.277)

【029】11609598 Bolt (M12X1.75X80.9 mm), rr. transmission lower control arm

【044】11610908 Bolt, rear suspension trailing arm bracket (service) (* see PERM note)

【004】11610909 Bolt, rear suspension trailing arm (inner) (total length 86.4) (M12X1.75X71MM) (4.085)

【028】11611265 Washer, rr susp u

【006】11611276 Bolt, rear suspension link, inner (M12X1.75X135, threaded 95) (o/d 33) (w/cam washer 11611277)

【011】11611277 Washer, rear suspension link inner (outer 33, inner 12, 5.3 thick) (CAM) (to 11611276)

【022】11611695 Washer (l, l 14.5)

【021】11611696 Bolt (M14X2X101, threaded 70), outer 39, inner

【030】11611709 Nut (lower lateral outer), outer lower control arm, rh/lh

【034】11611841 Bolt, lower control arm outer (lower transverse outer), rh/lh

【033】13208672 Nut (6.056), rh/lh

【033】13217120 Nut, front wheel drive shaft (outer diameter 50mm)

【026】20755795 Link, rr. suspension adj (ordered with 11609598 & 11611276)

【016】20761162 Insulator, rear stabilizer shaft

【015】20761166 STABILIZER,RR

【015】20761167 STABILIZER,RR

【009】20767137 Spacer, coil spring, rear

【024】22823592 Cover, rear suspension lower control arm (ordered with 4 x 11589293)

【024】22823593 Cover, rear suspension lower control arm (ordered with 4 x 11589293)

【017】22870486 Clamp, stabilizer (* repair kit 1)

【041】22934959 Trailing arm (lower) (ordered with bolt 11610908 (q.2)

【056】22934960 Link (l), rr susp part 41

【036】23105024 Arm, rear suspension upper control (ordered with 11610908 & 11610909) (code 2125 502424)

【055】23105025 Link (r), rr susp part

【020】23122009 Spring, coil (76 n/mm 6290 @ 259.6) (r)

【008】23172624 Shock absorber (w/belt support) (20140408 use front) (r)

【001】23214245 Link l, rr susp

【031】23282358 Arm, rear suspension lower control

【031】23282359 Arm, rear suspension lower control

【020】26208634 COIL SPRING R

【020】26208635 COIL SPRING R

【048】84230446 Damper, rear (incl. 46,49-52)

【035】84369477 Spacer, rear coil spring, lower (20767136 to 84369477 & 11611841 & 11611709 & 11611696

【008】84446367 Shock absorber (with support) (A1SL-S the rear shock absorber module) (r)

【008】84446368 Shock absorber (with support) (A1SL-S the rear shock absorber module) (l)

【035】84570395 Spacer, rear coil spring, lower

【035】84570396 Spacer, rear coil spring, lower

【010】84978592 LINK, RR STAB SHF

【019】9064272 Shaft, front wheel drive
