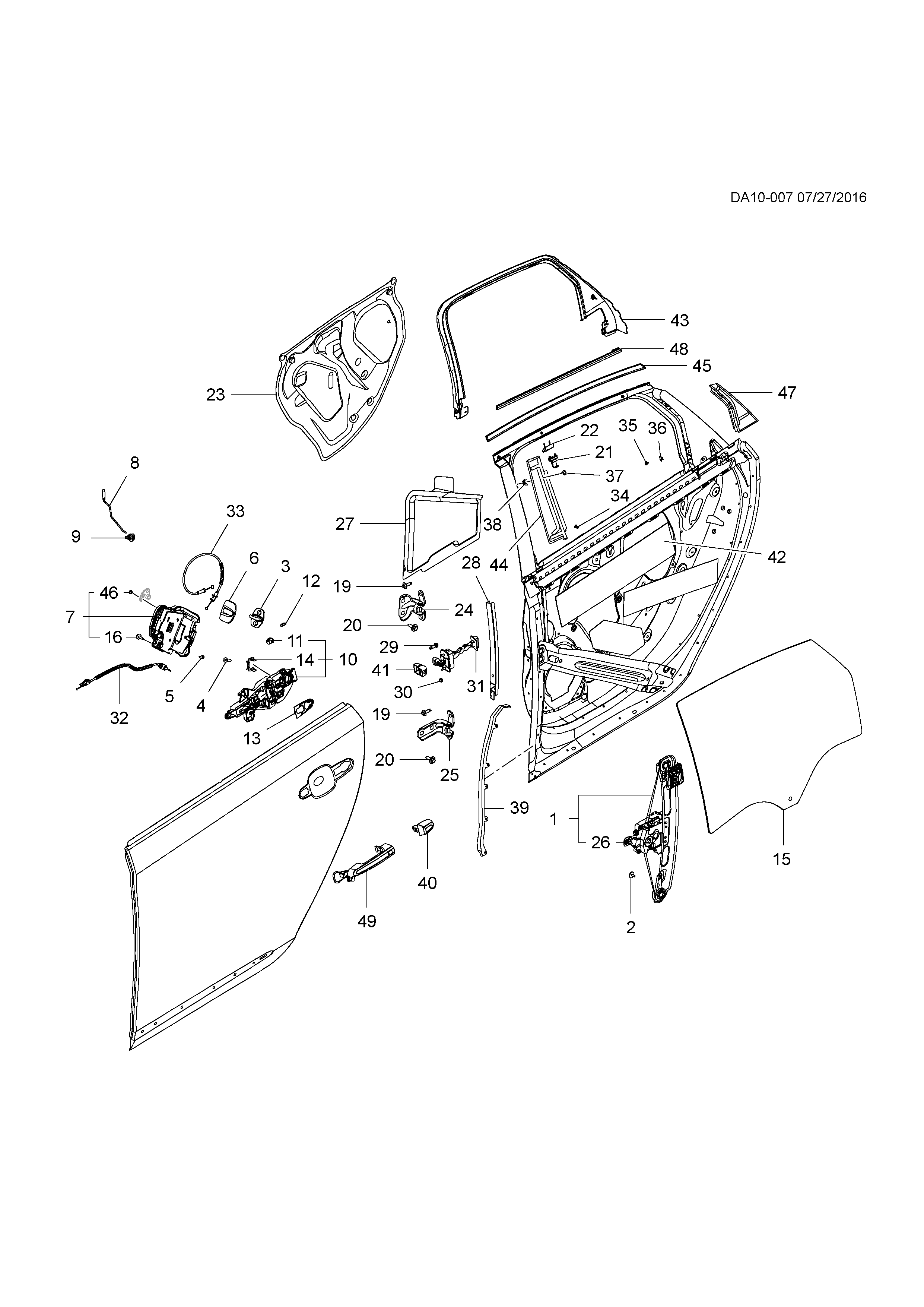

Garnish (l), rear door window frame

【046】10399379 Clip (o/s 9.7), rh/lh

【030】11516075 Nut (M6X1X7 mm) (hexagon flange lock) (3.342 in diameter)

【004】11518445 Bolt, rr. door lock (M8X1.25X25) (8.908)

【005】11546703 Bolt, r. fr. side door

【020】11561763 Hinge assy-fr dr

【029】11570007 Bolt (M8X1.25X23 mm), link

【002】11571264 Bolt, rr. door window regulator (M6X1X15 mm) (10.783)

【037】11609459 Bolt (M4.2X1.4X13), sun (8.900)

【038】11611523 Nut (U) (push) (insert 8.75 hole) (nut) (9.675)

【030】11900428 Nut (dia. 5mm) (3.403)

【012】13500936 Plug, hole (for front side door service hole)

【024】13501713 HINGE

【024】13501714 HINGE

【025】13501716 HINGE

【013】13501804 Spacer, lock cylinder bezel

【010】13509612 Bracket, side door outside handle (including 8,21)

【010】13509619 Bracket, side door outside handle (including 8,21)

【049】13509689 Handle, r. rr. side door (for details, see set 10 hardware, rear door part 1st)

【010】13512735 Bracket, side door outside handle (including 17, 18)

【010】13512742 Bracket, side door outside handle (including 17, 18)

【007】13546587 Latch, rear door (incl. 12)

【007】13546591 Latch, rear door (incl. 12)

【049】13550863 Handle, back door outside

【006】13574802 Cover, rear door lock striker (10.569)

【007】13586156 Latch, rear door (for front 2013/1/9) (incl. 16, 46)

【003】13591436 Striker, front side door lock

【049】13592175 Handle, rr s/d o/s

【049】13592176 Handle, rr s/d o/s

【040】13594376 Cover, side door lock cylinder (10.552)

【040】13599547 Cap, door lock cylinder, rh/lh

【034】20699808 Moulding set, r. rr. door spare (14.875)

【042】20778243 Silencer, rear door (2*112*535) (2*112*535, for saic general motors only)

【023】20864677 Deflector, l. rr. door

【023】20864678 Deflector, l. rr. door

【001】20905690 Regulator, rear door window (incl 26)

【001】20905691 Regulator, rear door window (incl 26)

【032】20908480 Cable assy-rr dr I /s hdl

【008】20908485 Pin, parking rear

【008】20908486 Pin, parking rear

【009】20908489 Clip, r. fr. side door lock rod

【022】22760292 Hook, r. rr. window inner

【021】22760294 Hook, l. rr. window inner

【026】22788195 Motor, window regulator

【026】22788196 Motor, window regulator

【015】22894981 Window assy-rr dr

【015】22894982 Window assy-rr dr

【041】22915415 Cap, front side door stop link, rh/lh

【043】22921225 Mldg assy-rr dr

【043】22921226 Mldg assy-rr dr

【043】22921227 Mldg assy-rr dr

【043】22921228 Mldg assy-rr dr

【033】23153104 Cable assy-rr dr o/s

【031】23190012 Link, door stopper, rear

【039】23197303 Seal, r. rr. fr

【039】23197304 Seal, r. rr. fr

【048】23209786 Mldg assy-rr dr

【048】23209787 Mldg assy-rr dr

【045】23209790 Mldg assy-rr dr upr

【045】23209791 Mldg assy-rr dr upr

【027】25851686 Spacer, side door (for inner door panel)

【044】26685471 Garnish, r. rr. door window frame

【044】26685472 Garnish, r. rr. door window frame

【028】26685475 Spacer, rear door window front run

【030】9004536 Nut, intake manifold (8mm diameter) (9.242)

【025】DY13501715 Hinge assy-fr dr (10.460)
