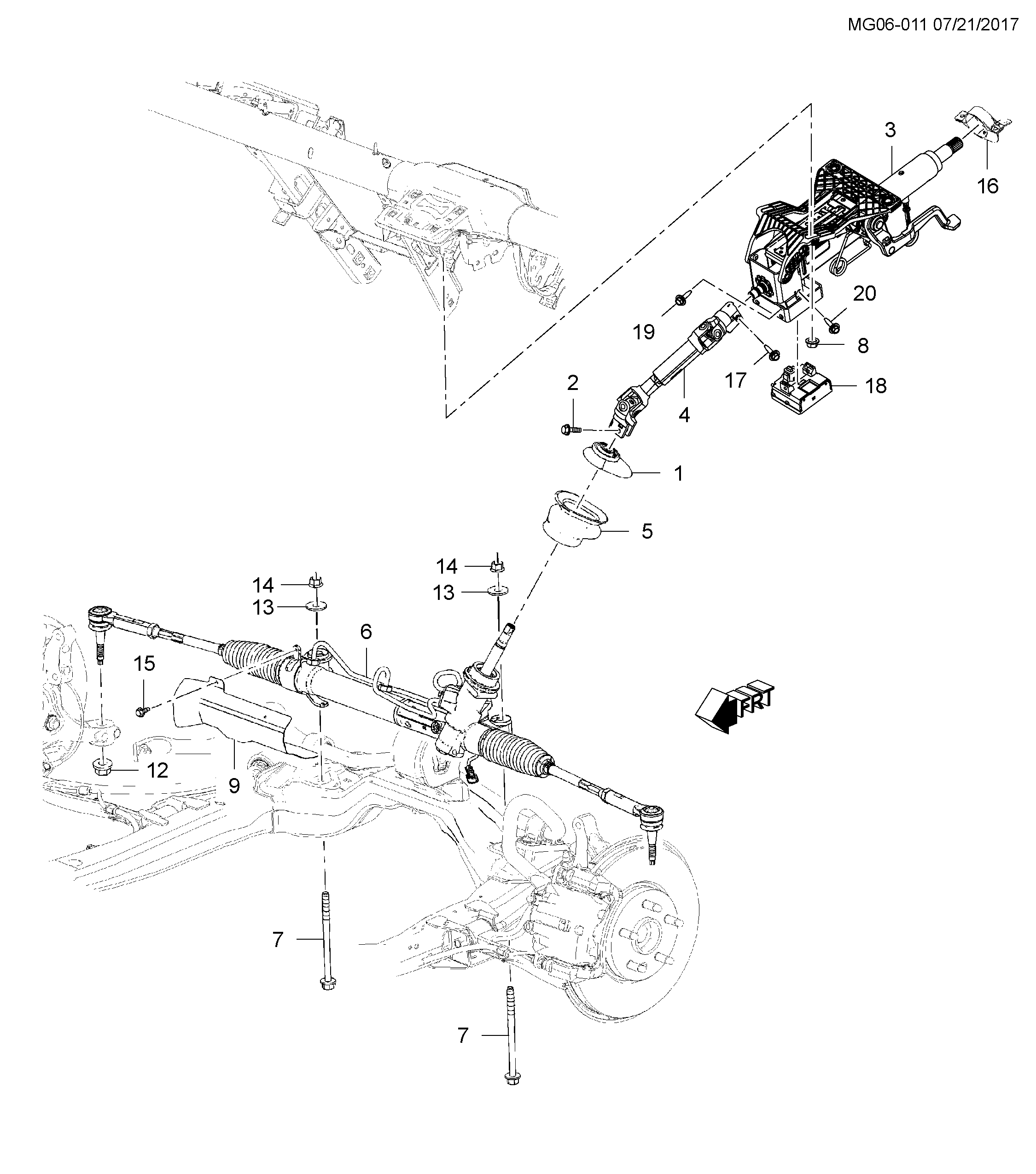

COLUMN ASSY-STEERING

【013】11071812 Grommet, steering

【008】11516650 Nut, steering column clamp (8.917)

【014】11546593 Nut, r/susp link inner (m12x1.5mm) (5.383)

【017】11571223 Bolt (M8X1.25X36 mm), center steering shaft upper

【020】11588710 Bolt, engine wire snap bracket (M6X1X13 mm) (3.602)

【012】11609282 Nut, strg tie rod (M12X1.75 mm) (* package 1) (7.240)

【019】11611150 Bolt (M1X16X16.6 mm), rh/lh

【004】13219343 Shaft, center steering

【007】13253472 BOLT

【016】13261364 Set (2.559), power seat wiring harness connector

【009】13266539 Insulator, steering heat

【015】13274768 Bolt, heat shield (M6X1X16 mm)

【006】13330659 Gear, strg (incl. 1-13)

【006】13366874 Gear, steering (w/motor) (incl. 1-3,5-13)

【006】13376584 Gear, steering (incl. 1-3,5-13)

【006】13376587 Gear, strg (incl. 1-13)

【006】22943370 Gear, steering (incl. 1-3,5-13)

【006】22943374 Gear, strg (incl. 1-13)

【005】22968806 Seal, steering column facia, outer

【001】23170898 Seal, steering

【018】23377962 Control module, steering column lock

【018】26214736 Control module, steering column lock

【003】39019175 COLUMN ASSY-STEERING

【003】39019177 COLUMN ASSY-STEERING
