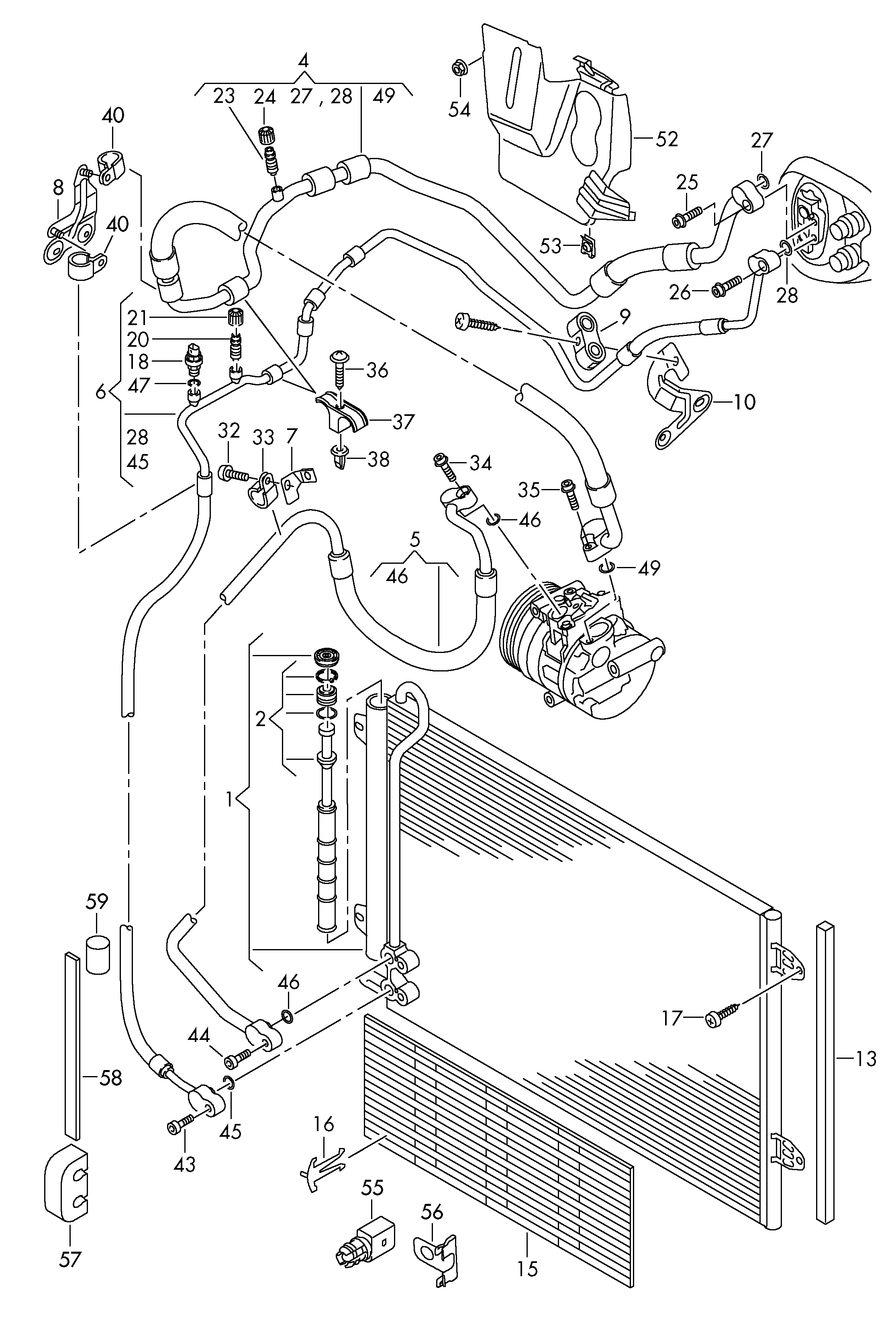

Refrigerant pipe

【37】1J0820774A 1K0253141E

【18】1K0959126E Sensor assy-pressure

【13】321819017 Grommet

【24】3C0820231 Cap, guard

【1】3C0820411F CONDENSER / VW/PASSAT

【1】3C0820411H Condenser, a/c cont

【8】3C0820536 Bracket refrigerant pipe

【8】3C0820536A BRACKET-ENGINE SUPP*

【21】3C0820581 Cap, guard

【5】3C0820721N Coolant hose Compressor-refrigerant Condenser)

【5】3C0820721P REFREGERANT LINE/TOUREG/Q7

【5】3C0820721Q Coolant hose Compressor-refrigerant Condenser)

【6】3C0820741AJ Coolant hose Valve, expansion Dryer)

【6】3C0820741AK Coolant hose Valve, expansion Dryer)

【4】3C0820743BG REFLASH PIPELINE

【4】3C0820743BQ Refrigerant pipe

【15】3C0820746 Grille protector

【7】3C0820769C Bracket refrigerant pipe

【2】3C0898191B Dryer:

【52】3C1820897A HEAT SHIELD

【45】3D0260749C Seal ring

【16】3D0867646 CLIP

【46】4E0260749A SEALING RING

【27】4E0260749B SEALING RING

【56】5M0820536A BRACKET-ENGINE SUPP*

【47】8E0260749 SEAL

【49】8E0260749C SEALING RING

【23】8E0820855 Valve core

【55】8Z0820535 Sensor, ambient temperature

【54】N01508210 Nut, hexagon

【40】N0206517 CLIP

【40】N10236603 CLIP

【44】N10414402 Bolt, hexagon

【33】N10486501 Bolt, hexagon no.1

【36】N10659501 Bolt, hexagon no.1

【53】N90245502 Clevis

【17】N90817003 Bolt, hexagon no.1
