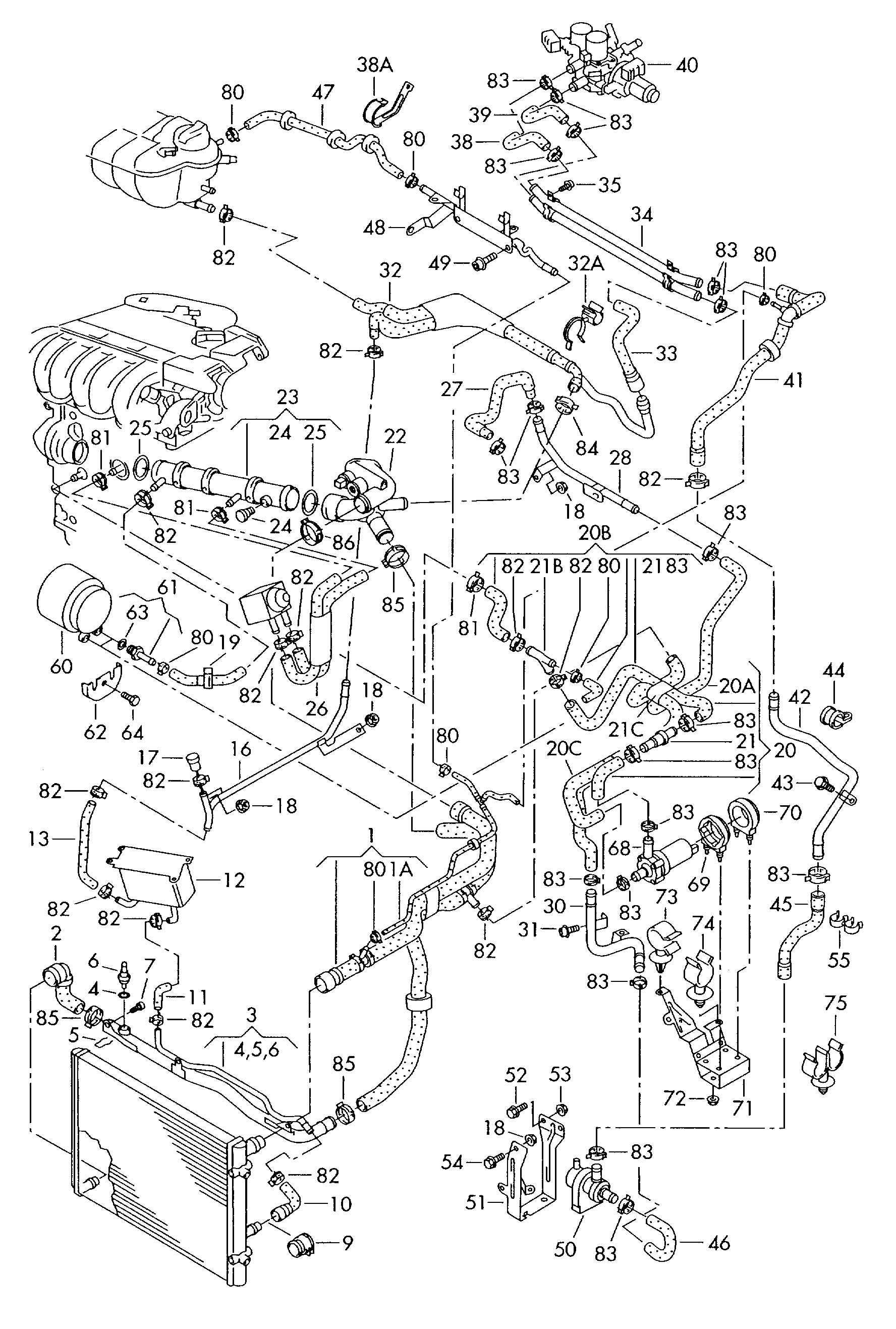

Coolant pipe

【23】022121050A Coolant pipe

【5】032121142 Spring, detent

【70】035959209F Mounting rubber

【62】057121077 BRACKET-ENGINE SUPP*

【61】059121131B Water connection

【69】066959209 Mounting, rubber w/stopper

【6】06A919501A COOLANT,TEMP SENR/SEAT/SKDA/VW

【21B】1J0121087E Distributer

【17】1J0121324 EXPANSION PLUG-65MM M271

【21】1J0122351 VALVE-NON RETURN

【13】3D0121058E Coolant hose Oil cooler Tube, cooling)

【38】3D0121073H Coolant hose

【21C】3D0121093G BRACKET-ENGINE SUPP*

【11】3D0121096K Coolant hose Oil cooler Tube, cooling)

【39】3D0121157H Coolant hose

【1】3D0122049M Water hose

【2】3D0122051R Water hose Couplpiece (Cooler/tube)

【32】3D0122073AE Coolant hose

【10】3D0122096 Water hose Couplpiece (Cooler/tube)

【41】3D0122157T Coolant hose (Freezing pipe Pipe-freeze)

【68】3D0965561D ELECTRIC WATER PUMP-GOLF VI

【18】N01508213 Nut, hexagon

【52】N10049308 Six angle combined bolt

【54】N10124408 BOLT

【25】N10139201 O-ring 34,5X3,55

【64】N10156206 Bolt, hexagon

【55】N10291801 BRKT-HOSE

【35】N10335202 Bolt, hexagon

【4】N90316801 SEAL

【80】N90686701 Clip-band

【82】N90686901 Clip-band

【83】N90687001 Clip-band

【84】N90687101 Clip-band

【85】N90687201 Clip-band

【63】N90783401 SEAL

【53】N90798805 Nut, hexagon

【7】N90817003 Bolt, hexagon no.1

【81】N90926401 Clip-band

【86】N90926501 Clip-band

【49】N91073301 Hexagon insert Screw, flat
