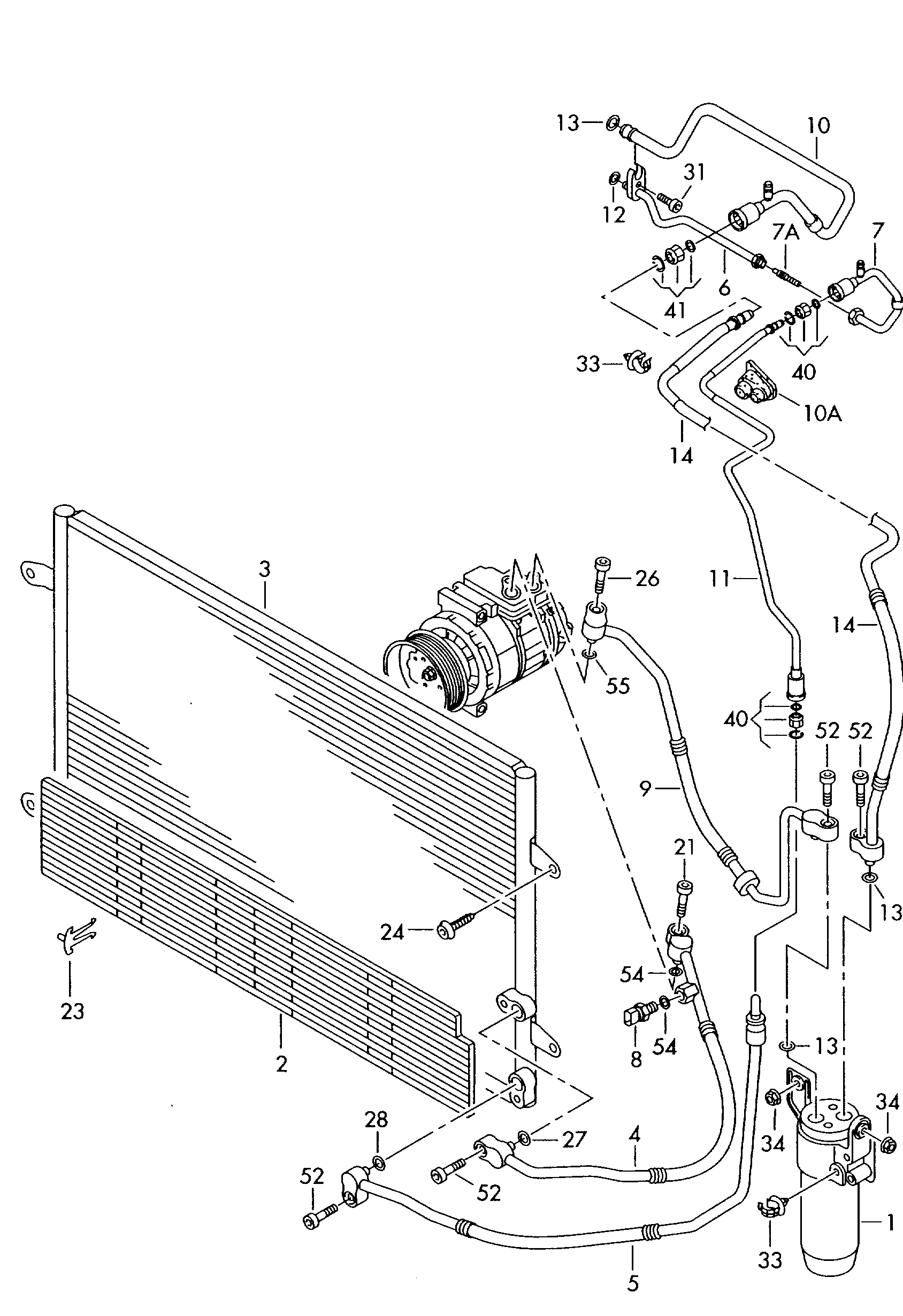

Refrigerant hose

【4】3D0260701BK Hose, refrigerant Compressor-refrigerant Condenser)

【4】3D0260701BM Hose, refrigerant Compressor-refrigerant Condenser)

【9】3D0260707AA Coolant hose Tank Air compressor)

【5】3D0260711AA Pipe-refrigerant

【11】3D0260711P Pipe-refrigerant

【14】3D0260740K Hose, refrigerant Tank Evaporator)

【28】3D0260749C Seal ring

【1】3D0820189D A/C DRYER/W204

【3】3D0820411G CONDENSER/718 BOXTER

【2】3D0820746 Grille-protector Condenser, a/c

【33】3D0820755A BRKT-HOSE

【23】3D0867646 CLIP

【8】3D0959126D Sensor assy-pressure

【6】3D1260709 Pipe-refrigerant

【7】3D1260710B Pipe-refrigerant Condenser-air Vaporizer)

【10】3D1260740C Hose, refrigerant Tank Evaporator)

【54】4E0260749A SEALING RING

【13】4E0260749B SEALING RING

【40】6Q0298260 Servicekit, quick coupling

【41】6Q0298260A Servicekit, quick coupling

【55】8E0260749C SEALING RING

【7A】8E0820177 VALVE ASSY-EXPANSION

【34】N01508210 Nut, hexagon

【21】N0903168 Six angle combined bolt

【52】N10414402 Bolt, hexagon

【24】N90817003 Bolt, hexagon no.1

【31】N91021403 BOLT
