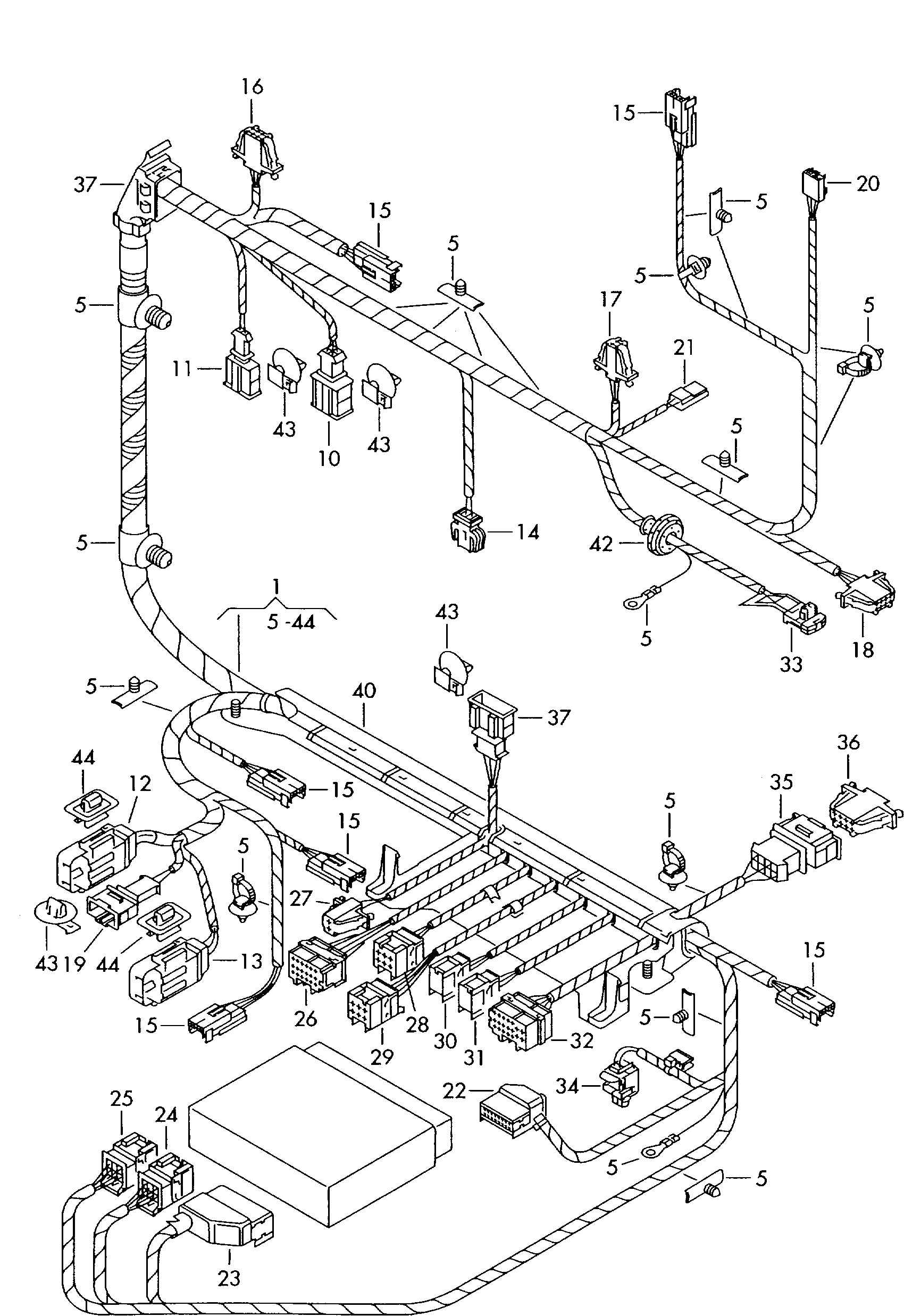

Wiring harness, for power adjust seat with memory switch, seat ventilation and/or massage function

【21】1C0973119B Receptacle, flat contact

【44】1J0937510A Bracket, connector

【19】1J0972712 Plug cap flat

【18】1J0972722 Adapter, flat contact socket

【36】1J0972724 Flat contact case/interlock

【35】1J0972734 Socket-flat contact

【27】1J0972771 Housing-flat

【42】311611743 GROMMET

【15】3B0959743 The housing of the flat contact is equipped with contact interlock device:

【11】3B0972712 Flat plug cap

【17】3B0972722 Receptacle, flat contact

【16】3B0972724 Housing-flat

【10】3B0972732 Socket-flat contact

【37】3B0972734 Socket-flat contact

【43】3D0971830F Bracket, flat plug

【22】4A0972883B The housing of the flat contact is equipped with contact interlock attachment fresh air and heatin

【20】4B0973605 Socket assy-steering wheel

【30】6Q0937702 Housing-flat

【31】6Q0937702B Housing-flat

【24】6Q0937711 Housing-flat

【28】6Q0937711A Housing-flat

【29】6Q0937711B Housing-flat

【25】6Q0937711E Housing-flat

【32】6Q0937713 Flat contact casea

【26】6Q0937714 The housing of the flat contact is equipped with contact interlock device connector fresh air and

【12】6X0972783 Socket-flat contact

【13】6X0972783A Receptacle, flat contact Connector W/slide ring Ring-callback

【14】893971632 Socket-flat contact

【33】8T0972571B Shroud-flat contact w/cable
