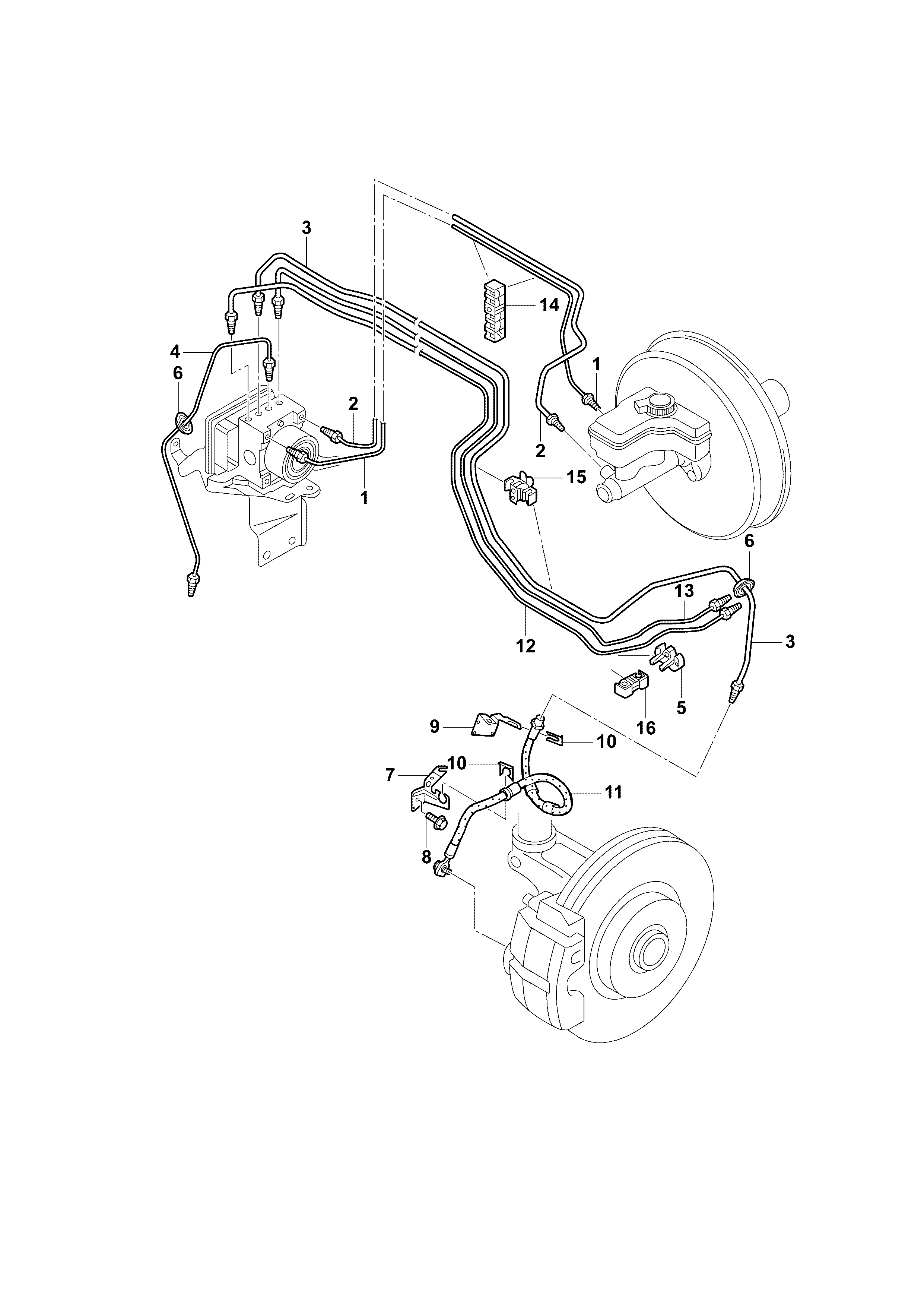

HOSE-BRAKE RR

【10】191611715 BRKT-HOSE

【6】1KD611751 GROMMET

【16】3QF611797A BRKT,BRAKEPIPE

【7】3QF611841B Bracket, brake hose

【7】3QF611842B Bracket, brake hose

【3】3QF614723 Tube-brake from hydraulic to hose

【4】3QF614724 Tube-brake from hydraulic to hose

【4】3QF614724C Tube-brake from hydraulic to hose

【12】3QF614725 Pipe, brake from hydraulic to separator

【13】3QF614726 Pipe, brake from hydraulic to separator

【13】3QF614726C Pipe, brake from hydraulic to separator

【1】3QF614739 Tube, from master cylinder to hydraulic unit

【1】3QF614739C Tube, from master cylinder to hydraulic unit

【2】3QF614740 Tube, from master cylinder to hydraulic unit

【2】3QF614740C Tube, from master cylinder to hydraulic unit

【9】5Q0611845B Bracket, brake hose

【9】5Q0611846B Bracket, brake hose

【14】5QD611797 BRKT,BRAKEPIPE

【15】5QD611797D BRKT,BRAKEPIPE

【5】6RD611853 Spacer sleeve

【8】N10703001 Bolt, hex. flange
