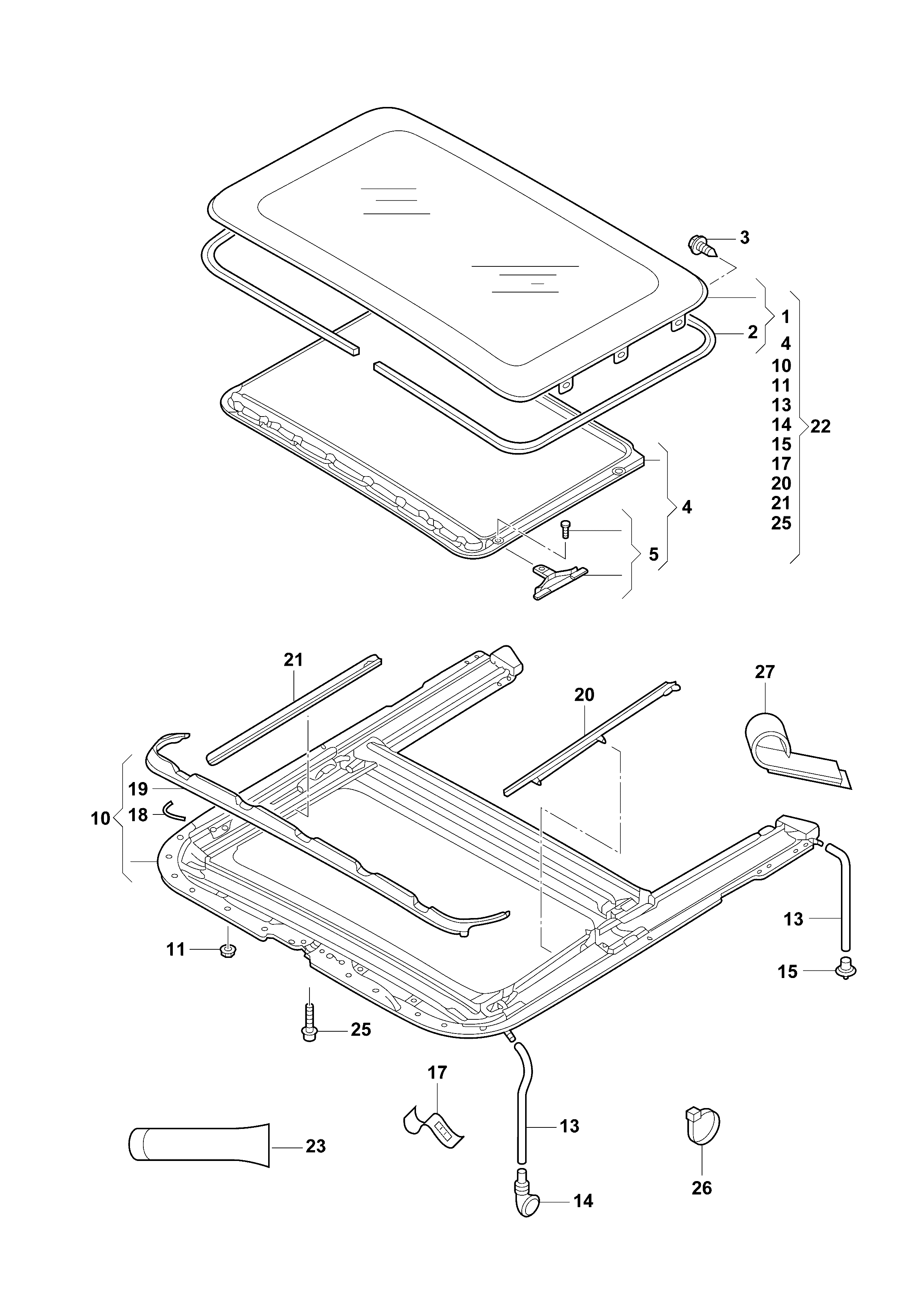

Frame, for sliding roof opening, with boot

【15】1K0877236 VALVE,DRAIN

【17】1K6877244 BRKT-HOSE

【18】1T0877695 Spg clip

【10】3T0877049 Frame, sliding-valgus mechanism

【13】3T0877201A HOSE-DRAIN

【4】3T08772552AV Frame, for slide roof opening, with boot

【19】3T0877651 Plate, windshield washer

【13】3T5877203A HOSE-DRAIN

【5】4B0877165 Slider:

【27】7H0843969A BRKT-HOSE

【3】8D0877721C Bolt, self-locking

【25】8D9877721 Bolt, hexagon

【20】8D9877781 SHIELD-DUST

【20】8D987778101C Boot

【21】8D9877782 SHIELD-DUST

【21】8D987778201C Boot

【1】8E0877071B Lid, sliding glass roof

【14】8E0877242 DRAIN TUBE

【2】8E0877297 Grommet

【23】GCN000450Z3 Grease

【26】N0209022 Cable strap
