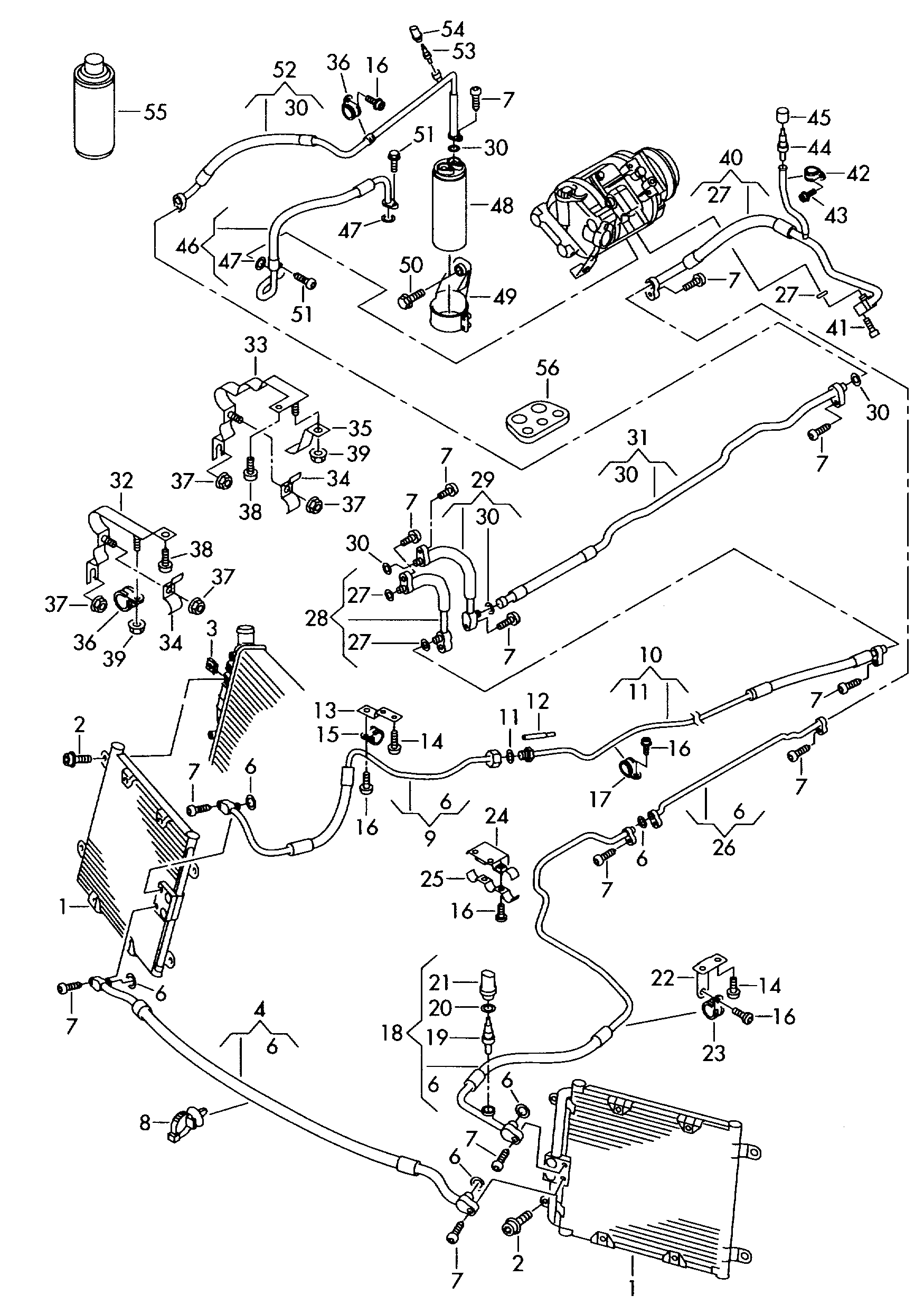

CONDENSER/718 BOXTER

【45】357820809C Cap, guard

【54】3C0820231 Cap, guard

【36】3D0971838N Cable strap\\nGear-fan\\nFor hole/material thickness:

【32】420260419E BRACKET-ENGINE SUPP*

【40】420260701D Refrigerant hose:

【26】420260702C Pipe-refrigerant:

【18】420260704C Pipe-refrigerant

【4】420260705A Hose, refrigerant

【46】420260707A REFRIGERANT HOSE

【52】420260708A REFRIGERANT PIPE

【10】420260709A Pipe-refrigerant\\nCondenser-air\\nVaporizer)

【9】420260710 Pipe, air condenser

【28】420260711 Pipe-refrigerant

【31】420260740B Pipe-refrigerant

【29】420260741 Pipe-refrigerant

【18】423260704B Pipe-refrigerant

【27】4E0260749A SEALING RING

【6】4E0260749B SEALING RING

【48】4F0820191B A/C DRYER/W204

【21】4H0959126 Pressure sensor

【20】7H0820896 SEAL

【19】8A0820855AA Valve> high voltage switch> safety switch

【11】8E0260749 SEAL

【47】8E0260749C SEALING RING

【12】8E0820177 VALVE ASSY-EXPANSION

【53】8E0820855 Valve core

【55】G052300A2 Compressor oil

【17】N0206015 CLIP

【23】N0206267 CLIP

【36】N0206406 CLIP

【15】N0206517 CLIP

【39】N10118105 Nut, self-locking hexagon

【50】N10340902 Six angle combined bolt

【2】N10347003 BOLT

【7】N10347204 Bolt, self-locking

【43】N10405604 Bolt, hexagon

【41】N10414402 Bolt, hexagon

【51】N10415402 Six angle combined bolt

【3】N90342504 Nut-insert

【37】N90488005 Hex nut

【42】N90799801 BAND-BOOT,DRIVE SHAFT OUTER

【8】N90926601 Cable band

【39】N91073301 Hexagon insert\\nScrew, flat

【43】N91084201 Bolt (combination), multitooth cartridge

【38】N91096701 Bolt, hexagon

【14】N91096702 Bolt, hexagon

【47】WHT001247A SEALING RING
