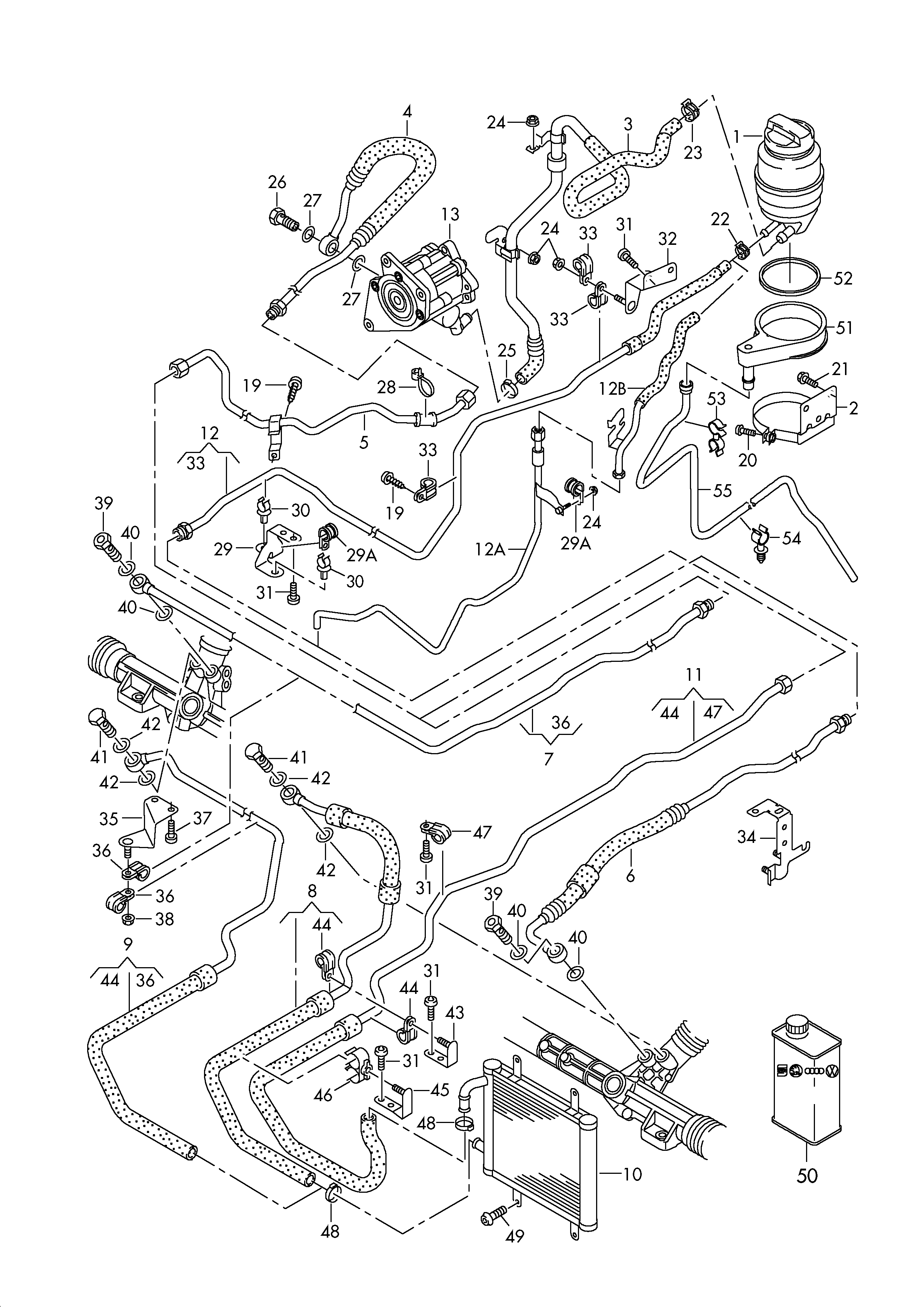

OIL COOLER/AUDI A6/A7/A8

【30】3D0971838N Cable strap\\nGear-fan\\nFor hole/material thickness:

【1】420422371A OIL CONTAINER

【1】420422371B OIL CONTAINER

【2】420422493 BRACKET FOR FLUID RESERVOIR

【5】420422897C PRESSURE PIPE

【11】423422857D Pipe, return

【8】423422891C HOSE-RETURN

【8】423422891D Hose, return\\nPipe turn

【6】423422893H Hose, extension

【39】8E0422529 VALVE-NON RETURN

【50】G004000M2 HYDRAULIC FLUID-1L-GREEN

【50】G004000M7 HYDRAULIC FLUID-1L-GREEN

【50】G004000M8 HYDRAULIC FLUID-1L-GREEN

【42】N0138487 SEALING RING

【40】N0138495 SEALING RING

【38】N01508213 Nut, hexagon

【36】N0206015 CLIP

【47】N0206517 CLIP

【21】N0901486 Six angle combined bolt

【48】N10197601 Clip-hose with ear

【25】N10255601 BAND-BOOT,DRIVE SHAFT OUTER

【19】N10347103 Bolt (combination), hexagon

【54】N10470501 BRKT-HOSE

【20】N10535502 BOLT

【28】N90643701 Band, with bracket, for cable ties:

【23】N90686902 Clip-band

【49】N90737105 Bolt, hexagon

【22】N90770201 Clip-band

【41】WHT000507 Bolt, w/hole

【37】WHT005227 Bolt, hexagon
