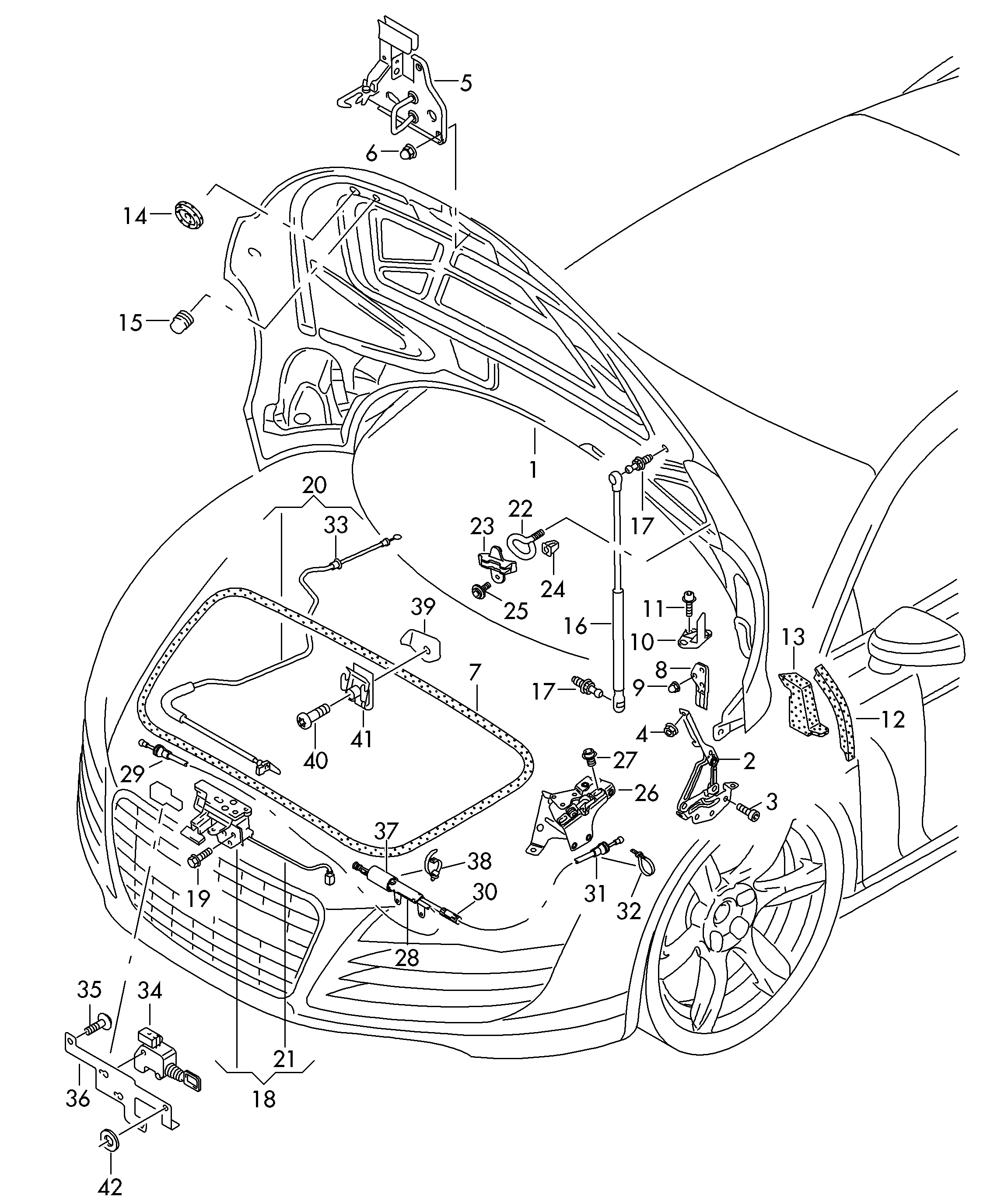

LOCK ASSY, BONNET

【33】1K0823591B GROMMET

【17】1T0827439A Ball pin

【38】1Y0971838 Cable strap

【1】420823021A Cover, fr. hatch

【23】420823203 BRACKET,HARNESS

【23】420823204 BRACKET,HARNESS

【2】420823302B LOCK ASSY, BONNET

【16】420823359 GAS SPRING VW TIGUAN

【8】420823481 Bumper kit

【10】420823499 Stopper-buffer, adjustable

【10】420823500 Stopper-buffer, adjustable

【18】420823509A Lock, hatch

【29】420823530 CABLE ASSY

【30】420823531 CABLE ASSY

【28】420823543A CABLE ASSY

【26】420823655 Lock, position:

【13】420823721 SEALING GASKET

【13】420823722 SEALING GASKET

【12】420823733 SEALING GASKET

【39】423823479 Steel angle

【20】423823530 Cable, hatch lock

【15】4B0823481 Bumper kit

【22】4E0823197A Latch:

【31】4E0823539 GASKET WASHER FLUID TANK

【5】4F0823480B Catch hook

【21】4F0953236 Switch assy-micro

【37】811971790B Tube-foam

【14】893803593A SPARE PART

【3】N0195306 BOLT / SCHRAUBE

【32】N0209022 Cable strap

【40】N10473203 Bolt (combination), hexagon

【41】N90356203 Nut-insert

【27】N90737105 Bolt, hexagon

【19】N90955801 Bolt, self-lock, hex

【25】N90974701 Bolt, hexagon no.1

【24】N90994601 Expanding nut

【35】N91054001 Bolt (combined), with hexagon insert

【9】WHT001308 Nut-self lock
