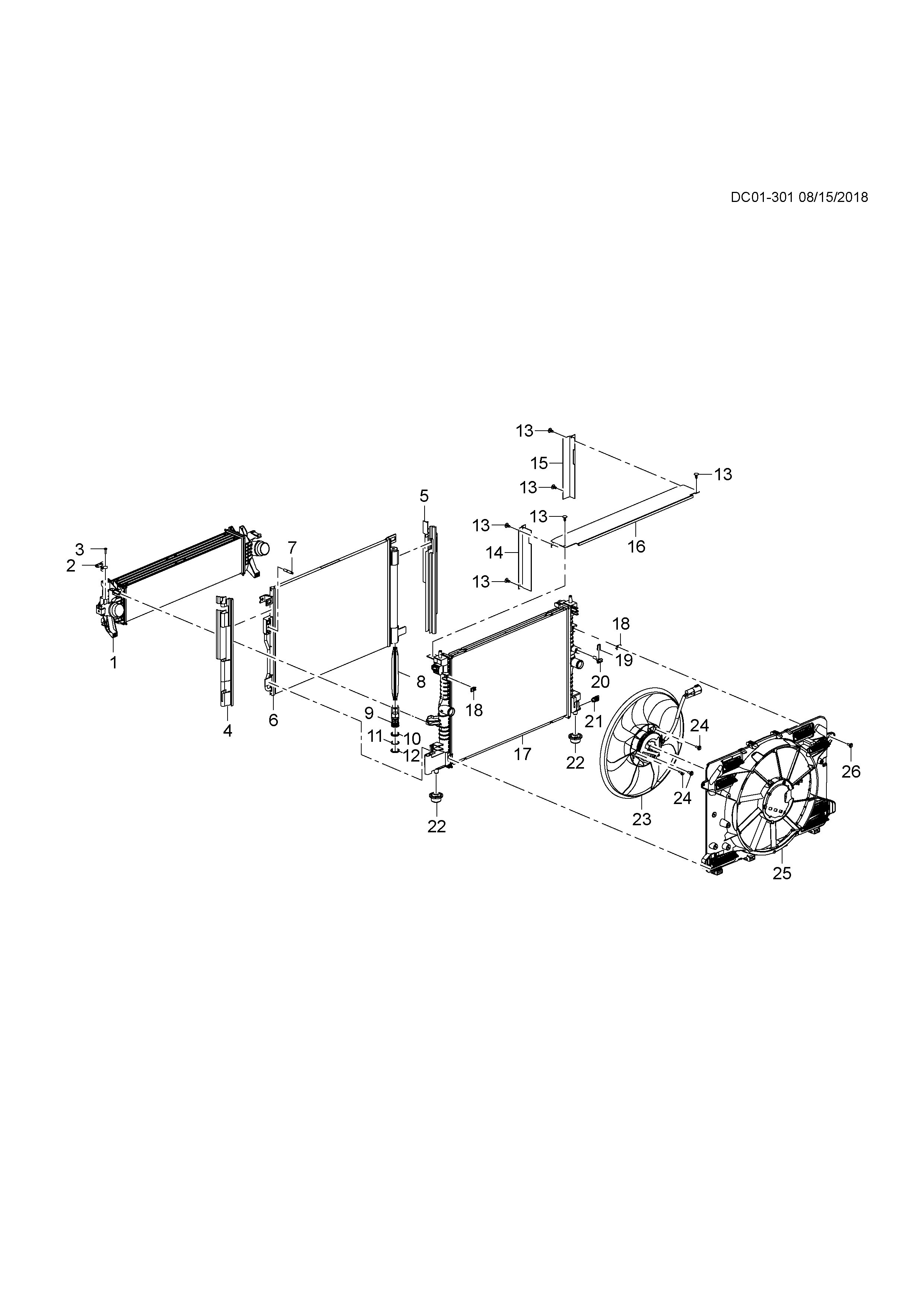

Intercooler assy

【013】10121502 Cap set, intake manifold (2 pieces, pull up to 41.22) (1 piece) (black) (for 6.25 hole) (5.8 outer d

【018】11507067 Nut (M6X1.0) (6 ), radiator mounting plate

【007】11602064 Bolt, a/c condenser stud

【026】11609540 Bolt (M9) (M6X1X20) (6 )

【003】11611226 Bolt, radiator (M5X1.8X20 mm) (10.240)

【002】12694431 Sensor assy-turbo

【021】23444086 Cock assy-radiator drain

【020】55497116 Sensor, eng coolant temperature

【019】55555982 Sensor assy-coolant temperature

【025】84109931 Shroud assy, eng cooling fan

【022】84110133 Insulator, radiator lower

【016】84199029 PLATE, RADIATOR

【004】84199030 Deflector (l rear), radiator air

【014】84199031 Deflector (front), radiator air side

【015】84199033 Deflector, radiator air side (front), rh/lh

【023】84250164 Motor-engine cooling fan (w/fan blade)

【005】84418803 Deflector (r), radiator air

【017】84418804 Radiator, (incl 18-21)

【006】84638451 Condenser, air conditioner (incl. 7-9,11, 12)

【023】85537378 Motor, engine cooling fan (LIN 400W motor w/fan blade)
