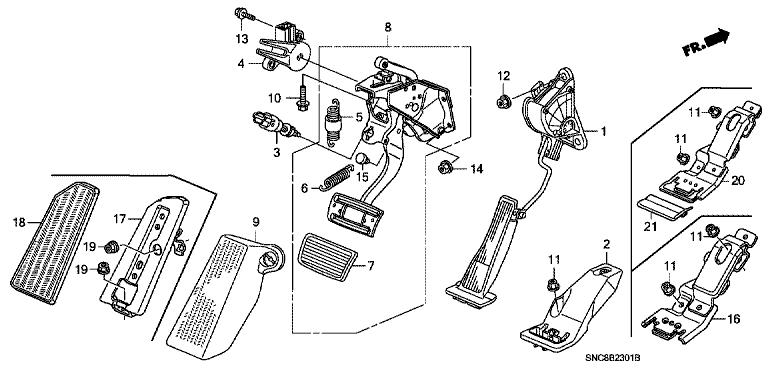

PEDAL ASSY-BRAKE

【1】17800SNBG02 PEDAL ASSY-ACCELERATOR

【1】17800SNBG71 PEDAL ASSY-ACCELERATOR

【16】17818SNBG01 Stopper, acceleration stroke

【20】17818SNBG71 Stopper, acceleration stroke

【21】17820SNAA72 Clip, accelerator pedal

【3】36750SMA003 SW ASSY,STOP&CRUI

【15】46505SA5000 PAD,PEDAL STOPPER

【5】46530SNAA01 Spring assy-pedal return

【7】46545S84A81 Pad, pedal

【17】46991SNBG00 BRACKET

【18】46992SNBG01 BRACKET

【10】90104SFE003 BOLT,FLANGE

【11】90301SP0003 NUT, PAINT CUTTING, 6MM

【12】90361S3C003 NUT, PAINT CUTTING, 8MM

【19】90361SV4003 NUT, PAINT CUTTING, 6MM

【14】9405008080 Nut, flange 8mm
