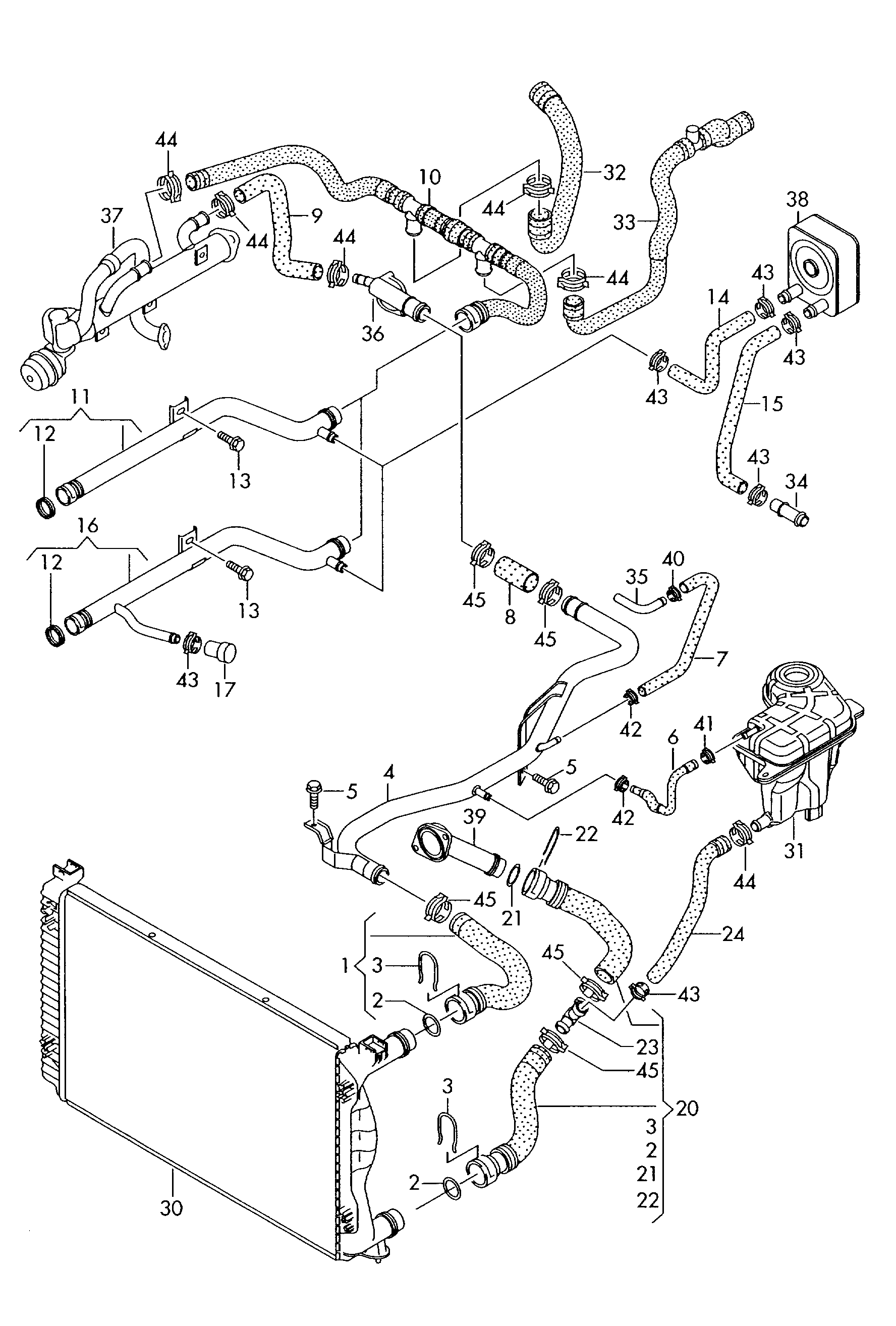

WATER HOSE

【12】06B121687 SEALING RING

【22】1J0121142 Spring, detent

【17】1J0121324 EXPANSION PLUG-65MM M271

【41】4B0422379 Clip-band

【3】4E0121142 Spring, detent

【2】4E0121666 SEAL

【20】4F0121055P Radiator hose

【6】4F0121107N HOSE, VENTILATION

【24】4F0121109S HOSE

【13】N0102279 Bolt, self-locking, hexagon

【5】N10171102 BOLT

【40】N90686701 Clip-band

【43】N90686901 Clip-band

【44】N90687001 Clip-band

【45】N90687201 Clip-band

【23】N90692901 Nipple

【21】N90765301 SEAL

【42】N90770201 Clip-band
