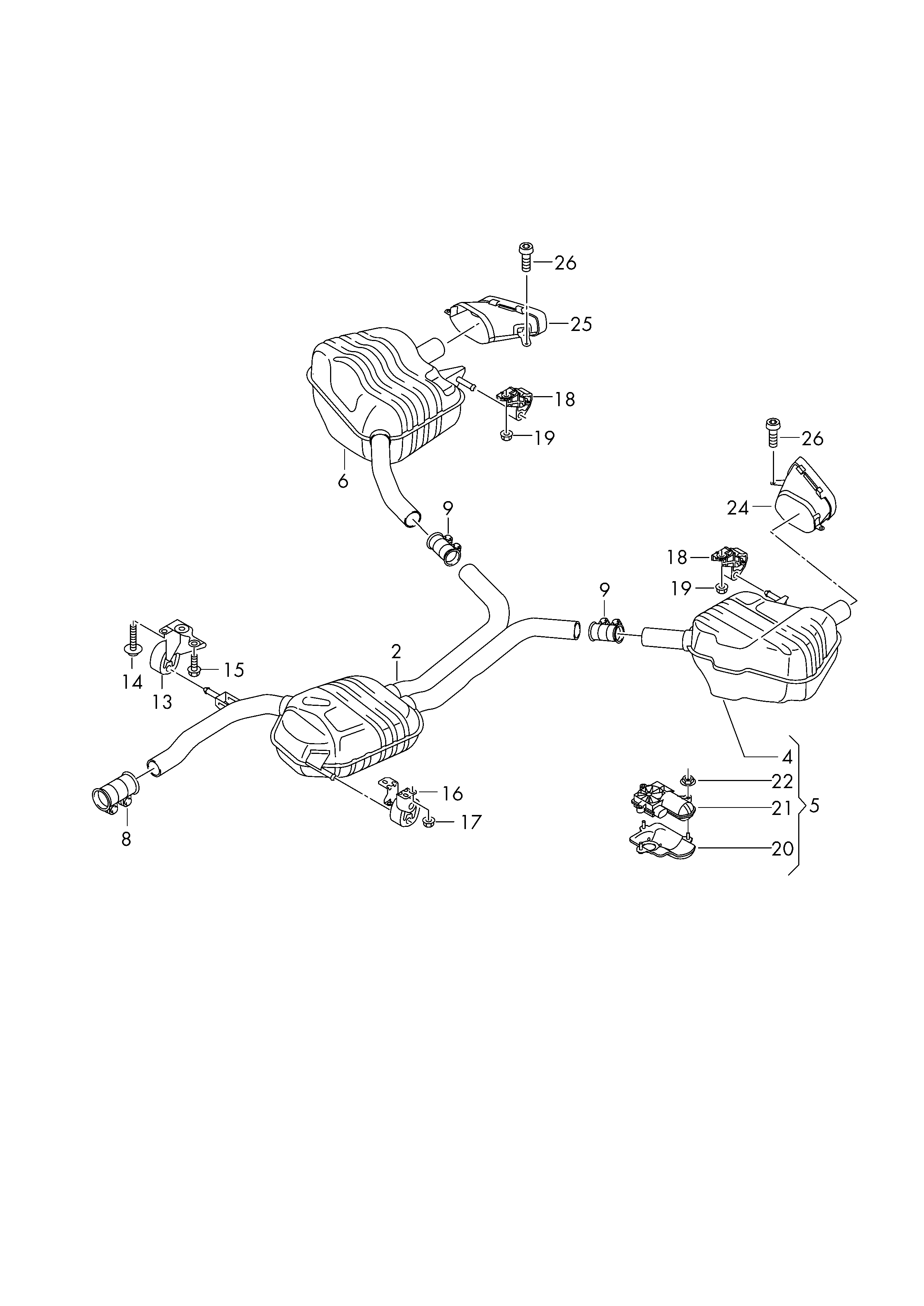

Muffler assy-rr

【9】1K0253141L 1K0253141E

【8】1K0253141P 1K0253141E

【13】4G0253144B BRACKET-ENGINE SUPP*

【2】4G0253409BB Muffler ctr

【5】4G0253609CJ Muffler & rr Damper assy-exhaust D-24.11.2014

【24】4G0253825N Deflector, exhaust tail pipe

【25】4G0253825P Deflector, exhaust tail pipe

【25】4G0253826A Deflector, exhaust tail pipe D-16.01.2017

【21】4H0133246J Servo, waste door

【16】8K0253144F BRACKET-ENGINE SUPP*

【18】8K0253144M BRACKET-ENGINE SUPP*

【17】N0195307 BOLT

【22】N10597201 Nut, self-locking hexagon

【19】N90348411 Hex nut

【14】N91165402 Bolt, multi-tooth flange-inner:

【26】WHT007677 Bolt, hexagon
