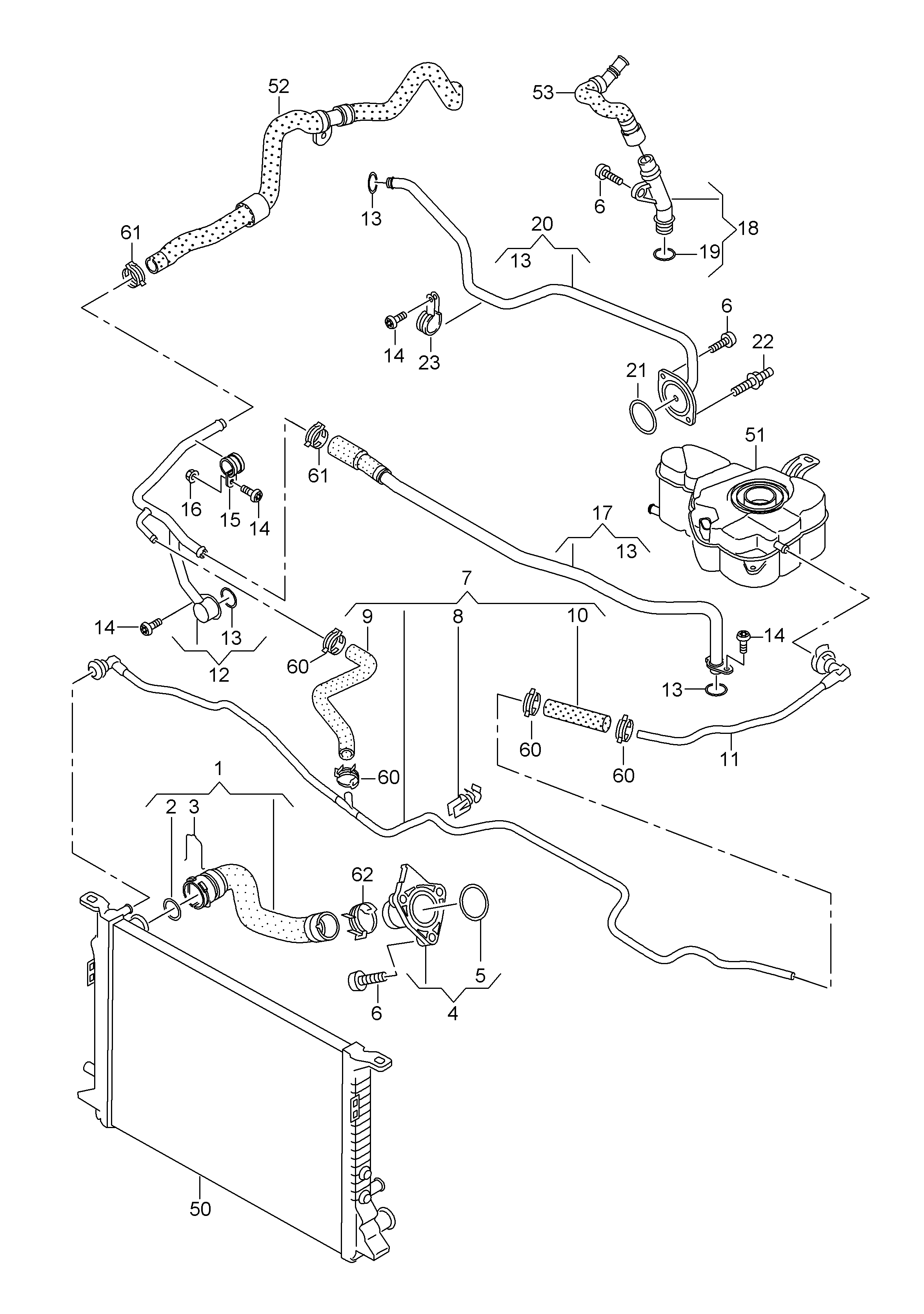

WATER HOSE

【5】079121043A Grommet

【18】079121075E Coolant pipe

【17】079121083H Coolant pipe

【12】079121085N Coolant pipe

【4】079121137M Joint, coolant

【3】4E0121142 Spring, detent

【2】4E0121666 SEAL

【11】4H0121081AA BREATHER-AIR

【7】4H0121081AT BREATHER-AIR

【1】4H0121101AD WATER HOSE

【10】4H0121107J HOSE, VENTILATION

【16】N01508210 Nut, hexagon

【6】N10124306 Hexagon insert Screw, flat

【14】N10405604 Bolt, hexagon

【60】N90686701 Clip-band

【61】N90686902 Clip-band

【21】N90912501 SEAL

【62】N90926501 Clip-band

【22】N91148001 Bolt, double hex.

【13】WHT001011 SEAL

【19】WHT005652 SEAL
