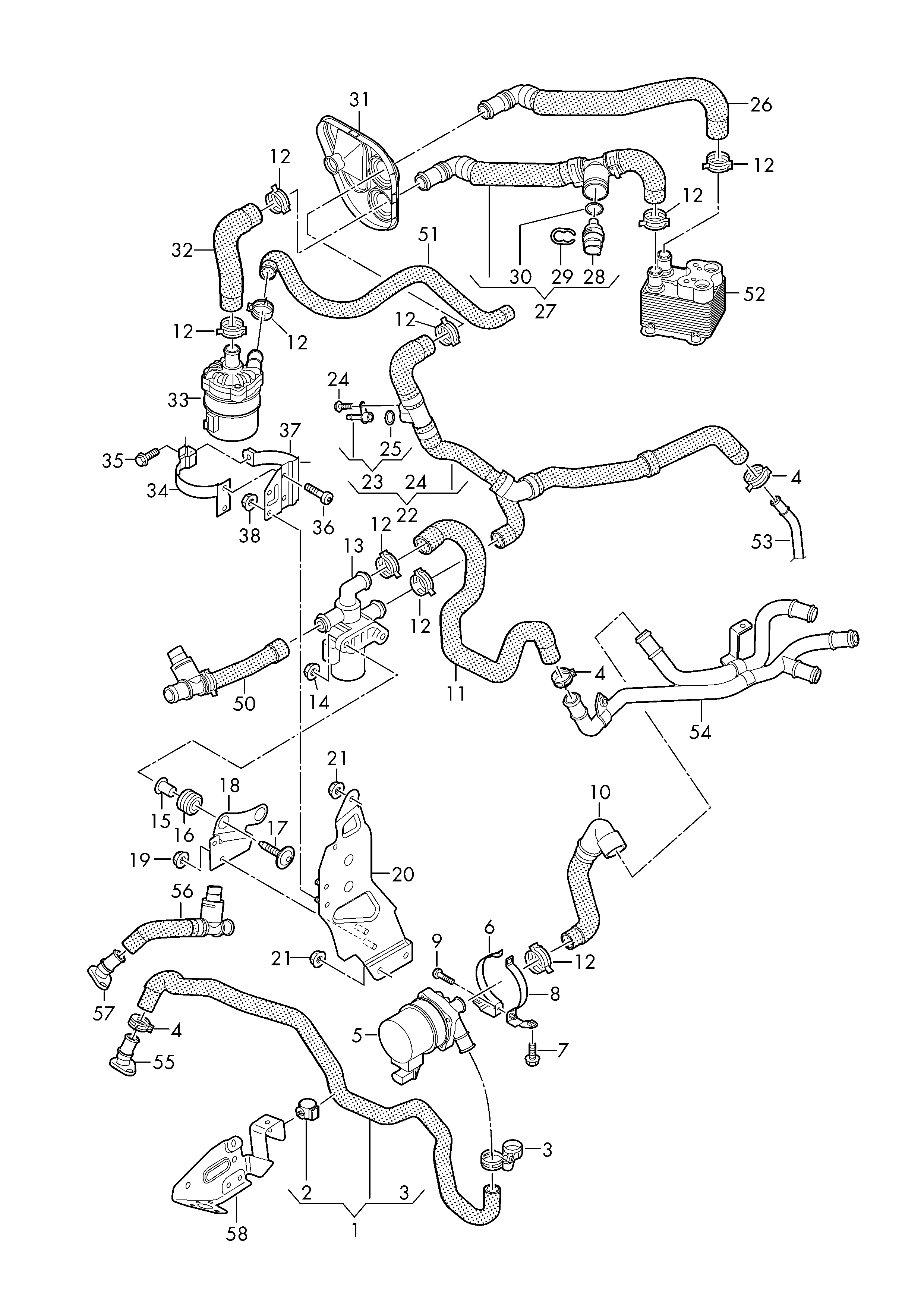

Bracket, auxiliary water pump

【29】032121142 Spring, detent

【28】06A919501A COOLANT,TEMP SENR/SEAT/SKDA/VW

【23】079919525M Sensor assy-temp Sensor, coolant temperature

【13】1T0820036D Valve-solenoid

【3】4F0422379A CLIP

【15】4H0129381 BUSH

【32】4M0121545E Coolant hose

【16】4N0129669B Decoupling element

【5】4N0965567 Water pump

【33】8R0965567 Water pump

【38】N01508210 Nut, hexagon

【36】N10405604 Bolt, hexagon

【17】N10442204 Bolt (combination), hexagon

【35】N10653301 BOLT

【7】N10662001 BOLT

【24】N10721401 Bolt, oval head pnl

【19】N10737001 NUT

【2】N10793901 BRKT-HOSE

【30】N90316801 SEAL

【4】N90686902 Clip-band

【12】N90687001 Clip-band

【9】N90969901 Bolt, hexagon insert

【25】WHT002287B SEAL
